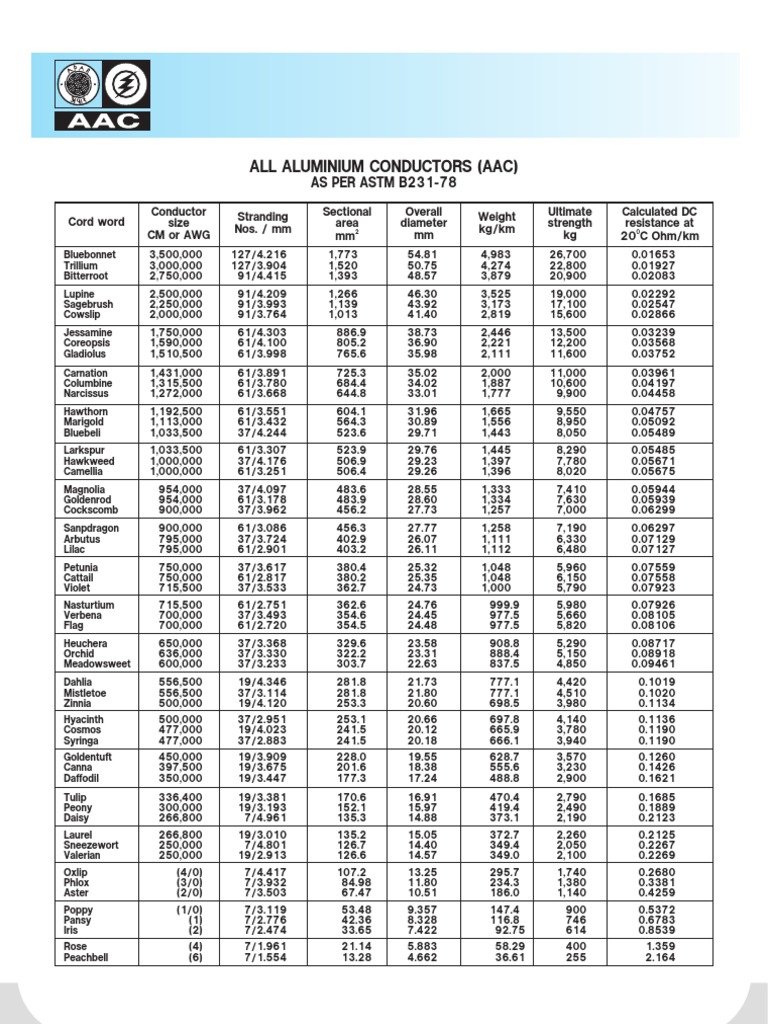

AAC
ALL ALUMINIUM CONDUCTORS (AAC)
AS PER ASTM B231-78
Conductor Stranding Sectional Overall Weight Ultimate Calculated DC
Cord word size area diameter strength resistance at
Nos. / mm kg/km
CM or AWG mm2 mm kg 200C Ohm/km
Bluebonnet 3,500,000 127/4.216 1,773 54.81 4,983 26,700 0.01653
Trillium 3,000,000 127/3.904 1,520 50.75 4,274 22,800 0.01927
Bitterroot 2,750,000 91/4.415 1,393 48.57 3,879 20,900 0.02083
Lupine 2,500,000 91/4.209 1,266 46.30 3,525 19,000 0.02292
Sagebrush 2,250,000 91/3.993 1,139 43.92 3,173 17,100 0.02547
Cowslip 2,000,000 91/3.764 1,013 41.40 2,819 15,600 0.02866
Jessamine 1,750,000 61/4.303 886.9 38.73 2,446 13,500 0.03239
Coreopsis 1,590,000 61/4.100 805.2 36.90 2,221 12,200 0.03568
Gladiolus 1,510,500 61/3.998 765.6 35.98 2,111 11,600 0.03752
Carnation 1,431,000 61/3.891 725.3 35.02 2,000 11,000 0.03961
Columbine 1,315,500 61/3.780 684.4 34.02 1,887 10,600 0.04197
Narcissus 1,272,000 61/3.668 644.8 33.01 1,777 9,900 0.04458
Hawthorn 1,192,500 61/3.551 604.1 31.96 1,665 9,550 0.04757
Marigold 1,113,000 61/3.432 564.3 30.89 1,556 8,950 0.05092
Bluebeli 1,033,500 37/4.244 523.6 29.71 1,443 8,050 0.05489
Larkspur 1,033,500 61/3.307 523.9 29.76 1,445 8,290 0.05485
Hawkweed 1,000,000 37/4.176 506.9 29.23 1,397 7,780 0.05671
Camellia 1,000,000 61/3.251 506.4 29.26 1,396 8,020 0.05675
Magnolia 954,000 37/4.097 483.6 28.55 1,333 7,410 0.05944
Goldenrod 954,000 61/3.178 483.9 28.60 1,334 7,630 0.05939
Cockscomb 900,000 37/3.962 456.2 27.73 1,257 7,000 0.06299
Sanpdragon 900,000 61/3.086 456.3 27.77 1,258 7,190 0.06297
Arbutus 795,000 37/3.724 402.9 26.07 1,111 6,330 0.07129
Lilac 795,000 61/2.901 403.2 26.11 1,112 6,480 0.07127
Petunia 750,000 37/3.617 380.4 25.32 1,048 5,960 0.07559
Cattail 750,000 61/2.817 380.2 25.35 1,048 6,150 0.07558
Violet 715,500 37/3.533 362.7 24.73 1,000 5,790 0.07923
Nasturtium 715,500 61/2.751 362.6 24.76 999.9 5,980 0.07926
Verbena 700,000 37/3.493 354.6 24.45 977.5 5,660 0.08105
Flag 700,000 61/2.720 354.5 24.48 977.5 5,820 0.08106
Heuchera 650,000 37/3.368 329.6 23.58 908.8 5,290 0.08717
Orchid 636,000 37/3.330 322.2 23.31 888.4 5,150 0.08918
Meadowsweet 600,000 37/3.233 303.7 22.63 837.5 4,850 0.09461
Dahlia 556,500 19/4.346 281.8 21.73 777.1 4,420 0.1019
Mistletoe 556,500 37/3.114 281.8 21.80 777.1 4,510 0.1020
Zinnia 500,000 19/4.120 253.3 20.60 698.5 3,980 0.1134
Hyacinth 500,000 37/2.951 253.1 20.66 697.8 4,140 0.1136
Cosmos 477,000 19/4.023 241.5 20.12 665.9 3,780 0.1190
Syringa 477,000 37/2.883 241.5 20.18 666.1 3,940 0.1190
Goldentuft 450,000 19/3.909 228.0 19.55 628.7 3,570 0.1260
Canna 397,500 19/3.675 201.6 18.38 555.6 3,230 0.1426
Daffodil 350,000 19/3.447 177.3 17.24 488.8 2,900 0.1621
Tulip 336,400 19/3.381 170.6 16.91 470.4 2,790 0.1685
Peony 300,000 19/3.193 152.1 15.97 419.4 2,490 0.1889
Daisy 266,800 7/4.961 135.3 14.88 373.1 2,190 0.2123
Laurel 266,800 19/3.010 135.2 15.05 372.7 2,260 0.2125
Sneezewort 250,000 7/4.801 126.7 14.40 349.4 2,050 0.2267
Valerian 250,000 19/2.913 126.6 14.57 349.0 2,100 0.2269
Oxlip (4/0) 7/4.417 107.2 13.25 295.7 1,740 0.2680
Phlox (3/0) 7/3.932 84.98 11.80 234.3 1,380 0.3381
Aster (2/0) 7/3.503 67.47 10.51 186.0 1,140 0.4259
Poppy (1/0) 7/3.119 53.48 9.357 147.4 900 0.5372
Pansy (1) 7/2.776 42.36 8.328 116.8 746 0.6783
Iris (2) 7/2.474 33.65 7.422 92.75 614 0.8539
Rose (4) 7/1.961 21.14 5.883 58.29 400 1.359
Peachbell (6) 7/1.554 13.28 4.662 36.61 255 2.164
6
AAC
ALL ALUMINIUM CONDUCTORS (AAC)
AS PER BS 215 : Part 1 : 1970
Nominal Stranding Sectional Approxi- Approxi- Calculated Calculated
aluminium and wire area mate mate D. C. resistance breaking
area diameter overall mass per at 200 C load
diameter km per km
(1) (2) (3) (4) (5) (6) (7)
mm2 mm mm2 mm kg Ohm kN
22 7/2.06 23.33 6.18 64 1.227 3.99
50 7/3.10 52.83 9.30 145 0.541 9 8.28
60 7/3.40 63.55 10.20 174 0.450 5 9.90
100 7/4.39 106.0 13.17 290 0.270 2 16.00
150 19/3.25 157.6 16.25 434 0.182 5 25.70
200 19/3.78 213.2 18.90 587 0.134 9 32.40
250 19/4.22 265.7 21.10 731 0.108 3 40.40
300 19/4.65 322.7 23.25 888 0.089 16 48.75
400 37/3.78 415.2 26.46 1145 0.069 44 63.10
ALL ALUMINIUM CONDUCTORS (AAC)
AS PER IS 398 : Part 1 : 1996
Nominal Stranding Sectional Approxi- Approxi- Calculated Calculated
aluminium and wire area mate mate D. C. resistance breaking
area diameter overall mass per at 200 C load
diameter km per km
(1) (2) (3) (4) (5) (6) (7)
mm2 mm mm2 mm kg Ohm kN
25 7/2.21 26.85 6.63 74 1.096 4.52
50 7/3.10 52.83 9.30 145 0.552 5 8.25
100 7/4.39 106.0 13.17 290 0.275 2 15.96
150 19/3.18 150.9 15.90 415 0.194 2 23.28
240 19/3.99 237.6 19.95 654 0.123 5 35.74
300 19/4.65 322.7 23.25 888 0.091 07 48.74
ALL ALUMINIUM CONDUCTORS (AAC)
AS PER DIN 48201 Blatt 5 - 1965
Conductor Standing Calculated sectional Overall Ultimate Weight Calculated electrical
size No. / mm area diameter strength kg/km resistance at 200 C
mm2 mm2 mm kP Ohm/km
16 7/1.7 15.89 5.1 290 44 1.798
25 7/2.1 24.25 6.3 425 67 1.177
35 7/2.5 34.36 7.5 585 94 0.831
50 7/3 49.48 9.0 810 135 0.577
50 19/1.8 48.36 9.0 860 133 0.596
70 19/2.1 65.82 10.5 1,150 181 0.438
95 19/2.5 93.27 12.5 1,595 256 0.309
120 19/2.8 117.0 14.0 1,910 322 0.246
150 37/2.25 147.1 15.7 2,570 406 0.197
185 37/2.5 181.6 17.5 3,105 501 0.160
240 61/2.25 242.5 20.2 4,015 670 0.120
300 61/2.5 299.4 22.5 4,850 827 0.0969
400 61/2.89 400.1 26.0 6,190 1,105 0.0730
500 61/3.23 499.8 29.1 7,600 1,381 0.0580
625 91/2.96 626.2 32.6 9,690 1,733 0.0462
800 91/3.35 802.1 36.8 12,055 2,219 0.0361
1,000 91/3.74 999.7 41.1 14,845 2,766 0.0290
