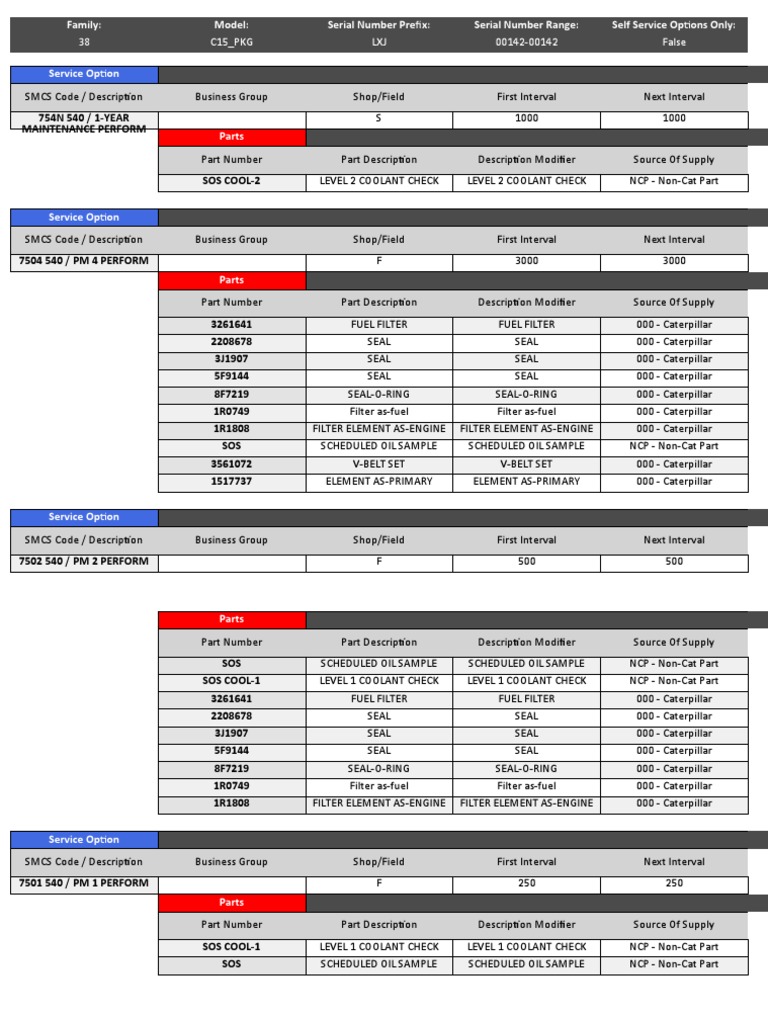

Family: Model: Serial Number Prefix: Serial Number Range: Self Service Options Only:

38 C15_PKG LXJ 00142-00142 False

Service Option
SMCS Code / Description Business Group Shop/Field First Interval Next Interval
754N 540 / 1-YEAR S 1000 1000
MAINTENANCE PERFORM
Parts
Part Number Part Description Description Modifier Source Of Supply
SOS COOL-2 LEVEL 2 COOLANT CHECK LEVEL 2 COOLANT CHECK NCP - Non-Cat Part

Service Option
SMCS Code / Description Business Group Shop/Field First Interval Next Interval
7504 540 / PM 4 PERFORM F 3000 3000
Parts
Part Number Part Description Description Modifier Source Of Supply
3261641 FUEL FILTER FUEL FILTER 000 - Caterpillar
2208678 SEAL SEAL 000 - Caterpillar
3J1907 SEAL SEAL 000 - Caterpillar
5F9144 SEAL SEAL 000 - Caterpillar
8F7219 SEAL-O-RING SEAL-O-RING 000 - Caterpillar
1R0749 Filter as-fuel Filter as-fuel 000 - Caterpillar
1R1808 FILTER ELEMENT AS-ENGINE FILTER ELEMENT AS-ENGINE 000 - Caterpillar
SOS SCHEDULED OIL SAMPLE SCHEDULED OIL SAMPLE NCP - Non-Cat Part
3561072 V-BELT SET V-BELT SET 000 - Caterpillar
1517737 ELEMENT AS-PRIMARY ELEMENT AS-PRIMARY 000 - Caterpillar

Service Option
SMCS Code / Description Business Group Shop/Field First Interval Next Interval
7502 540 / PM 2 PERFORM F 500 500
Parts
Part Number Part Description Description Modifier Source Of Supply
SOS SCHEDULED OIL SAMPLE SCHEDULED OIL SAMPLE NCP - Non-Cat Part
SOS COOL-1 LEVEL 1 COOLANT CHECK LEVEL 1 COOLANT CHECK NCP - Non-Cat Part
3261641 FUEL FILTER FUEL FILTER 000 - Caterpillar
2208678 SEAL SEAL 000 - Caterpillar
3J1907 SEAL SEAL 000 - Caterpillar
5F9144 SEAL SEAL 000 - Caterpillar
8F7219 SEAL-O-RING SEAL-O-RING 000 - Caterpillar
1R0749 Filter as-fuel Filter as-fuel 000 - Caterpillar
1R1808 FILTER ELEMENT AS-ENGINE FILTER ELEMENT AS-ENGINE 000 - Caterpillar

Service Option
SMCS Code / Description Business Group Shop/Field First Interval Next Interval
7501 540 / PM 1 PERFORM F 250 250
Parts
Part Number Part Description Description Modifier Source Of Supply
SOS COOL-1 LEVEL 1 COOLANT CHECK LEVEL 1 COOLANT CHECK NCP - Non-Cat Part
SOS SCHEDULED OIL SAMPLE SCHEDULED OIL SAMPLE NCP - Non-Cat Part
Standard Hours Complexity Description Additional Notes Custom Notes
0.2 1-YEAR MAINTENANCE
PERFORM

Replacement Percentage Quantity Tool? Fluid? Job Part Note


100 1.00 N N

Standard Hours Complexity Description Additional Notes Custom Notes


7.3 PM 4 PERFORM

Replacement Percentage Quantity Tool? Fluid? Job Part Note


100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N

Standard Hours Complexity Description Additional Notes Custom Notes


5.2 PM 2 PERFORM
Replacement Percentage Quantity Tool? Fluid? Job Part Note
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N
100 1.00 N N

Standard Hours Complexity Description Additional Notes Custom Notes


3.9 PM 1 PERFORM

Replacement Percentage Quantity Tool? Fluid? Job Part Note


100 1.00 N N
100 1.00 N N
Marketing Information Service Instruction

Marketing Information Service Instruction

Marketing Information Service Instruction


Marketing Information Service Instruction
