62IN SERIES

Introduction

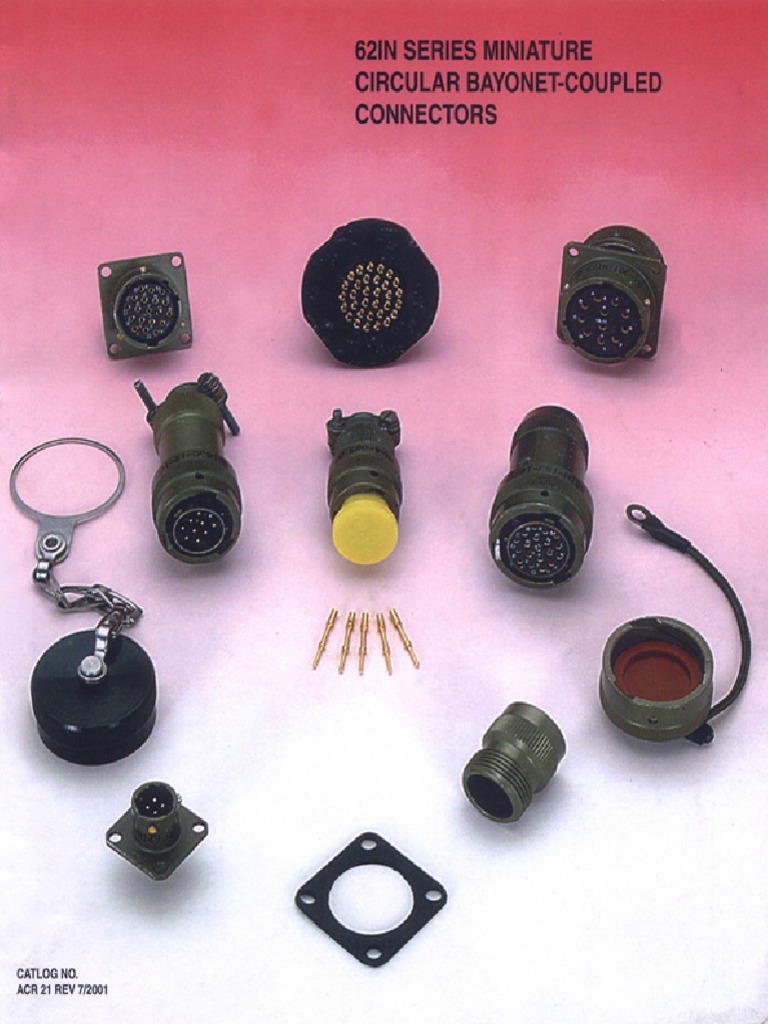

Amphetronix 62IN series connectors are general purpose, environment

resistant, miniature circular connectors with three-point bayonet-coupling
and five-key polarisation. Designed to meet the requirements of MIL-
C-26482, Series I solder type and British standard BS 9522 F00 17,
these connectors are widely used in applications calling for quick
disconnect connectors.

62IN connectors are intermateable and interchangeable with all MIL-

C-26482 connectors, whether solder or crimp type. These connectors
are used worldwide in military and industrial applications, and are
available in a variety of sizes, styles and configurations.

Amphetronix 62IN series connectors are also approved to Indian

Defence Standard Joint Services Specification JSS50813, certified by
the Electronic Components Standardisation Organisation (LCSO),
Bangalore, India.

Page Contents

1 Introduction
2 General description
2 Specifications
3 Insert orientations
4 Key / Keyway orientations
5 Insert arrangements
6-10 Connector styles
11 Dust covers
12-13 Accessories
14 Specials and deviations
15 Ordering 62IN series connectors

AMPHENOL INTERCONNECT INDIA PVT. LTD. 1

62IN SERIES

General description

Amphetronix 62IN series miniature circular bayonet-coupled solder connectors meet the most critical
application needs. Design versatility and high reliability performance make this series ideal for environmental
sealing.

Shell
Shell hardware is manufactured from aluminium alloy and cadmium plated with an olive drab chromate
finish. This finish has excellent conductivity; it is non-reflecting and corrosion resistant. Black anodised
finish and cadmium-free zinc-cobalt plating are also available. For details, contact factory.
Shell styles consist of wall and box mounting receptacles, jam nut receptacles, cable mounting receptacles
and straight plugs. Connectors are available in 9 shell sizes: 8, 10, 12, 14, 16, 18, 20, 22 and 24.
Positive shell-to-shell keying is provided with keys and keyways in a choice of either normal (N) or any of
the preferred alternate positions: B, C, E and F. This prevents mismating between shells of different
orientations and overcomes the difficulties associated with rotated inserts and standard key / keyway
orientation. In the latter system, damage to inserts or contacts can result if excessive force is used to
engage non-mating pairs.
Spring tension provided by a wave washer in the coupling ring ensures maintenance of inter facial seal
between mating halves.

Insert and grommet

The insert and grommet are moulded from resilient neoprene, offering high dielectric strength and resistance
to oils, gasoline and low temperature. This provides electrical isolation of the contacts in the insert and
excellent moisture sealing.

Contacts
Gold over nickel plated pin and socket contacts are machined from brass and designed for solder
connections. Industrial version crimp contacts are also available on request.

Specifications

Number of contacts 2 thru 61 in discrete steps

Operating temperature -55°C to +125°C
Current rating
Contact size Rated current Test current Potential drop
20 7.5A 7.5A ≤ 55mV
16 13A 13A ≤ 50mV
Voltage rating (max. operating voltage at sea level)
Service rating AC (rms)
I 600V
II 1000V
Insulation resistance ≥ 5000 Mohm
Voltage proof
Service rating Test voltage (rms)
I 1500V
II 2300V
Wire range accomodations
Contact size AWG wire size
20 24, 22 and 20
16 20, 18 and 16

AMPHENOL INTERCONNECT INDIA PVT. LTD. 2

 62IN SERIES

Insert orientations

Normal position of Alternate position of insert Alternate position of insert

insert with pin with socket contacts with pin contacts
contacts (θ counterclockwise) (θ clockwise)
Each diagram shows mating face of insert

Orientation
Insert
Angles in degrees
arrangement
W X Y Z
8-2 58 122 - -
8-3 60 210 - -
8-4 45 - - -
8-33 90 - - -
10-2 - - - -
10-6 90 - - -
10-7 - - - -
10-8 - - - -
12-3 - - 180 -
12-8 90 112 203 292
12-10 60 155 270 295
12-12 - - - -
12-14 - - - -
14-5 40 92 184 273
14-12 43 90 - -
14-15 17 110 155 234
14-19 30 165 315 -
16-8 54 152 180 331
16-23 158 270 - -
16-26 60 - 275 338
18-11 62 119 241 340
18-32 85 138 222 265
20-16 238 318 333 347
20-27 72 144 216 288
20-41 45 126 225 -
22-21 16 135 175 349
22-55 30 142 226 314
24-31 90 225 255 -
24-61 90 180 270 324

AMPHENOL INTERCONNECT INDIA PVT. LTD. 3

62IN SERIES

Key / Keyway orientations

Angles in degrees
Shell
α θ β ϕ
size
N B C E F N B C E F N B C E F N B C E F
8 105 - - 118 82 35 - - 30 50 75 - - 100 75 50 - - 30 45
10 105 85 125 115 85 35 35 35 30 50 75 75 75 100 75 50 50 50 30 45
12 105 89 121 115 85 35 35 35 30 50 75 75 75 100 75 50 50 50 30 45
14 105 91 119 75 120 35 35 35 30 50 75 75 75 100 75 50 50 50 30 35
16 105 93 117 75 120 35 35 35 30 50 75 75 75 100 75 50 50 50 30 35
18 105 95 115 75 120 35 35 35 30 50 75 75 75 100 75 50 50 50 30 35
20 105 95 115 75 120 35 35 35 30 50 75 75 75 100 75 50 50 50 30 35
22 105 97 113 75 120 35 35 35 30 50 75 75 75 75 75 50 50 50 30 35
24 105 97 113 75 120 35 35 35 30 50 75 75 75 100 75 50 50 50 30 35

Shell Angle indegrees Angles shown are with reference to the major key
size ω or keyway. In receptacles, the major keyway
N B C E F always remains fixed in relation to the mounting
8 60 - - 73 47
flange. For B, C, E and F orientations, the three
bayonet locations and associated minor keyways
10 60 40 80 70 50
are rotated completely as shown in the tables. The
12 60 44 76 70 50
accompanying diagram shows a receptacle shell
14 60 46 74 30 75
with keyways. Corresponding key orientations for
16 60 48 72 30 75 a mating plug shell are therefore always clockwise.
18 60 50 70 30 75
20 60 50 70 30 75
22 60 52 68 30 75
24 60 54 68 30 75

AMPHENOL INTERCONNECT INDIA PVT. LTD. 4

 62IN SERIES

Contact Legend
Insert arrangements Symbol
Front face of pin insert or rear of socket insert
illustrated Contact size 16
20

Insert arrangement 8-2 8-3 8-4 8-33 10-2 10-6 10-7 10-8 12-3
Service rating I I I I II I I I II
Number of contacts 2 3 4 3 2 6 7 8 3
Contact size 20 20 20 20 16 20 20 20 16

Insert arrangement 12-8 12-10 12-12 12-14 14-5 14-12 14-15 14-19
Service rating I I I I II I I I
Number of contacts 8 10 12 14 5 4 8 1 14 19
Contact size 20 20 20 20 16 16 20 16 20 20

Insert arrangement 16-8 16-23 16-26 18-11 18-32 20-16

Service rating II I I II I II
Number of contacts 8 1 22 26 11 32 16
Contact size 16 16 20 20 16 20 16

Insert arrangement 20-27 20-41 22-21 22-55 24-31 24-61

Service rating I I II I I I
Number of contacts 27 41 21 55 31 61
Contact size 20 20 16 20 16 20

AMPHENOL INTERCONNECT INDIA PVT. LTD. 5

62IN SERIES

Connector styles
Wall mounting receptacles

Style 50T & 10J

Without termination assemblies All dimensions in mm

Shell B C D E F G L Y X
size Dia Dia Dia threads in inches

8 1.58 20.75 15.09 3.05 11.30 11.02 24.84 12.02 7/16-28 UNEF
10 1.58 23.93 18.26 3.05 11.30 14.17 24.84 14.99 9/16-24 NEF
12 1.58 26.32 20.63 3.05 11.30 17.35 24.84 19.05 11/16-24 NEF
14 1.58 28.70 23.10 3.05 11.30 20.52 24.84 22.23 13/16-20 UNEF
16 1.58 31.07 24.61 3.05 11.30 23.70 24.84 25.40 15/16-20 UNEF
18 1.58 33.45 26.58 3.05 11.30 26.85 24.84 28.58 1 1/16-18 NEF
20 2.03 36.63 29.36 3.05 14.10 30.02 26.62 31.75 1 3/16-18 NEF
22 2.03 39.80 31.75 3.05 14.10 33.15 26.62 34.93 1 5/16-18 NEF
24 2.03 42.98 34.93 3.74 14.99 36.37 26.62 38.10 1 7/16-18 NEF

Note: Serrations / antirotation feature is not provided on shells for 10A, 10E and 10F styles.

Style 10A Style 10E Style 10F Style 10J

With termination assemblies All dimensions in mm

Style 10A Style 10E Style 10F Style 10J
Shell M For cable size
G L G L G H L G L
size thread Z Dia
Dia Dia Dia Dia Dia
in inches min max
8 14.25 41.25 1/2-28 UNEF 14.25 32.54 21.03 3.96 44.76 14.25 46.89 4.28 5.84
10 17.43 41.25 5/8-24 NEF 17.43 32.54 22.63 4.78 44.76 17.43 46.89 5.21 7.93
12 20.60 41.25 3/4-20 UNEF 20.60 32.54 25.81 7.93 44.76 20.80 49.45 8.59 11.23
14 23.78 41.25 7/8-20 UNEF 23.78 32.54 28.98 9.58 44.10 23.78 54.54 10.57 13.69
16 26.98 41.25 1-20 UNEF 26.98 32.54 30.56 12.70 47.65 26.98 59.61 13.97 15.65
18 30.12 41.25 1 3/16-18 NEF 30.12 32.54 36.22 15.87 47.65 30.12 64.70 15.24 17.07
20 33.30 42.85 1 3/16-18 NEF 33.30 35.13 36.22 15.87 53.80 33.30 71.91 16.13 18.98
22 36.47 42.85 1 7/16-18 NEF 36.47 35.13 39.80 19.05 53.80 36.47 76.99 17.02 21.49
24 39.65 43.94 1 7/16-18 NEF 39.65 35.13 44.07 30.32 57.15 39.65 78.08 18.80 22.71

Note: Serrations / antirotation feature is provided on shells and accessories for 10J style only.

AMPHENOL INTERCONNECT INDIA PVT. LTD. 6

 62IN SERIES

Connector styles
Box mounting receptacles

Style 12E Style 12E(219)

solder film wire terminations

All dimensions in mm
Style 12E Style 12E(219)
Shell B C D E F G Y
A L H J K L
size Dia Dia Dia A
min max min max
8 1.58 20.75 15.09 3.05 11.30 11.02 12.02 20.32 24.84 20.32 4.22 5.03 2.26 0.70 0.76 24.95
10 1.58 23.93 18.26 3.05 11.30 14.17 14.99 20.32 24.84 20.32 4.22 5.03 2.26 0.70 0.76 24.95
12 1.58 26.32 20.63 3.05 11.30 17.35 19.05 20.32 24.84 20.32 4.22 5.03 2.26 0.70 0.76 24.95
14 1.58 28.70 23.10 3.05 11.30 20.52 22.23 20.32 24.84 20.32 4.22 5.03 2.26 0.70 0.76 24.95
16 1.58 31.07 24.61 3.05 11.30 23.70 25.40 20.32 24.84 20.32 4.22 5.03 2.26 0.70 0.76 24.95
18 1.58 33.45 26.58 3.05 11.30 26.85 28.58 20.32 24.84 20.32 4.22 5.03 2.26 0.70 0.76 24.95
20 2.03 36.63 29.36 3.05 14.10 30.02 31.75 22.23 26.62 22.23 3.89 4.70 1.93 0.70 0.76 26.85
22 2.03 39.80 31.75 3.05 14.10 30.02 34.93 22.23 26.62 22.23 3.89 4.70 1.93 0.70 0.76 26.85
24 2.03 42.98 34.93 3.74 14.99 36.37 38.10 22.23 26.62 22.23 3.89 4.70 1.93 0.70 0.76 26.85

Mounting data
Panel cutouts
Wall mounting receptacles

Style 12E(220)
film wire terminations All dimensions in mm
All dimensions in mm Shell D E R S
S h e ll A H J K L size Dia Dia
s iz e m in m ax m in m ax 8 15.09 3.05 14.42 31.73
8 2 0 .3 2 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 2 8 .3 2 10 18.29 3.05 17.53 34.52
10 2 0 .3 2 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 2 8 .3 2 12 20.75 3.05 21.84 38.89
12 2 0 .3 2 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 2 8 .3 2 14 23.11 3.05 25.15 42.06
14 2 0 .3 2 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 2 8 .3 2
16 24.64 3.05 28.19 45.24
16 2 0 .3 2 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 2 8 .3 2
18 26.92 3.05 31.49 48.03
18 2 0 .3 2 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 2 8 .3 2
20 2 2 .2 3 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 3 0 .2 3 20 29.46 3.05 35.54 51.59
22 2 2 .2 3 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 3 0 .2 3 22 31.75 3.05 37.85 52.76
24 2 2 .2 3 7 .9 5 8 .0 0 4 .6 0 0 .7 0 0 .7 6 3 0 .2 3 24 35.05 3.05 41.15 57.84

Note: Style 220 is also available for 57A type receptacles with similar termination dimensions as 12E(220) style shown above.

AMPHENOL INTERCONNECT INDIA PVT. LTD. 7

62IN SERIES

Connector styles
Jam nut receptacles

Style 57A Style 57A(219)

solder film wire terminations

Without termination assemblies All dimensions in mm

D H K Style Style X
Shell B C F J M Y
Panel 57A 57A thread
size min max min max Dia Dia
thickness L (219) in
min max L inches
8 2.97 23.93 0.70 0.76 17.93 3.38 4.40 19.05 1.58 3.18 24.84 24.84 13.39 12.03 9/16-24 NEF
10 2.97 27.10 0.70 0.76 17.93 3.38 4.40 22.23 1.58 3.18 24.84 24.84 16.56 14.99 11/16-24 NEF
12 2.97 31.88 0.70 0.76 17.93 3.38 4.40 26.98 1.58 3.18 24.84 24.84 20.70 19.05 7/8-20 UNEF
14 2.97 35.05 0.70 0.76 17.93 3.38 4.40 30.15 1.58 3.18 24.84 24.84 23.85 22.23 1-20 UNEF
16 2.97 38.23 0.70 0.76 17.93 3.38 4.40 33.32 1.58 3.18 24.84 24.84 27.00 25.40 1 1/8-18 NEF
18 2.97 41.40 0.70 0.76 17.932 3.38 4.40 36.50 1.58 3.18 24.84 24.84 30.18 28.58 1 1/4-18 NEF
20 3.76 46.15 0.70 0.76 22.71 3.38 4.40 38.68 1.58 6.35 26.62 30.35 33.35 31.75 1 3/8-18 NEF
22 3.76 49.33 0.70 0.76 22.71 3.38 4.40 42.85 1.58 6.35 26.62 30.35 36.53 34.93 1 1/2-18 NEF
24 3.76 52.50 0.70 0.76 23.55 3.38 4.40 46.05 1.58 6.35 26.62 30.35 39.70 38.10 1 5/8-18 NEF

Mounting data
Panel cutouts

Style 14E

With termination assemblies All dimensions in mm

Shell G L Shell N R S
size Dia size
8 18.11 34.14 8 13.72 14.53 31.75
10 21.29 34.14 10 16.89 17.70 34.52
12 24.46 34.14 12 21.03 22.48 38.89
14 27.63 34.14 14 24.18 25.65 42.06
16 30.81 34.14 16 27.33 28.83 45.24
18 33.98 34.14 18 30.50 32.00 48.03
20 37.16 40.03 20 33.68 35.18 51.59
22 40.33 40.03 22 36.86 38.35 54.76
24 43.51 40.87 24 40.03 41.45 57.84

AMPHENOL INTERCONNECT INDIA PVT. LTD. 8

 62IN SERIES

Connector styles
Cable mounting receptacles

Style 51T & 11J

Without termination assemblies All dimensions in mm

X
Shell B C F L Y
thread
size Dia
in inches
8 2.39 20.75 10.54 24.84 12.03 7/16-28 UNEF
10 2.39 23.93 10.54 24.84 14.99 9/16-24 NEF
12 2.39 26.32 10.54 24.84 19.05 11/16-24 NEF
14 2.39 28.70 10.54 24.84 22.23 13/16-20 UNEF
16 2.39 31.07 10.54 24.84 25.40 15/16-20 UNEF
18 2.39 33.45 10.54 24.84 28.58 1 1/16-18 NEF
20 2.59 36.63 13.59 26.62 31.75 1 3/16-18 NEF
22 2.59 39.80 13.59 26.62 34.93 1 5/16-18 NEF
24 2.59 42.98 14.53 26.62 38.10 1 7/16-18 NEF

Note: Serrations / antirotation feature is not provided on shells for 11A, 11E and 11F styles.

Style 11A Style 11E Style 11F Style 11J

With termination assemblies All dimensions in mm

Style 11A Style 11E Style 11F Style 11J
Shell G L M G L G H L G L For cable size
size Dia thread Dia Dia Dia Dia Z Dia
in inches min max
8 14.25 41.25 1/2-28 UNEF 14.25 32.54 21.03 3.96 44.76 14.25 46.89 4.28 5.84
10 17.43 41.25 5/8-24 NEF 17.43 32.54 22.63 4.78 44.76 17.43 46.89 5.21 7.93
12 20.60 41.25 3/4-20 UNEF 20.60 32.54 25.81 7.93 44.76 20.60 49.45 8.59 11.23
14 23.78 41.25 7/8-20 UNEF 23.78 32.54 28.97 9.53 44.10 23.78 54.54 10.57 13.69
16 26.95 41.25 1-20 UNEF 26.95 32.54 30.56 12.70 47.65 26.95 59.61 13.97 15.65
18 30.13 41.25 1 3/16-18 NEF 30.13 32.54 36.22 15.88 47.65 30.13 64.70 15.24 17.07
20 33.30 42.85 1 3/16-18 NEF 33.30 35.13 36.22 15.88 53.80 33.30 71.91 16.13 18.98
22 36.75 42.85 1 7/16-18 NEF 36.75 35.13 39.80 19.05 53.80 36.75 76.99 17.02 21.49
24 39.65 43.95 1 7/16-18 NEF 39.65 35.13 44.07 20.32 57.15 39.65 78.03 18.80 22.71

Note: Serrations / antirotation feature is provided on shells and accessories for 11J style only.

AMPHENOL INTERCONNECT INDIA PVT. LTD. 9

62IN SERIES

Connector styles
Straight plugs

Styles 16J, 56T & 56TG

Without termination assemblies All dimensions in mm

Shell C L X thread
size Dia in inches
8 19.05 24.79 7/16-28 UNEF
10 21.82 24.79 9/16-24 NEF
12 26.19 24.79 11/16-24 NEF
14 29.36 24.79 13/16-20 UNEF
16 32.54 24.79 15/16-20 UNEF
18 35.33 24.79 1 1/16-18 NEF
20 38.89 26.79 1 3/16-18 NEF
22 42.06 26.79 1 5/16-18 NEF
24 45.14 26.79 1 7/16-18 NEF

Note: Serrations / antirotation feature is not provided on shells for 16A, 16E and 16F styles.

Style 16A Style 16E Style 16F Style 16J

With termination assemblies All dimensions in mm

Style 16A Style 16E Style 16F Style 16J
Shell G L M G L G H L G L For cable size
size Dia thread Dia Dia Dia Dia Z Dia
in inches min max
8 14.25 41.00 1/2-28 UNEF 14.25 32.54 21.03 3.96 44.50 14.25 46.64 4.28 5.84
10 17.43 41.00 5/8-24 NEF 17.43 32.54 22.63 4.78 44.50 17.43 46.64 5.21 7.93
12 20.60 41.00 3/4-20 UNEF 20.60 32.54 25.81 7.93 44.50 20.60 49.20 8.59 11.23
14 23.78 41.00 7/8-20 UNEF 23.78 32.54 28.97 9.53 43.84 23.78 54.28 10.57 13.69
16 26.95 41.00 1-20 UNEF 26.95 32.54 30.56 12.70 47.40 26.95 59.36 13.97 15.65
18 30.13 41.00 1 3/16-18 NEF 30.13 32.54 36.22 15.88 47.40 30.13 64.45 15.24 17.07
20 33.30 41.00 1 3/16-18 NEF 33.30 32.54 36.22 15.88 51.81 33.30 70.05 16.13 18.98
22 36.75 41.00 1 7/16-18 NEF 36.75 32.54 39.80 19.05 51.81 36.75 75.13 17.02 21.49
24 39.61 42.11 1 7/16-18 NEF 39.61 32.54 44.07 20.32 55.32 39.61 76.25 18.80 22.71
Notes: 1. Plugs are also available with heavy duty ribbed coupling rings. To order, add deviation (044) at the end of plug part
number.
2. Serrations / antirotation feature is provided on shells for 16J, 56T and 56TG styles only.
AMPHENOL INTERCONNECT INDIA PVT. LTD. 10
 62IN SERIES

Metallic dust covers

Standard is olive drab chromate finish over cadmium plating with straight knurling. To order add suffix -XX to required style, where
XX specifies shell size. It is strongly recommended that these are fitted to provide protection when connectors are not in use. For
alternate finishes or dust covers with heavy duty ribs, contact factory for further details and part number.

For receptacles
Dust cover style To fit receptacle
with chain with nylon cord style
62IN-736 62IN-813 Jam nut
62IN-737 62IN-814 Cable mounting
62IN-738 62IN-812 Wall and box mounting

For plugs
Dust cover style
with chain with nylon cord
62IN-742 62IN-810

All dimensions in mm
B J Dia
Shell A C 736 737 738
size chain / cord for for Dia 813 814 812
length receptacles plugs 742
810
8 76.20 15.21 15.03 18.64 14.68 11.63 4.40
10 76.20 15.21 15.03 21.82 17.86 14.81 4.40
12 88.90 15.21 15.03 25.40 22.63 17.98 4.40
14 88.90 15.21 15.03 28.57 25.81 22.76 4.40
16 88.90 15.21 15.03 31.75 29.39 25.93 4.40
18 88.90 15.21 15.03 34.92 32.16 29.11 4.40
20 101.60 15.21 15.03 38.10 35.33 32.28 4.40
22 101.60 15.21 15.03 41.27 38.51 35.46 4.40
24 101.60 15.21 15.03 44.45 41.68 38.63 4.40

AMPHENOL INTERCONNECT INDIA PVT. LTD. 11

62IN SERIES

Accessories
Strain relief clamp with grommet 62IN-585-XX-XXS or XXP
(Replace XX-XX with the required insert arrangement)

All dimensions in mm
A G H
Shell size
max max max
8 25.17 21.03 4.09
10 25.17 22.63 4.90
12 25.17 25.81 8.05
14 24.51 28.98 9.65
16 28.07 30.56 12.83
18 28.07 36.22 16.00
20 32.64 36.22 16.00
22 32.64 39.80 19.18
24 34.88 44.07 20.45

Shell to accept conduit 62IN-776-XX

(Replace XX with the required shell size)

All dimensions in mm

A M
Shell size
max Thread in inches
8 23.80 1/2-28 UNEF
10 23.80 5/8-24 NEF
12 23.80 3/4-20 UNEF
14 23.80 7/8-20 UNEF
16 23.80 1-20 UNEF
18 23.80 1 3/16-18 NEF
20 23.80 1 3/16-18 NEF
22 23.80 1 7/16-18 NEF
24 23.80 1 7/16-18 NEF

AMPHENOL INTERCONNECT INDIA PVT. LTD. 12

 62IN SERIES

Accessories
Flange mounting gasket 62IN-760-XX
(Replace XX with the required shell size)

All dimensions in mm

Shell D E F Dia G Dia H

size max
8 20.62 15.08 12.90 3.30 1.06
10 23.82 18.26 16.07 3.30 1.06
12 26.18 20.65 19.25 3.30 1.06
14 28.57 23.01 22.42 3.30 1.06
16 30.96 24.61 25.60 3.30 1.06
18 33.32 27.00 28.77 3.30 1.06
20 36.52 29.36 31.95 3.30 1.06
22 39.70 31.75 35.13 3.30 1.06
24 42.87 34.92 38.30 3.96 1.06

PG Adaptors

All dimensions in mm
X Thread
Part number For shell size A B L PG Thread
in inches
62IN08-PG7 8 7/16-28 UNEF 16.50 14.50 20.00 PG7

62IN10-PG9 10 9/16-24 NEF 22.00 17.70 20.00 PG9

62IN12-PG9 12 11/16-24 NEF 22.00 21.00 20.00 PG9

62IN14-PG13.5 14 13/16-20 UNEF 28.00 23.50 25.00 PG13.5

62IN16-PG9 16 15/16-20 UNEF 29.00 27.80 30.00 PG9

62IN20-PG21 20 1 3/16-18 NEF 35.00 34.00 40.00 PG21

AMPHENOL INTERCONNECT INDIA PVT. LTD. 13

62IN SERIES

Specials
Industrial version crimp contacts

62IN series connectors are also available with rear release crimp contacts for industrial applications.
These contacts can be crimped to wires outside the connector and then inserted into place with the help
of designated tools. Connector maintenance is simplified because damaged contacts can be removed by
using the designated removal tool and replaced with a new contact. Spare contacts are also available.

Crimping tool details

Part number Contact type Crimping tool Locator W ire size
Military number accomodation
62IN108166 20 size pin
24, 22 and 20 AW G
62IN108167 20 size socket
M22520/1-01 M22520/1-02
62IN108168 16 size pin
20, 18 and 16 AW G
62IN108169 16 size socket

Insertion and removal tool details

C o n ta c t ty p e In s e rtio n to o l R e m o v a l to o l

2 0 s iz e p in T -8 0 9 7 3 3 T -8 0 9 7 2 9

2 0 s iz e s o c k e t T -8 0 9 7 3 3 T -8 0 9 7 3 0

1 6 s iz e p in T -8 0 9 7 3 4 T -8 0 9 7 3 1

1 6 s iz e s o c k e t T -8 0 9 7 3 4 T -8 0 9 7 3 2

Standard deviations

D eviation num ber D escription

(004) G old flash on contacts

(005) C rim p contact

(023) N ickel plated hardware

(044) R ough grip heavy duty coupling ring (for plugs only)

(218) C oupling ring w ith lever arrangem ent

(219) Film w ire term ination (short) for flexible printed w iring (57A and 12E styles only)

(220) Film w ire term ination (long) for flexible printed w iring (57A and 12E styles only)

(624) C adm ium free zinc-cobalt plating

(0PX) Prem ating contact (X denotes prem ating contact designation)

Specials
For special requirements, please contact factory with specifications and drawings. Amphetronix has in-house capability to meet
and custom build your special requirements for its range of MIL-C-26482 62IN series connectors.

AMPHENOL INTERCONNECT INDIA PVT. LTD. 14

 62IN SERIES

Ordering 62IN series connectors

To obtain a specific connector number , write down the connector numbers from the typical example below . Only inserts shown on
page 5 can be specified. Connectors are delivered with protective plastic dust caps. deviations specified on page 14 must be included
at the end of the connector number whenever required.

62IN 5 4 E 18 32 P X

Series designation
62IN - MIL-C-26482 series I
miniature bayonet lock Deviations
See page 14

Key specification
1 - as per MIL-C-264 82
Orientation
5 - as per BS 9522 F 00 17 Inserts -
W-X-Y-Z
(Omit for normal)
Shell style OR
Key/Keyway
0 - Wall mounting receptacle B-C-E-F
1 - Cable connecting
receptacle See pages 3 and 4.
2 - Box mounting receptacle
4 - Jam nut receptacle
internally threaded with Contact style
cable accessories
5 - plug without back accessories
P - Pin contacts
6 - Plug
S - Sockets contacts
7 - Jam nut receptacle, plain
shell

Insert arrangement
Connector class
First box indicates shell size -
A - Plain shell, exposed solder 8, 10, 12, 14, 16, 18, 20, 22, 24.
buckets, no grommet.
E - Insert and grommet with Both boxes together indicate the exact
grommet nut (excluding 12 E insert arrangement.
which has plain shell and no
grommet or grommet nut). See page 5.
F - Same as E, but grommet
nut with strain relief clamp.
J - Same as E, but with resilient
gland seal and nut for Shell finish
unscreened jacketed cable,
Standard-Cadmium plating with
no grommet.
olive drab chromate finish
T - Threaded shell for cable Alternate finishes
accessories, exposed solder 1. Black anodised finish
buckets. 2. Cadmium free zinc-cobalt
TG - Same as T, but shell has plating with olive drab
grounding fingers. chromate finish

Ref page No. 14, for codes

For details contact factory

AMPHENOL INTERCONNECT INDIA PVT. LTD. 15
