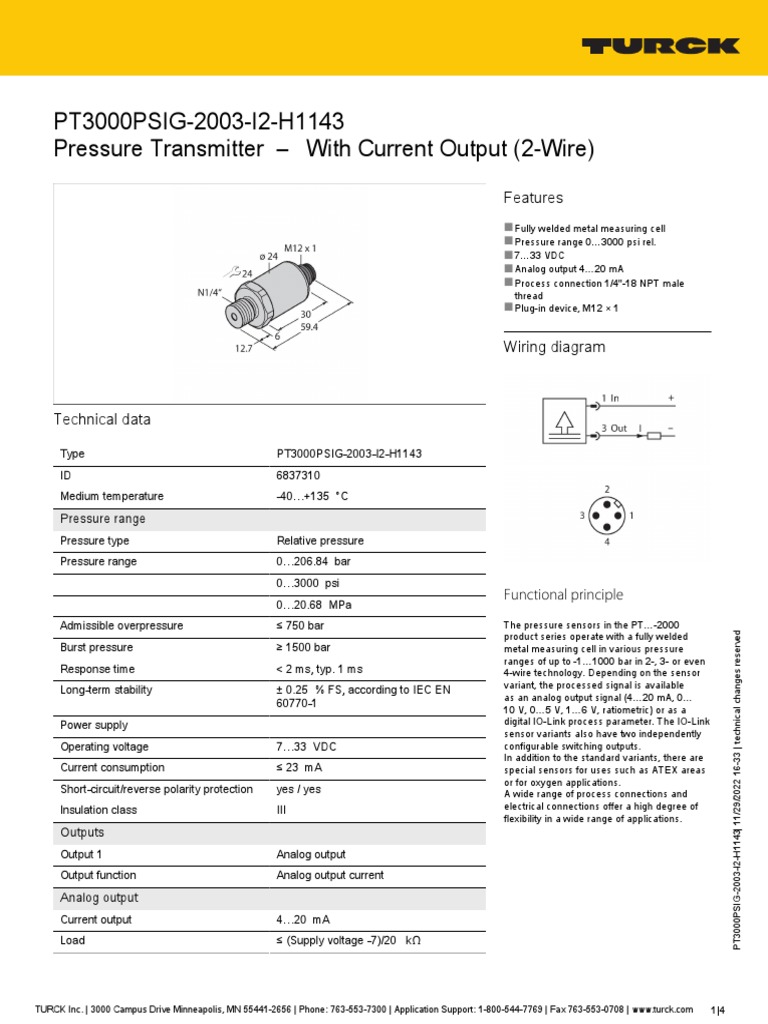

PT3000PSIG-2003-I2-H1143
Pressure Transmitter – With Current Output (2-Wire)
Features
■Fully welded metal measuring cell
■Pressure range 0…3000 psi rel.
■7…33 VDC
■Analog output 4…20 mA
■Process connection 1/4"-18 NPT male
thread
■Plug-in device, M12 × 1
Wiring diagram
Technical data
Type PT3000PSIG-2003-I2-H1143
ID 6837310
Medium temperature -40…+135 °C
Pressure range
Pressure type Relative pressure
Pressure range 0…206.84 bar
0…3000 psi
Functional principle
0…20.68 MPa
Admissible overpressure ≤ 750 bar The pressure sensors in the PT…‐2000
product series operate with a fully welded
PT3000PSIG-2003-I2-H1143| 11/29/2022 16-33 | technical changes reserved
Burst pressure ≥ 1500 bar metal measuring cell in various pressure
ranges of up to -1…1000 bar in 2-, 3- or even
Response time < 2 ms, typ. 1 ms 4-wire technology. Depending on the sensor
Long-term stability ± 0.25 % FS, according to IEC EN variant, the processed signal is available
as an analog output signal (4…20 mA, 0…
60770-1 10 V, 0…5 V, 1…6 V, ratiometric) or as a
Power supply digital IO-Link process parameter. The IO-Link
sensor variants also have two independently
Operating voltage 7…33 VDC configurable switching outputs.
In addition to the standard variants, there are
Current consumption ≤ 23 mA special sensors for uses such as ATEX areas
or for oxygen applications.
Short-circuit/reverse polarity protection yes / yes A wide range of process connections and
Insulation class III electrical connections offer a high degree of
flexibility in a wide range of applications.
Outputs
Output 1 Analog output
Output function Analog output current
Analog output
Current output 4…20 mA
Load ≤ (Supply voltage -7)/20 kΩ
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com 1|4
Technical data
Resolution <± 0.1 % FS
Accuracy LHR ± 0.3 % FS BSL
Housing material Stainless-steel/Plastic, 1.4404 (AISI
316L)/polyacrylamide 50 % GF UL 94 V-0
Process connection 1/4'' NPT-18 male thread
Pressure connection material Stainless steel 1.4404 (AISI 316L)
Pressure transducer material Stainless steel 1.4435 (AISI 316L)
Wrench size pressure connection / 24
coupling nut
Max. tightening torque of housing nut 20 Nm
Electrical connection Connector, M12 × 1
Protection class IP67
Ambient temperature -30…+85 °C
Storage temperature -50…+100 °C
Shock resistance 100 g, 11 ms, half sinusoidal curve,
all 6 directions, free fall from 1 m onto
concrete (6x) , acc. to IEC 68-2-27
Vibration resistance 20 g, 15…2000 Hz, 15…25 Hz with
amplitude +/- 15 mm, 1 octave/minute all
3 directions, 50 continuous loads
Tests/approvals
UL registration number E302799
Reference conditions acc. to IEC
61298-1
Temperature 15…+25 °C
Atmospheric pressure 860…1060 hPa abs.
PT3000PSIG-2003-I2-H1143| 11/29/2022 16-33 | technical changes reserved
Humidity 45…75 % rel.
Auxiliary power 24 VDC
Temperature behaviour
MTTF 1189 years acc. to SN 29500 (Ed. 99) 40
°C
Technical data
Type PT3000PSIG-2003-I2-H1143
ID 6837310
Pressure range
Pressure type Relative pressure
Pressure range 0…206.84 bar
0…3000 psi
0…20.68 MPa
Admissible overpressure ≤ 750 bar
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com 2|4
Technical data
Burst pressure ≥ 1500 bar
Response time < 2 ms, typ. 1 ms
Long-term stability 0.25 % FS, according to IEC EN 60770-1
Power supply
Operating voltage 7…33 VDC
Current consumption ≤ 23 mA
Short-circuit/reverse polarity protection yes / yes
Protection type and class IP67 / III
Insulation voltage 750 VDC
Outputs
Output 1 Analog output
Output function Analog output current
Analog output
Current output 4…20 mA
Load ≤ (Supply voltage -7)/20 kΩ
Resolution <± 0.1 % FS
Accuracy LHR ± 0.3 % FS BSL
Temperature behaviour
Medium temperature -40…+135 °C
Temperature coefficient ± 0.2 % of full scale/10 K
Ambient conditions
Ambient temperature -30…+85 °C
Storage temperature -50…+100 °C
PT3000PSIG-2003-I2-H1143| 11/29/2022 16-33 | technical changes reserved
Vibration resistance 20 g, 15…2000 Hz, 15…25 Hz with
amplitude +/- 15 mm, 1 octave/minute all
3 directions, 50 continuous loads, acc. to
IEC 68-2-6
Shock resistance 100 g, 11 ms, half sinusoidal curve,
all 6 directions, free fall from 1 m onto
concrete (6x) , acc. to IEC 68-2-27
Mechanical data
Housing material Stainless-steel/Plastic, 1.4404 (AISI
316L)/polyacrylamide 50 % GF UL 94 V-0
Pressure connection material Stainless steel 1.4404 (AISI 316L)
Pressure transducer material Stainless steel 1.4435 (AISI 316L)
Process connection 1/4'' NPT-18 male thread
Wrench size pressure connection / 24
coupling nut
Electrical connection Connector, M12 × 1
Max. tightening torque of housing nut 20 Nm
TURCK Inc. | 3000 Campus Drive Minneapolis, MN 55441-2656 | Phone: 763-553-7300 | Application Support: 1-800-544-7769 | Fax 763-553-0708 | www.turck.com 3|4
Technical data
Reference conditions acc. to IEC
61298-1
Temperature 15…+25 °C
Atmospheric pressure 860…1060 hPa abs.
Humidity 45…75 % rel.
Auxiliary power 24 VDC
Tests/approvals
Approvals cULus
UL registration number E302799
MTTF 1189 years acc. to SN 29500 (Ed. 99) 40
°C
PT3000PSIG-2003-I2-H1143| 11/29/2022 16-33 | technical changes reserved
