OmniScripts with Branching

Exercise Guide

Create a Type Ahead Block Element

NOTE:
Did you sign up for a special OmniStudio Developer Edition org already? You’ll
need one to do the steps in this guide. If not, use the link to fill out the form
and have an org delivered to your inbox. The Exercise Guide in the first unit of
this module has more detailed steps for this process if you need them.

Requirements
“As a service agent, I'd like a more complex guided workflow that provides me with an option
to change the primary contact to another existing contact that I easily lookup
(and edit their contact information)”

Based on the user requirements, you add a Type Ahead Block to the BlkChangePriContact
element of your branching OmniScript. A Type Ahead Block is an auto-complete feature.
Once configured, it retrieves data and displays it in a dropdown list as the user types, saving
them from having to type the full value.

Prerequisites
● Build an OmniScript with Branching

Tasks
1. Add a Type Ahead Block
2. Refine the UI of the Type Ahead Block

Time
● 35 mins

© Copyright 2021 [Link], inc. All rights reserved. 1

OmniScripts with Branching
Exercise Guide

Task 1: Add a Type Ahead Block

1. Add a Type Ahead block to the BlkChangePriContact block.

a. In the Canvas, click StepContacts.

b. From the Build panel, expand the GROUPS section or use Search and enter
type and locate the Type Ahead Block element.

c. Drag the Type Ahead Block into the BlkChangePriContact block on the
Canvas (the empty block).

d. In the Properties panel, set the following values:

Property Value Notes

Name TAChangeContact TA is an abbreviation for

“typeahead”.

Field Label Start typing User instructions

contact name

Required ✓
2. Configure a data source for the Type Ahead block. A stub DataRaptor Extract is
already available for you to use.

a. In the Build panel, expand the ACTIONS group (if you used search,
remember to clear the search conditions).

b. Drag a DataRaptor Extract Action into the TAChangeContact block. (It

appears as a button inside the block.)

© Copyright 2021 [Link], inc. All rights reserved. 2

OmniScripts with Branching
Exercise Guide

c. For Name and Field Label, change the value to DRChangeContactTA.

d. From the DataRaptor Interface dropdown list, select

teamStubChangePriContactTA.

3. Add input parameters.

As with an Integration Procedure, you need to add some input parameters to send
data to the DataRaptor. This DataRaptor only needs to look for contacts associated
with this account.

Input parameters consist of a data source and a filter value. The data source specifies
the OmniScript element or JSON node that is passed to the DataRaptor, and the
filter value renames it to a name that the DataRaptor expects. In this example, the
first input parameter passes the AccountId to the DataRaptor to filter the search to
the account's contacts. The second input parameter sends the text that the user
types in to the DataRaptor as the lookup key.

a. Set the following values:

Data Source Filter Value

ContextId AccountId

b. Click + Add Input Parameter.

© Copyright 2021 [Link], inc. All rights reserved. 3

OmniScripts with Branching
Exercise Guide

c. Set the following values:

Data Source Filter Value

TAChangeContact LookupKey

The first value limits the search to the contacts already associated with this
account. The second sends what the user types into the Type Ahead field. The
first values have to be typed in, which the second Data Source selected from
the list of options in the dropdown list.

4. Review the data flow updates in the UI.

a. In the Header, click Preview.

b. Select the Change primary contact radio button.

c. Type a in the field.

d. Notice the dropdown list has all of the Contact stub data. You need to finish
configuring the Type Ahead Block to only display Contact names that match
what is entered.

e. Click Action Debugger.

f. Expand the most recent entry DRChangeContactTA. You may need to scroll
down.

g. Expand the Request Data node (you may also have to expand the box by
dragging the lower-right corner to see the entire node).

© Copyright 2021 [Link], inc. All rights reserved. 4

OmniScripts with Branching
Exercise Guide

h. Notice the OmniScript is sending a LookupKey and an AccountId to the

DataRaptor. (Because you are using stub data, there is no AccountId being
sent.)

i. Expand the Response node under the request data node to view the
response from the DataRaptor.

j. Notice the response contains two contact records with the following field
names:

i. ChangeContactNameKey

ii. ChangeContactId

iii. ChangeContactEmail

5. Configure the name of the field to display in the Type Ahead Block.

a. From the first contact record, copy the text ChangeContactNameKey to the
clipboard.

© Copyright 2021 [Link], inc. All rights reserved. 5

OmniScripts with Branching
Exercise Guide

b. In the Header, click Design.

c. In the Canvas, click the TAChangeContact element.

d. In the Properties panel, locate Typeahead Key and paste the JSON key from
the clipboard.

e. Return to Preview, select Change primary contact, and type a.

f. The dropdown now only displays names.

6. Add more fields to this Type Ahead Block to store and view the data returned from
the DataRaptor.
a. In the header, click Design.

© Copyright 2021 [Link], inc. All rights reserved. 6

OmniScripts with Branching
Exercise Guide

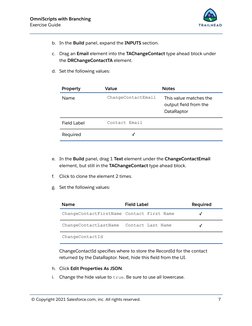

b. In the Build panel, expand the INPUTS section.

c. Drag an Email element into the TAChangeContact type ahead block under
the DRChangeContactTA element.

d. Set the following values:

Property Value Notes

Name ChangeContactEmail This value matches the

output field from the
DataRaptor

Field Label Contact Email

Required ✓

e. In the Build panel, drag 1 Text element under the ChangeContactEmail

element, but still in the TAChangeContact type ahead block.

f. Click to clone the element 2 times.

g. Set the following values:

Name Field Label Required

ChangeContactFirstName Contact First Name ✓
ChangeContactLastName Contact Last Name ✓
ChangeContactId

ChangeContactId specifies where to store the RecordId for the contact

returned by the DataRaptor. Next, hide this field from the UI.

h. Click Edit Properties As JSON.

i. Change the hide value to true. Be sure to use all lowercase.

© Copyright 2021 [Link], inc. All rights reserved. 7

OmniScripts with Branching
Exercise Guide

j. Click Close JSON Editor.

k. Adjust the Control Width of both ChangeContactFirstName and
ChangeContactLastName so the elements fit on one line together.
7. Preview the use of the Type Ahead block.

a. In the header, click Preview.

b. Select Change primary contact.

c. Click Edit (the pencil in the start typing field).

d. Notice Contact Email, Contact First Name, and Contact Last Name are now
displayed as required values.

e. Type a in the name field and select Place Holder from the list of choices.

Place Holder’s name and email display.

f. Review the Data JSON and notice the ContactId is present and available in
the JSON data in the BlkChangePriContact node (You may have to expand
the TAChangeContact-Block to view the details), in the ChangeContactId
field, which is used to save data when you make changes.

© Copyright 2021 [Link], inc. All rights reserved. 8

OmniScripts with Branching
Exercise Guide

Task 2: Refine the UI of the Type Ahead Block

1. Notice two options for the Change primary contact fields:

a. The Edit button, which the user must click to display the Contact Email field.

b. The type-ahead field dropdown list, which shows a New option for adding a
new contact, which you do not want to let end users do here.

2. Configure the OmniScript to refine the UI by hiding the Edit button and removing
the New option.

a. In the header, click Design.

b. In the canvas, click the TAChangeContact type ahead element

If you’re unsure of which element you’re in, look at the properties title. It lists
the element type.

c. In the Properties panel, for New Item Label, delete “New”. This removes the
New option from the typeahead dropdown list.

d. In the Properties panel, select Edit Mode, which specifies that all fields in the
element are editable in the UI. This means that the user no longer needs to
click Edit to view or update the contact email address.

e. Select Hide Edit Button to hide the button from the UI.

f. Click Preview > Change primary contact.

g. Notice the Edit button is removed.

h. Start typing in the field and notice the New option is removed.

© Copyright 2021 [Link], inc. All rights reserved. 9
