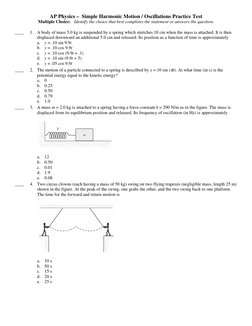

Youssef Hassan- Simple Harmonic Motion / Oscillations Practice Test
- Answer Key
Common questions
Powered by AIAn object oscillating on the end of a horizontal spring has positive velocity and zero acceleration at the equilibrium position. Since acceleration is the derivative of velocity, at the equilibrium point, the acceleration is zero while velocity reaches maximum .

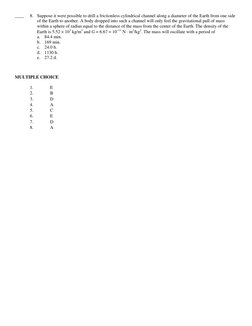

A body dropped through a frictionless channel along a diameter of the Earth has an oscillation period of 84.4 minutes. This results from treating the force of gravity inside Earth as a linear restoring force, leading to a simple harmonic motion with a period dependent on Earth's density and gravitational constant .
In the system with a mass at rest at O, oscillating between points A and B, the rate of change of momentum has its greatest magnitude at points A and B. At these positions, the restoring force (and thus acceleration) is the highest, leading to the greatest rate of momentum change .
For an object oscillating on a horizontal spring, zero velocity with positive acceleration occurs at the maximum displacement points. Here, although the velocity is zero, the spring force (and hence acceleration) is at its maximum due to being furthest from equilibrium .
The time taken for two circus clowns, each with a mass of 50 kg, swinging on trapezes of length 25 m, to complete the forward and return motion is 10 seconds. This uses principles from pendulum motion where the period depends on the length of the pendulum and gravitational acceleration, independent of mass .
For a particle connected to a spring, described by x = 10 sin(πt), the kinetic and potential energies are equal when t = 0.25 s. This is because during one full oscillation cycle, the energies are equal at quarter periods, starting from the point of maximum potential energy towards conversion to kinetic .
The position function of the body suspended by a spring, displaced downward by 5.0 cm and released, can be described as approximately y = .10 cos 9.9t. This is derived by considering the initial conditions and behavior of simple harmonic motion, indicating that the displacement influences the initial conditions in the cosine function .
The frequency of oscillation for a mass m = 2.0 kg attached to a spring with a force constant k = 290 N/m is approximately 1.9 Hz. This can be calculated using the formula f = (1/2π)√(k/m), revealing the dependence of frequency on both the mass of the object and the stiffness of the spring .
