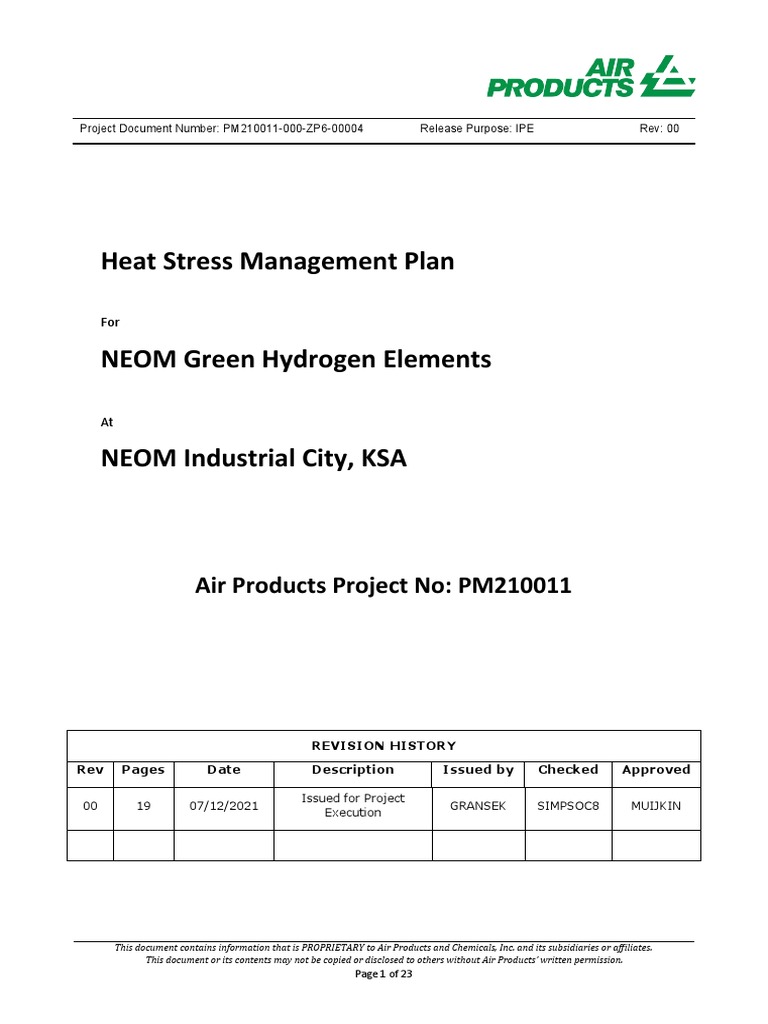

Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Heat Stress Management Plan

For

NEOM Green Hydrogen Elements

At

NEOM Industrial City, KSA

Air Products Project No: PM210011

REVISION HISTORY
Rev Pages Date Description Issued by Checked Approved

Issued for Project

00 19 07/12/2021 GRANSEK SIMPSOC8 MUIJKIN
Execution

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 1 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Table of Contents

1. Introduction................................................................................................................................4
2. Scope...........................................................................................................................................4
3. Terms & Definitions....................................................................................................................4
4. References..................................................................................................................................4
5. Objective.....................................................................................................................................4
6. Responsibilities...........................................................................................................................4
6.1. Project Manager (AP and CONTRACTOR)...................................................................................4
6.2. Site Manager (AP and CONTRACTOR)........................................................................................5
6.3. EH&S Manager (AP and CONTRACTOR)......................................................................................5
6.4. Supervisors and Foremen (CONTRACTOR).................................................................................5
6.5. Medical Team (AP)......................................................................................................................6
6.6. Employees (AP and CONTRACTOR)............................................................................................6
7. Control Measures........................................................................................................................7
7.1. Engineering Controls..................................................................................................................7
7.2. Administrative Controls..............................................................................................................7
7.2.1. Job Location and Work Duration............................................................................................7
7.2.2. Acclimatization.......................................................................................................................8
7.2.3. Heat Stress Measurement......................................................................................................8
7.2.4. Flag System............................................................................................................................8
7.2.5. Work/Rest Cycle....................................................................................................................9
7.3. Personal Controls........................................................................................................................9
7.3.1. Personal Protective Equipment..............................................................................................9
7.3.2. Employee Awareness, Training and Education....................................................................10
7.3.3. Fluid Replacement – Hydration............................................................................................10
7.3.4. Recovery...............................................................................................................................11
8. Emergency Procedures.............................................................................................................11
Appendix A – Background to Heat Stress.............................................................................12
Appendix B – Symptoms and First Aid Measures to Heat Stress..............................................15
Appendix C – Heat Index...................................................................................................17

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 2 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Appendix D – Am I Drinking Enough Water?........................................................................18

Appendix E – Heat Index Log.............................................................................................19

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 3 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Revision History

Amendment Revision Amender Amendment

Date Number Initials

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 4 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

1. Introduction
Air Products Heat Stress Program will be implemented in all activities during the construction
phase. This program shall be implemented to lessen the adverse effect of heat, humidity and
direct exposure to sunlight. This program shall be in accordance with Saudi Arabian Ministry of
Health Requirements and the Labor Law as well as international best practice.

2. Scope
This procedure shall be implemented by Air Products and its contractors, sub-contractors and
vendors including ALL personnel who are required to work in an open area with direct
exposure to sunlight and heat.

3. Terms & Definitions

Term Definition

AP Air Products

Air Product’s contractors including so called “General

CONTRACTOR
Contractors” and “Sub-EPC’s”

4. References
Project EH&S Documents:

Document Title Document Number

Construction EH&S Plan PM210011-000-ZP6-00006

5. Objective
This Heat Stress Management Plan is designed to reduce the risk of heat related disorders for
the employees working in hot weather condition or work exposed to direct sunlight.

Its purpose is to prevent heat-related illnesses for all employees working on the GHE project
site, which puts all at considerable risk of developing a heat-related illness.

6. Responsibilities
6.1. Project Manager (AP and CONTRACTOR)
Has the overall responsibility for the implementation of the following EH&S procedures:

▪ Wholly oversee the implementation of the heat stress management procedure.

▪ Ensure the project is suitably equipped with needed equipment and systems to address
the risk of heat stress.

▪ Ensure that there are sufficient funds and facilities to address the risk of heat stress.

▪ Periodically arrange for a review of the implementation and take appropriate measures
accordingly.

▪ Assist in the identification of elevated heat work areas

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 5 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

6.2. Site Manager (AP and CONTRACTOR)

▪ Identify heat stress risks.

▪ Practically plan and ensure resources are available to respond to the risk of heat stress.

▪ Coordinate at a managerial level and with AP/CONTRACTORs and sub-contractors.

▪ Do not let schedule or productivity demands supersede heat stress awareness or the
hierarchy of controls used to prevent heat related injuries.

▪ Conduct meetings / site one-on-one talks during hot weather to emphasize heat stress
hazards and precautions, with an added emphasis on this risk during Ramadan.

▪ Shall ensure that work/rest rotations are observed and implemented in the work area.

▪ Ensure sufficient and accessible heat shelters are provided incl. sufficient heat control
equipment, fan, moisture fan, etc.

6.3. EH&S Manager (AP and CONTRACTOR)

▪ Assist in the identification of heat stress risk.

▪ Ensure the proper testing, monitoring, and documentation for heat stress components.

▪ Ensure proper use of the resources provided.

▪ Ensure all equipment used for testing and monitoring is appropriate in proper working
condition.

▪ Provide and ensure training as necessary to the employees about heat stress
management.

▪ Develop localized administrative, engineering or PPE controls and measures to reduce or

eliminate heat stress conditions.

▪ Assist the proper use of resources provided, for e.g., water stations are properly identified
and its proximity to the work area.

▪ Actively monitor the weather in line with the Heat Stress Program.

6.4. Supervisors and Foremen (CONTRACTOR)

▪ Assist in the identification of elevated heat work areas

▪ Monitor implementation of the heat stress program on site.

▪ Notify EH&S manager or representative of suspect hazardous work conditions i.e.,

temperature and humidity as recorded for their specific working areas.

▪ Monitor the implementation of required engineering controls, instrumentation and work

practice changes requested to reduce heat stress on the work force.

▪ Ensure that employees are trained in the heat stress program.

▪ Implement required engineering controls, instrumentation changes, or work practice

▪ Schedule the most strenuous work during the coolest times of the day (e.g., early morning
and evening).

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 6 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

▪ Rotate workers in and out of hot areas, as possible.

▪ Schedule work/rest rotations for workers according to the current heat index, which is
based on temperature and relative humidity.

▪ As practical, minimize high intensity manual work activities (e.g., use mechanization to
replace manual labor).

▪ Conduct daily/weekly safety meetings/talks during hot weather emphasizing heat stress
hazards and precautions, with added emphasis on this risk during Ramadan if it occurs in
summertime.

▪ Oversee acclimatization for new workers and workers returning from vacation.

▪ Provide drinking water stations (e.g., coolers with chilled or ice water) for employees and
remind them to drink plenty of water even If not thirsty. Replenish drinking water supplies
as needed to ensure availability.

▪ Ensure that workers visit the medical service upon experiencing the signs and symptoms
of thermal stress.

6.5. Medical Team (AP)

▪ Medical surveillance of employees shall be maintained by the on-site medical team.

▪ Ensure medical supplies for treating heat stress is readily available.

▪ Educate people on the importance of heat related issues.

▪ Carry out regular site visits to talk to individuals on the importance of hydration.

6.6. Employees (AP and CONTRACTOR)

▪ Attend required training(s) as specified by a supervisor, EH&S Manager, Environmental
Manager or Safety Advisor.

▪ Comply with procedures as required by the Heat Stress Program, and all other heat stress
related guidance as deemed appropriate by a supervisor.

▪ Use all personal protective equipment as specified in prescribed training or required by a

supervisor or Safety Adviser.

▪ Immediately notify a supervisor, or Safety Advisor of any hazards encountered.

▪ Report to the medical team in the event of an injury related to heat stress or other
condition leading to injury, disease or impairment.

▪ Follow instructions for controlling heat stress; including taking periodic “cool down” breaks
and drinking enough water i.e., begin drinking water early in the day.

▪ Monitor Flagging System at site

▪ Watch out for each other for symptoms of heat-related illness.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 7 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

7. Control Measures
7.1. Engineering Controls
The best way to prevent heat-related illness is to make the work environment cooler.
CONTRACTOR shall consider the following when selecting necessary engineering controls to
mitigate the risk of heat stress:

A. Shade

▪ Provision of shaded break/rest shelter area (incl. sufficient heat control equipment, fan,
moisture fan, etc.) shall be provided at a distance not greater than 100m (330 ft) from
personnel working in direct sunlight for extended periods of time

B. Portable Air-Cooling System

▪ Air conditioning (such as air-conditioned crane and heavy equipment cabs, mess/dining
halls, security huts, offices).

▪ Increased general ventilation.

▪ Cooling fans or portable cooling system (large industrial fans that spray out water
vapor/mist)

C. Local Ventilation

▪ Local exhaust ventilation at points of high heat production or moisture (such as exhaust
hoods in laundry rooms in the camps, food preparation and kitchens).

▪ Insulation of hot surfaces (such as furnace walls).

▪ Increase of sources of heat by shielding, insulation, or mechanical methods of reducing

heat or increasing air velocity.

Heat reduction can also be achieved by using power assists and tools that reduce the physical
demands placed on a worker. However, for this approach to be successful, the metabolic
effort required for the worker to use or operate these devices must be less than the effort
required without them. Another method is to reduce the effort necessary to operate power
assists.

7.2. Administrative Controls

7.2.1. Job Location and Work Duration
CONTRACTOR shall consider the following administrative controls to mitigate the risk of heat
stress:

▪ Scheduling work/rest rotations for workers according to the current heat index, this is
based on temperature and relative humidity (see Appendix C).

▪ Adjusting work/execution plans (e.g., use mechanical/powered equipment to replace

manual labor), as far as reasonably practicable.

▪ Schedule the most strenuous work during the coolest times of the day (e.g., early morning
and evening).

▪ Rotate workers in and out of hot areas, as possible.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 8 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

▪ Provide additional rest periods with water breaks for workers performing strenuous work.

7.2.2. Acclimatization
CONTRACTOR should take steps that help workers become acclimatized (gradually build up
exposure to heat), especially workers who are new to working in the heat or have been away
from work for a week or more. Gradually increase workloads and allow more frequent breaks
during the first week of work.

The human body can adapt to heat exposure to some extent. This physiological adaptation is
called acclimatization. After a period of acclimatization, the same activity will produce fewer
cardiovascular demands. The worker will sweat more efficiently (causing better evaporative
cooling), and thus will more easily be able to maintain normal body temperatures.

A properly designed and applied acclimatization program decreases the risk of heat-related
illnesses. Such a program basically involves exposing employees to work in a hot environment
for progressively longer periods. It is said that, for workers who have had previous experience
in jobs where heat levels are high enough to produce heat stress, the regimen should be 50%
exposure on day one, 60% on day two, 80% on day three, and 100% on day four.

For new workers (no previous experience in jobs with high heat levels), the regimen should be
20% on day one, with a 20% increase in exposure each additional day. These schedules do
not apply to workers wearing impermeable suits. Their exposures must be much shorter.

CONTRACTOR shall implement a color-coding identification for new employees as directed and
outlined in the ‘Construction EH&S Plan’.

7.2.3. Heat Stress Measurement

CONTRACTOR shall implement the following:

▪ Establish a weather station along with heat shelter and display necessary weather
information for employees, i.e., wind speed, temperature, humidity etc.

▪ Communicate weather details (i.e., Heat Index, see Appendix C) to Safety Advisors and
Construction Supervisors by means of suitable communication devices

▪ Update these details regularly, depending on weather condition.

▪ Adopt the flag system in all areas where there is a direct exposure to sunlight and open
areas.

▪ Place heat stress board (showing temperature, humidity heat index, other relevant heat
stress information) at convenient locations, i.e., entrance to working areas, rest shelters
and drinking igloos, site clinic.

▪ Record Temperature, Heat Index, Humidity in Heat Monitoring log (see Appendix E).

▪ Monitor the climate and weather and display the same through different flag colors.

Also, specific workplaces with very hot work processes or where workers have experienced
heat related illnesses shall be monitored accordingly.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 9 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

7.2.4. Flag System

CONTRACTOR shall implement a flag system to identify the existing conditions, via the
displaying of differing flag colors (reference is made to Appendix 3).

7.2.5. Work/Rest Cycle

In general, the mid-day ban to working in direct sunlight and outdoors (1200hrs to
1500hrs) shall be in effect from 15 June to 15 September. This includes the
construction site, lay-down yards, off site locations and labor camps and
accommodation.

Rather than being exposed to heat for extended periods of time, workers should, wherever
possible, be permitted to distribute the workload evenly over the day and incorporate
work/rest cycles.

If possible, physical demands should be reduced during hot weather, or heavier work
scheduled for cooler times of the day.

Rotating job functions among workers can help minimize overexertion and heat exposure.

The proper work cycles for reducing the ill effects of heat stress avoid “over-doing it”, e.g.

▪ Try to alternate light and heavy work

▪ When possible, cycle between indoor and outdoor work.

▪ Consider rotation of work teams, if possible.

▪ Worker shall be advised to drink one cup water every ten (10) minutes,

▪ No person shall work alone (i.e., isolated) while orange heat stress danger category or
above

As a minimum the requirements as defined in Appendix C shall be implemented.

7.3.Personal Controls
7.3.1. Personal Protective Equipment
Workers should be aware that use of certain personal protective equipment (e.g., certain
types of respirators and impermeable clothing) can increase the risk of heat-related illness. In
some situations, special cooling devices can protect workers in hot environments.

A. Ice Cooling Garments

Example, ice vests, neck/ wrist wrap, etc. may be provided to employees as needed.

B. Clothing

Lightweight, light colored, breathable clothing that covers as much of the body as possible,
shall be worn when working in direct sunlight. In addition, neck protection and sun visors for
safety helmets shall be provided.

Note:

Extra precaution shall be taken when flame-resistant clothing (FRC) is required to be worn.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 10 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

C. Wetted Clothing/Towels

During period of high heat stress potential, CONTRACTOR shall allow the employees to use
towels to wet their normal work clothes as necessary to provide cooling for their body if
situation warrants.

Clothing should be permitted to dry during rest periods.

7.3.2. Employee Awareness, Training and Education

Heat Stress Training

CONTRACTOR shall provide training for workers and supervisors about the hazards of heat
exposure and their prevention.

Training shall emphasize that heat stress can affect an individual’s ability to reason clearly.
This may cause a person to fail to recognize the sign and symptom of heat stress.

The following requirements shall be met:

▪ Ensure all employees attend heat stress training program.

▪ Knowledge of the hazards of heat stress,

▪ Recognition of predisposing factors, danger signs, and symptoms,

▪ Importance of acclimatization, how it is developed, and how your worksite procedures

address it.

▪ Importance of drinking small quantities of water often.

▪ Importance of immediately reporting signs or symptoms of heat-related illness to the

supervisor.

▪ Procedures for responding to possible heat-related illness.

▪ Procedures to follow when contacting emergency medical services.

▪ Employee responsibilities in avoiding heat stress and importance of buddy system.

▪ The danger of using drugs including prescribed medications, in hot workplace.

▪ The importance of engineering and administrative controls in minimizing heat stress.

▪ Use of appropriate PPEs in hot working environment.

▪ The importance of getting enough sleep at night, not avoiding breakfast.

Campaigns and Information

▪ CONTRACTOR shall launch an information campaign in the first week of May by starting to
include in the toolbox meeting topics about working in High Temperature conditions in site
as well as offsite locations i.e., laydown yards, pre-fabrication workshops and
accommodation at the camp.

▪ CONTRACTOR shall post information posters, slogans and other related advertisement
materials.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 11 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

7.3.3. Fluid Replacement – Hydration

The following general preventive measures shall be adopted by CONTRACTOR:

▪ Workers shall have adequate potable, cool (50-60 degrees F) water close to the work area
during all periods of the day.

▪ CONTRACTOR shall ensure that drinking water (sweet water) is wholesome and which
meets the chemical, physical and micro biological section as outlined by the World Health
Organization (WHO).

▪ CONTRACTOR shall make available provision for an additional way to keep the body
hydrated, such as super hydrate.

▪ Employees shall be urged to drink 16ounces (500ml) of water before beginning in the
morning and after lunch as well.

▪ All employees shall be provided with personal water bottles. Disposable drinking cups shall
be provided as a secondary option for visitors and employees

▪ The poster in Appendix D shall be posted at toilets.

Note:

Workers should be encouraged to salt their food well during the hot season and particularly
during hot spells; this is best done via a balanced diet and supply of balanced healthy meals.

Salted drinking water shall not be made available, unless prescribed by a licensed member of
the medical team. Nor shall workers take salt tablets due to potential adverse side effects
(e.g., nausea/vomiting, dehydration).

7.3.4. Recovery
Any employee experiencing symptoms of a heat-related illness shall be allowed to fully
recover in an appropriate recovery area before returning to work. Recovery areas shall be
shaded, cool and supplied with water. Victims of severe heat exhaustion or heat stroke shall
be immediately evacuated to the nearest site clinic with a qualified medical doctor or nurse
who can provide proper treatment.

8. Emergency Procedures
CONTRACTOR shall have an emergency plan in place that specifies what to do if a worker has
signs of heat-related illness and ensures that medical services are available if needed.

Appendix B shows symptoms and first aid measures to be taken if a worker shows signs of a
heat related illness.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 12 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Appendix A – Background to Heat Stress

1. Cause

When a person works in a hot environment, the body must get rid of excess heat to maintain
a stable internal temperature. It does this mainly through circulating blood to the skin and
through sweating.

When the air temperature is close to or warmer than normal body temperature, cooling of the
body becomes more difficult. Blood circulated to the skin cannot lose its heat. Sweating then
becomes the main way the body cools off. But sweating is effective only if the humidity level
is low enough to allow evaporation and if the fluids and salts that are lost are adequately
replaced.

If the body cannot get rid of excess heat, it will store it. When this happens, the body’s core
temperature rises, and the heart rate increases. As the body continues to store heat, the
person begins to lose concentration and has difficulty focusing on a task, may become irritable
or sick, and often loses the desire to drink. The next stage is most often fainting and even
death if the person is not cooled down.

Excessive exposure to heat can cause a range of heat-related illnesses, from heat rash and
heat cramps to heat exhaustion and heat stroke. Heat stroke can result in death and requires
immediate medical attention. Exposure to heat can also increase the risk of injuries because
of sweaty palms, fogged-up safety glasses, dizziness, and burns from hot surfaces or steam.

Age, weight, degree of physical fitness, degree of acclimatization, metabolism, use of alcohol
or drugs, and a variety of medical conditions such as hypertension all affect a person’s
sensitivity to heat. Prior heat injuries can predispose an individual to additional injury.

However, even the type of clothing worn must be considered. It is difficult to predict just who
will be affected and when because individual susceptibility varies. In addition, environmental
factors include more than the ambient air temperature. Radiant heat, air movement,
conduction, and relative humidity all affect an individual’s response to heat.

2. Heat Stroke

Heat Stroke occurs when the body’s system of temperature regulation fails, and body
temperature rises to critical levels. This condition is caused by a combination of highly
variable factors, and its occurrence is difficult to predict. Heat stroke is a medical emergency.

The primary signs and symptoms of heat stroke are confusion; irrational behavior; loss of
consciousness; convulsions; a lack of sweating (usually); hot, dry skin; and an abnormally
high body temperature. If body temperature is too high, it causes death. The elevated
metabolic temperatures caused by a combination of workload and environmental heat load,
both of which contribute to heat stroke, are also highly variable and difficult to predict.

If a worker shows signs of possible heat stroke, professional medical treatment should be
obtained immediately. The worker should be placed in a shady area and the outer clothing
should be removed.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 13 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

The worker’s skin should be wetted and air movement around the worker should be increased
to improve evaporative cooling until professional methods of cooling are initiated and the
seriousness of the condition can be assessed. Fluids should be replaced as soon as possible.
The medical outcome of an episode of heat stroke depends on the victim’s physical fitness and
the timing and effectiveness of first aid treatment.

Regardless of the worker’s protests, no employee suspected of being ill from heat stroke
should be sent home or left unattended unless a physician has specifically approved such an
order.

3. Heat Exhaustion

The signs and symptoms of heat exhaustion are headache, nausea, vertigo, weakness, thirst,
and giddiness. Fortunately, this condition responds readily to prompt treatment. Heat
exhaustion should not be dismissed lightly, however, for several reasons.

One is that the fainting associated with heat exhaustion can be dangerous because the victim
may be operating machinery or controlling an operation that should not be left unattended;
moreover, the victim may be injured when he or she faints.

Also, the signs and symptoms seen in heat exhaustion are similar to those of heat stroke, a
medical emergency.

Workers suffering from heat exhaustion should be removed from the hot environment and
given fluid replacement. They should also be encouraged to get adequate rest.

4. Heat Cramps

Heat Cramps are usually caused by performing hard physical labor in a hot environment.
These cramps have been attributed to an electrolyte imbalance caused by sweating. It is
important to understand that cramps can be caused by both too much and too little salt.

Cramps appear to be caused by the lack of water replenishment. Because sweat is a

hypotonic solution, excess salt can build up in the body, if the water lost through sweating is
not replaced. Thirst cannot be relied on as a guide to the need for water; instead, water must
be taken every 15 to 20 minutes in hot environments.

Under extreme conditions, such as working for 6 to 8 hours in heavy protective gear, a loss of
sodium may occur. Recent studies have shown that drinking commercially available
carbohydrate electrolyte replacement liquids is effective in minimizing physiological
disturbances during recovery.

5. Heat Syncope (fainting)

In heat collapse, the brain does not receive enough oxygen because blood pools in the
extremities. As a result, the exposed individual may lose consciousness. This reaction is
similar to that of heat exhaustion and does not affect the body’s heat balance.

However, the onset of heat collapse is rapid and unpredictable. To prevent heat collapse, the
worker should gradually become acclimatized to the hot environment.

6. Heat Rashes

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 14 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Heat Rashes are the most common problem in hot work environments. Prickly heat is
manifested as red papules and usually appears in areas where the clothing is restrictive. As
sweating increases, these papules give rise to a prickling sensation.

Prickly heat occurs in skin that is persistently wetted by un-evaporated sweat, and heat rash
papules may become infected if they are not treated. In most cases, heat rashes will
disappear when the affected individual returns to a cool environment.

7. Heat Fatigue

A factor that predisposes an individual to heat fatigue is lack of acclimatization. The use of a
program of acclimatization and training for work in hot environments is advisable. The signs
and symptoms of heat fatigue include impaired performance of skilled sensor motor, mental
or vigilance jobs. There is no treatment for heat fatigue except to remove the heat stress
before a more serious heat-related condition develops.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 15 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Appendix B – Symptoms and First Aid Measures to Heat Stress

The chart below shows symptoms and first aid measures to be taken if a worker shows signs
of a heat related illness:

Illness Symptoms First Aid

Heat Stroke • Confusion • Call EMS/ERT team/site

• Fainting clinic
• Seizures
• Excessive sweating or red, While waiting for help:
hot, dry skin • Place worker in shady, cool
• Very high body temperature area
• Loosen clothing, remove
outer clothing
• Fan air on worker; cold
packs in armpits
• Wet worker with cool water;
apply ice packs, cool
compresses, or ice if
available
• Provide fluids (preferably
water) as soon as possible
• Stay with worker until help
arrives.

Heat exhaustion • Cool, moist skin • Have worker sit or lie down
• Heavy sweating in a cool shady area
• Headache • Give worker plenty of water
• Nausea or vomiting or other cool beverages to
• Dizziness drink
• Light headedness • Cool worker with cold
• Weakness compresses/ice packs
• Thirst • Take clinic or emergency
• Irritability Room for medical
• Fast heartbeat evaluation or treatment if
signs or symptoms
• Have worker seek medical
attention if cramps don’t go
away
• Ice packs and Ice jackets
(02 Pcs each) are available
in the site clinic.

Heat cramps • Muscle spasms • Have worker rest in shady,

• Pain - usually in abdomen, cool area
arms or legs • Worker should drink water
or other cool beverages
• Wait a few hours before

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 16 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

allowing worker to return to

strenuous work
• Have worker seek medical
attention if crams don’t go
away

Heat rash • Clusters of red bumps on • Try to work in a cooler, less

skin humid environment when
• Often appears on neck, possible
upper chest, folds of skin • Keep the affected area dry

Heat syncope (fainting) • Light-headedness • Sit or lie down in a cool

• Dizziness place when they begin to
• Fainting feel symptoms.
• Slowly drink water, clear
juice, or a sports beverage.
• If they have or are fainting,
then Call EMS/ERT Team,
notify their supervisor and
make arrangement to
medical facility identified in
the Medical Plan

Remember, if you are not a medical professional; use this information as a guide only to help
workers in need.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 17 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Appendix C – Heat Index

Heat Index

Work:Rest
Danger Heat Minimum Water
Heat Stress illness / symptoms Periods
Category Index Needed*
(minutes)

IV. Extreme >52 Heat stroke imminent 1 cup every

20:10
Danger ** 10 minutes

Heat cramps, heat exhaustion or heat

1 cup every
III. Danger 39 - 51 stroke likely with prolonged exposure 30:10
15 minutes
and physical activity

Heat cramps, heat exhaustion or heat

II. Extreme 1 cup every
30 - 38 stroke possible with prolonged exposure 50:10
Caution 20 minutes
and physical activity

Fatigue possible with prolonged Normal work

1 cup every
I. Caution 25 - 29 exposure and/or physical activity as per
20 minutes
schedule

*1 cup = 250ml

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 18 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 19 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Appendix D – Am I Drinking Enough Water?

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 20 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 21 of 23
 Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

Appendix E – Heat Index Log

This can also be an electronic download from a connected weather station on site - in
agreement with AP EH&S.

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 22 of 23
Project Document Number: PM210011-000-ZP6-00004 Release Purpose: IPE Rev: 00

This document contains information that is PROPRIETARY to Air Products and Chemicals, Inc. and its subsidiaries or affiliates.
This document or its contents may not be copied or disclosed to others without Air Products’ written permission.
Page 23 of 23
