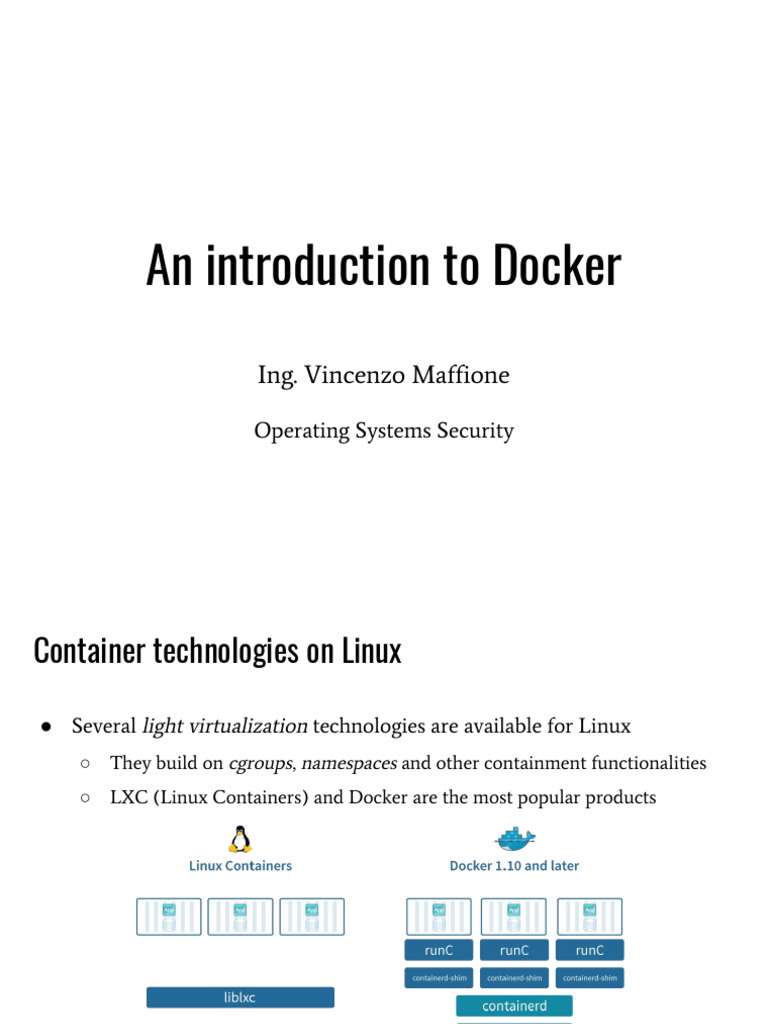

An introduction to Docker

Ing. Vincenzo Maffione

Operating Systems Security

Container technologies on Linux

● Several light virtualization technologies are available for Linux

○ They build on cgroups, namespaces and other containment functionalities
○ LXC (Linux Containers) and Docker are the most popular products
Container vs Virtual Machine

● A VM has emulated hardware and hosts a whole Operating System

(guest), which is separate from the host O.S.
● A container does not emulate any hardware, and shares the O.S. kernel
with the host → less isolation, more efficiency
LXC - Linux Containers

● A set of tools for creating and managing system containers (or, to a lesser extent,
application containers)
○ Supported by virt-manager as a possible hypervisor (even if it’s not)
● The goal of LXC is to provide an execution environment as close as possible to a
standard GNU/LINUX installation, without the need to have a separate Linux
kernel
● Designed for system administrators that are used to work with VMs
○ A LXC (system) container looks like a VM without a boot loader
○ The administrator can move its application stack from a VM to a container
without the need to modify the applications or their configuration
○ Switching from VMs to LXC gives performance gains
○ Storage technologies for LXC and VMs are similar
Docker

● Docker is a tool for creating, managing and orchestrating application

containers
● The goal of Docker is to optimize the process of development, testing,
delivery and deployment of applications, by means of packaging each
application component in a separate container
● Designed for software developers:
○ Takes care of all the steps involved in software development
● Switching from VMs to Docker containers is not immediate
○ It may be necessary to modify the application or its configuration
○ The root of the problem is that the execution environment of a Docker
container it’s not normally a complete UNIX system
Docker architecture

● Client-server architecture to to manage images, containers, volumes and

virtual networks
○ Client and server may run on different machines
○ Architecture is similar to libvirt, but with more functionalities, including the
capability to interact with an image registry (https://hub.docker.com/)
Docker components (I)

● Image
○ An image is a portable template, accessible in read only mode, that has all the
instructions necessary to create a Docker container
○ Contains all the dependencies needed for a software component (code or
binary, run-time, libraries, configuration files, environment variables, …)
○ An image can be defined from a file system archive (tarball)
○ Or it can be defined by extending a previous image with a list of instructions
specified in a text file (known as Dockerfile)
● Docker registry
○ Database to efficiently store images
○ Registries can be public (like DockerHub) or private to an organization
Docker components (II)

● Container
○ A Docker container is an executable instance of a Docker image
■ Defined by the image and the configuration specified at creation time
○ A container can be created, started, stopped, migrated, destroyed, connected
to one or more virtual networks, associated to one or more data volumes ...
○ The container is the unit of application development, testing, delivery and
deployment, assuming that Docker is used as operating support
○ Any modification to the file system visible to a container are not reflected on
the image (image is read-only)
○ It’s possible to define to what extent a container is isolated from the host
■ Access to the host file system and special devices, limitations on memory
allocation and CPU utilization.
Docker components (III)

● Network
○ Virtual networks, implemented by means of virtual switches and iptables
○ Bridge networks limit connectivity to the containers on a single host
○ Overlay networks allow for containers connectivity among different hosts
■ Typically using VXLAN encapsulation

● Volume
○ A volume is a directory that can be associated to one or more containers
○ Its lifespan is independent of the containers that use it
○ Used to share storage across different containers, or anyway storage that can
outlive the user container
Docker components (IV)

● Service
○ A Docker service is a set of containers that are replicas of the same image,
and which together provide a load balanced service
○ Services are used to deploy containers “in production”
○ A service can be scaled up or down depending on the input load
● Stack
○ A set of interdependent services that interact to implement a complete
application:
■ Ex: A web application to share pictures could be made of (i) a service for the
storage and search of pictures; (ii) a service for the web interface for the users;
and (iii) a service to encode/decode pictures
Single-host mode vs swarm mode

● By default, the containers of a Docker stack are deployed only on the host
that runs the dockerd daemon
● However, Docker can also be configured in swarm mode
○ In this case the containers that make up the stack can be placed on all the
nodes of a cluster (a.k.a. swarm)
○ A swarm consists of a swarm manager node and a set of swarm worker nodes
Docker under the hood

● Linux namespaces
○ Normally, each container comes with an instance of each type of namespace
(pid, net, ipc, mnt, uts), to limit the scope of host kernel objects visible to
the container
● Linux cgroups
○ Used to limit the amount of resources assigned to the containers
● Union File Systems
○ File systems that are defined by composition, overlapping different layers
○ Common layers (e.g. base installation of Ubuntu or Fedora) are reused by
many images and containers
■ New containers and new images consume only a small space
■ They can be created very quickly!
Dockerfile

● A text file that contains a recipe to build an image

● An image should be a well-defined component and contain only the
software actually needed for a well-defined task
# Start from an official image with the Python runtime
FROM python:2.7-slim
# Set the container current working directory (PWD) to “/chess”
WORKDIR /chess
# Copy files from current host directory to the /chess directory in the container
ADD . /chess
# Install some packages
RUN apt-get update && apt-get install -y libcgroup acl
# Flag that the software inside this image listens on port 9000
EXPOSE 9000
# Define an environment variable
ENV PLAYER Ghost
# Specify the command to be run inside the container when it’s started
CMD ["python", "./chess.py"]
Structure of a Docker image

● An image is a stack of layers (onion-like structure)

● Each instruction in the Dockerfile adds a layer
○ Each layer stores only the difference w.r.t. the previous layers.
● A read/write container layer gets created on containers creation

# This is a Dockerfile
FROM ubuntu:15.10
COPY . /app
RUN make /app
CMD python /app/app.py
Sharing layers

● When a container is running, any modification to its disk are reflected to

the container layer.
● All the other layers are read-only and can be shared among many
container
Implications of the onion structure

● A container does not take any disk space until it performs some write
operation on the file system
○ In any case it takes only the space needed to store the difference
○ Huge disk space savings compared to VMs and LXC, which both store
images with a monolithic format (e.g. qcow2)
● Creation of new images and containers is extremely fast compared to
VMs and LXC
○ To create a new container it is sufficient to create an empty container layer
Docker networking (I)

● Standard software bridges are used to connect the containers by means of

virtual interfaces (veth pairs in this case)
● The user can create and manage new networks, connect a container to
one or more networks (even while the container is running)
Docker networking (II)

● Each bridge network uses a different IP subnet

● The IP subnet is visible to the host
● Networks use the bridge driver (host-only + NAT) by default
Main Docker commands
How to install Docker

● Install the latest Docker release on Ubuntu 16.04

$ curl -fsSL https://download.docker.com/linux/ubuntu/gpg | sudo apt-key add -
$ sudo add-apt-repository "deb [arch=amd64]
https://download.docker.com/linux/ubuntu $(lsb_release -cs) stable"
$ sudo apt-get update
$ sudo apt-get install docker-ce
$ sudo usermod -aG docker ${YOUR_USERNAME}

● Check that Docker is up and running:

$ sudo systemctl status docker
[...]
Active: active (running) since ...
[...]
Search images in a registry

● Search in a registry (e.g., the default public one)

[user@host ~]$ docker search nginx

○ The output shows a list of images matching the keyword

○ Images are sorted by decreasing number of votes given by Docker users
■ Most popular images first

● Note: An incomplete command shows and help with all the possible
options
[user@host ~]$ docker image
[...]
Commands:
build Build an image from a Dockerfile
history Show the history of an image
import Import the contents from a tarball to create a filesystem image
inspect Display detailed information on one or more images
[...]
Image management

● List the existing images

[user@host ~]$ docker image ls
● Import an image from a registry
[user@host ~]$ docker image pull base/archlinux
● Remove an image (locally)
[user@host ~]$ docker image rm ubuntu
● Show detailed information about an image
[user@host ~]$ docker image inspect ubuntu
● Remove unused images
[user@host ~]$ docker image prune
Building an image from a Dockerfile

● Move to the directory containing the Dockerfile

[user@host ~]$ cd /path/to/dockerfiledir

● Build an image from the Dockerfile in the current directory, giving it a name (tag)
“myimg”
[user@host ~]$ docker build -t myimg .

● The new image will be stored together with the other ones already available on
the host
● Each Dockerfile is normally stored in a separate directory
○ The file name must be “Dockerfile“
Creating and launching containers

● Create a container and launch it (within the same command)

[user@host ~]$ docker run -it --name ubu1 ubuntu /bin/bash

○ The ubuntu argument refers to the name of an available image

○ The /bin/bash argument specifies the command to be run by the container
■ If present it overrides the command specified within the image (CMD)
○ The -t option specifies the allocation of a terminal
○ The -i option specifies that the command is interactive (it’s a shell)
○ The -d option is used to run the container in background
● It is possible to create and launch with separate commands:
[user@host ~]$ docker create -it --name ubu1 ubuntu /bin/bash
[user@host ~]$ docker start -i ubu1
Publication of exposed ports

● An image can expose a TCP/UDP port through the EXPOSE directive in

the Dockerfile
● When a container is launched, it is possible to map each exposed port to
an host port, to enable access from the host external network
● This mapping is specified through the -p option of the run or create
commands
○ Ex: Launch a Web server container exposing port 80, mapping it on the port
8000 of the host
[user@host ~]$ docker run -p 8000:80 apache /usr/bin/apacheserv --daemon
Container management

● Show all the running containers

[user@host ~]$ docker ps
● Show all the containers (in any state)
[user@host ~]$ docker ps -a
○ Includes containers that are not currently running
● Reboot a container (specified by name or ID)
[user@host ~]$ docker restart ubu1
● Stop a container
[user@host ~]$ docker stop ubu1
● Remove a container
[user@host ~]$ docker rm ubu1
● More commands: kill, inspect, pause, unpause, …
● Equivalent commands in canonical form:
[user@host ~]$ docker container COMMAND
Volumes management

● Create a volume called “myvol”

[user@host ~]$ docker volume create myvol
● Remove “myvol”
[user@host ~]$ docker volume rm myvol
● Show the list of volumes available on the host
[user@host ~]$ docker volume ls
● Run a container, making the content of the “myvol” volume available in
the /mntvol path inside the container
[user@host ~]$ docker run -v myvol:/mntvol -it ubuntu /bin/bash
● Run a container, making the content of the host directory
“/home/user/tmp” available in the /mnt path inside the container
[user@host ~]$ docker run -v /home/user/tmp:/mnt -it ubuntu /bin/bash
Data volume containers

● It is possible to create unnamed volumes, implicitly associated to a

container (but still independent on the container lifespan)
○ Ex: Create an unnamed volume, making it available in “/myvol”
[user@host ~]$ docker run -v /myvol --name ubu1 -it ubuntu /bin/bash
○ Actually, a volume name is assigned automatically
● Unnamed volumes can be attached to other containers
○ Ex: Launch a container importing volumes from another container called
ubu1
[user@host ~]$ docker run --volumes-from ubu1 --name ubu2 -it ubuntu /bin/bash
○ The imported volumes are mounted in the ubu2 file system at the same
mountpoints used inside ubu1
● A container like ubu1 is called “Data volume container”
Management of Docker virtual networks

● Show current networks

[user@host ~]$ docker network ls
● Create an user-defined bridge network (“mynet”)
[user@host ~]$ docker network create --subnet=192.168.13.0/24 mynet
● Remove a network
[user@host ~]$ docker network rm mynet
● Attach the ubu2 container to mynet
[user@host ~]$ docker network connect mynet ubu2
● Detach the ubu2 container from mynet
[user@host ~]$ docker network disconnect mynet ubu2
● Launch a container attached to mynet
[user@host ~]$ docker run --network=mynet [options] imagename command
● Launch a container attached to mynet, specifying a static IP
[user@host ~]$ docker run --network=mynet --ip 192.168.13.4 [options] imagename
command
Other commands

● Show total Docker disk usage

[user@host ~]$ docker system df
● System clean up: remove stopped containers, and unused volumes,
networks and images
[user@host ~]$ docker system prune
● Remove all the images and all containers (including the ones in use)
[user@host ~]$ docker rm $(docker ps -a -q)
[user@host ~]$ docker image remove $(docker images -q)
● Show per-container real-time statistics, including utilization of CPU,
memory, network and disk
[user@host ~]$ docker stats
Assignment
Deployment of the fortune service (I)

● The fortune service provides random proverbs and sayings to its clients
● Composed of three server-side programs and a client-side program
● When the client (fortune-client) connects to the main server program
(fortune-serv), the latter first contacts an authentication server
(fortune-auth) to authenticate the client; then it contacts a database
server (fortune-db) to fetch the proverb. Finally fortune-serv forwards
the response back to the client.

2 fortune-auth

1 3

fortune-client fortune-serv
4
6
fortune-db
5
Deployment of the fortune service (II)

● The fortune-serv, fortune-auth and fortune-db programs listen for

TCP connections from any network interface
● They take the TCP port number to listen on as a command line argument
● The fortune-serv also accepts the following command line arguments:
○ IP address and port where the fortune-auth program is listening
○ IP address and port where the fortune-db program is listening
● The fortune-client programs takes as command line arguments the IP
address and port where the fortune-serv program is listening.
● All the programs provide an help (and terminate) if invoked with the “-h” option
Assignment - Part A

1. Deploy the fortune service with Docker in single-host mode, creating a

container for each of the three components (fortune-db, fortune-auth e
fortune-serv)
2. To create the containers, first build an image for each component,
defining proper Dockerfiles.
a. The fortune-serv program needs the fortune-mod package.
3. Run a client from the host
4. Run a client from within an additional container, using a Docker volume
to import the fortune-client program inside the container
Suggestions

● Start from the Dockerfile example in the previous slides (with python)
● Use a different directory for each Dockerfile
● Put all the containers on an user-defined network, and assign them static
IP addresses
○ To check what is the IP address of a container called xyz, use
[user@host ~]$ docker container inspect xyz | grep IPAddress
● Run the containers in interactive mode, to check the terminal output (-it
options of the run command)
● To remove non-running containers (e.g. to make up for mistakes) use:
[user@host ~]$ docker container prune
● Use the Dockerfile ENV directive to extend the PATH environment
variable to include “/usr/games” (i.e., "$PATH:/usr/games")
Lurking bugs

● The fortune-client program also takes an optional “--cookie”

command-line argument
○ A string of alphabetic lowercase character used (somehow) by the server to
identify the anecdote to be selected
● Unfortunately, some bugs in the server-side code can cause the failure of
one or more components with various symptoms
○ Kernel panic
○ Memory exhaustion on the machine where they run
Assignment - Part B

● Figure out how bugs are triggered.

Suggestions:
○ Users reported that there is more than one bug, and they seem to depend on
the value of the first character of the cookie
○ Use per-container CPU stats to check for anomalies/crashes
● On a component crash, take all the actions necessary to restore the
functionality of the fortune service
● Verify that the crash of a component is isolated to its container (the other
containers and the host machine must not be affected)
○ Suggestion: use the --cpus, --memory and --pids-limit options of docker
run to limit the resources assigned to a container (e.g. max 1 CPU, max 100
MB of memory, and max 100 forked processes)
