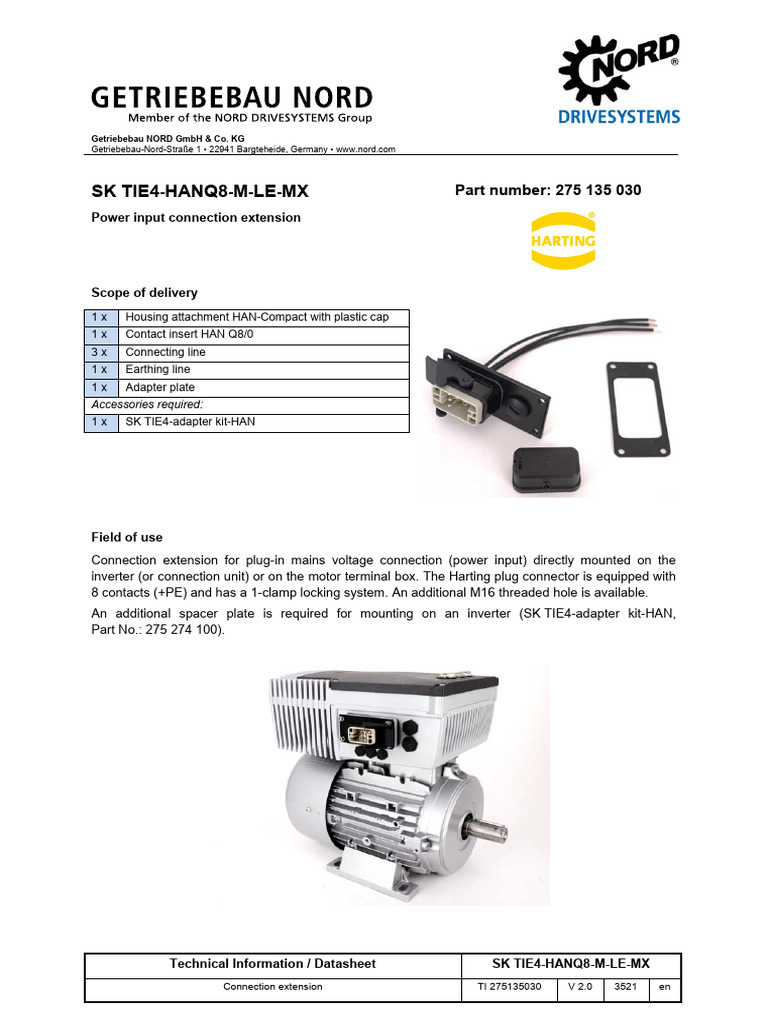

Getriebebau NORD GmbH & Co.

KG
Getriebebau-Nord-Straße 1 • 22941 Bargteheide, Germany • www.nord.com

SK TIE4-HANQ8-M-LE-MX Part number: 275 135 030


Power input connection extension

Scope of delivery

1x Housing attachment HAN-Compact with plastic cap


1x Contact insert HAN Q8/0
3x Connecting line
1x Earthing line
1x Adapter plate
Accessories required:
1x SK TIE4-adapter kit-HAN

Field of use
Connection extension for plug-in mains voltage connection (power input) directly mounted on the
inverter (or connection unit) or on the motor terminal box. The Harting plug connector is equipped with
8 contacts (+PE) and has a 1-clamp locking system. An additional M16 threaded hole is available.
An additional spacer plate is required for mounting on an inverter (SK TIE4-adapter kit-HAN,
Part No.: 275 274 100).

Technical Information / Datasheet SK TIE4-HANQ8-M-LE-MX


Connection extension TI 275135030 V 2.0 3521 en
Connection extension – SK TIE4-HANQ8-M-LE-MX

Technical data

Plug connector type Harting HAN Q8/0


Number of contacts 8 +PE
Cable cross-section 0.14 … 4 mm²
Contact insert Pin insert (M)
Protection class IP65
Rated current 16 A
Rated voltage 500 V

Connections

HAN Q8/0 Potential SK 135E … 175E SK 180E … 190E SK 2xxE


PIN Terminal Terminal Terminal
1 L1 L1 L1 L1
2 L2 L2 L2 L2
3 L3 L3 L3 L3
PE PE PE PE PE

Optional accessories (not contained in the article)


Power plug connector HAN Q8/0 (female) - (Counterpart to the installed plug connector)
Number Designation Manufacturer Information
1x Sleeve housing, HAN-Compact Harting e.g. Harting order number:
19 12 008 0429 (straight cable outlet)
1x Contact insert HAN Q8/0 (socket insert) Harting Harting order number: 09 12 008 3101
4x Crimp contact socket 1.5 mm² Harting Harting order number: 09 33 000 6204
1x HAN-Compact Half cable gland Harting e.g. Harting order number:
19 12 000 5158 (M25 – 14…17 mm)

Information
The optional accessories listed above are recommended by Getriebebau NORD. However, the
accessories cannot be obtained from NORD!

Additional documentation and software (www.nord.com)


Document Designation
BU 0135 Manual for Motor Starters SK 135E, SK 175E
BU 0180 Manual for Frequency Inverters SK 180E, SK 190E
BU 0200 Manual for Frequency Inverters SK 2xxE
TI 275274100 Technical Information SK TIE4-adapter kit-HAN

2/2 TI 275135030 - 3521
