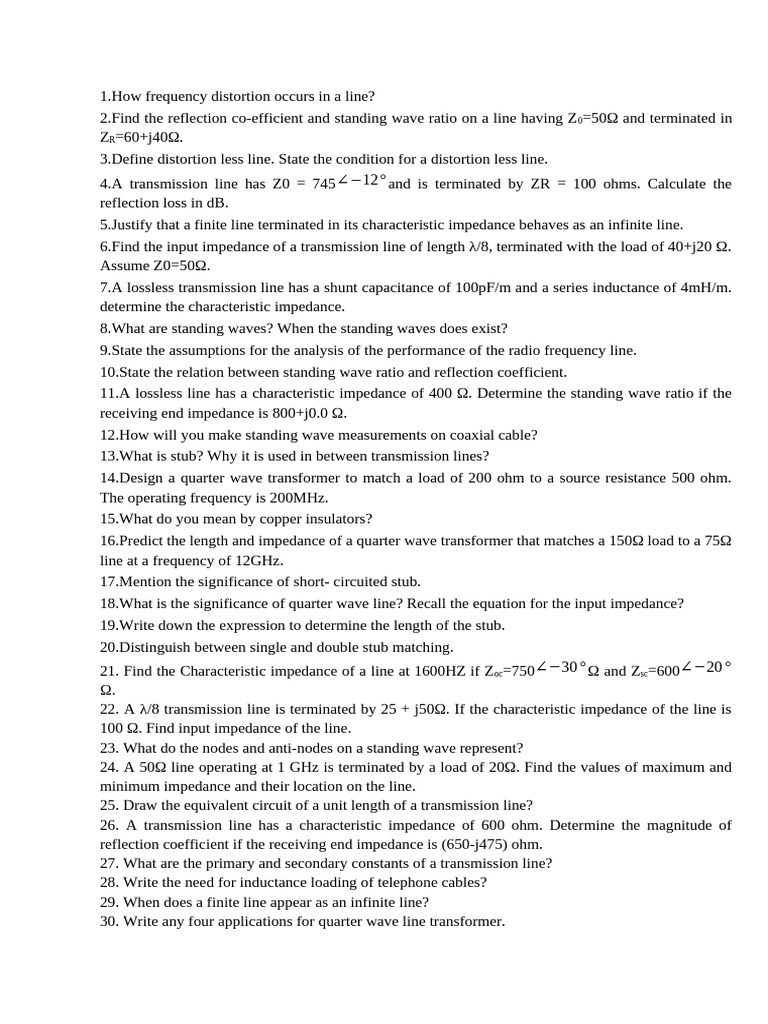

[Link] frequency distortion occurs in a line?
[Link] the reflection co-efficient and standing wave ratio on a line having Z 0=50Ω and terminated in
ZR=60+j40Ω.
[Link] distortion less line. State the condition for a distortion less line.
4.A transmission line has Z0 = 745∠−12° and is terminated by ZR = 100 ohms. Calculate the
reflection loss in dB.
[Link] that a finite line terminated in its characteristic impedance behaves as an infinite line.
[Link] the input impedance of a transmission line of length λ/8, terminated with the load of 40+j20 Ω.
Assume Z0=50Ω.
7.A lossless transmission line has a shunt capacitance of 100pF/m and a series inductance of 4mH/m.
determine the characteristic impedance.
[Link] are standing waves? When the standing waves does exist?
[Link] the assumptions for the analysis of the performance of the radio frequency line.
[Link] the relation between standing wave ratio and reflection coefficient.
11.A lossless line has a characteristic impedance of 400 Ω. Determine the standing wave ratio if the
receiving end impedance is 800+j0.0 Ω.
[Link] will you make standing wave measurements on coaxial cable?
[Link] is stub? Why it is used in between transmission lines?
[Link] a quarter wave transformer to match a load of 200 ohm to a source resistance 500 ohm.
The operating frequency is 200MHz.
[Link] do you mean by copper insulators?
[Link] the length and impedance of a quarter wave transformer that matches a 150Ω load to a 75Ω
line at a frequency of 12GHz.
[Link] the significance of short- circuited stub.
[Link] is the significance of quarter wave line? Recall the equation for the input impedance?
[Link] down the expression to determine the length of the stub.
[Link] between single and double stub matching.
21. Find the Characteristic impedance of a line at 1600HZ if Z oc=750∠−30 ° Ω and Zsc=600∠−20 °
Ω.
22. A λ/8 transmission line is terminated by 25 + j50Ω. If the characteristic impedance of the line is
100 Ω. Find input impedance of the line.
23. What do the nodes and anti-nodes on a standing wave represent?
24. A 50Ω line operating at 1 GHz is terminated by a load of 20Ω. Find the values of maximum and
minimum impedance and their location on the line.
25. Draw the equivalent circuit of a unit length of a transmission line?
26. A transmission line has a characteristic impedance of 600 ohm. Determine the magnitude of
reflection coefficient if the receiving end impedance is (650-j475) ohm.
27. What are the primary and secondary constants of a transmission line?
28. Write the need for inductance loading of telephone cables?
29. When does a finite line appear as an infinite line?
30. Write any four applications for quarter wave line transformer.
