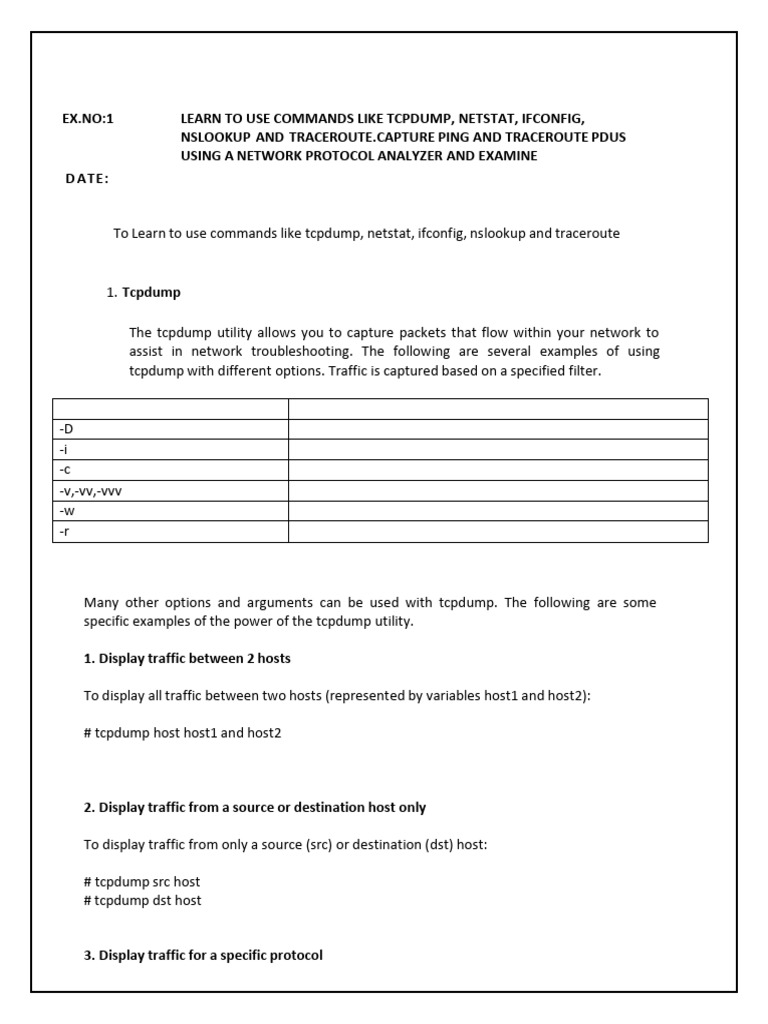

EX.

NO:1 LEARN TO USE COMMANDS LIKE TCPDUMP, NETSTAT, IFCONFIG,

NSLOOKUP AND TRACEROUTE.CAPTURE PING AND TRACEROUTE PDUS
USING A NETWORK PROTOCOL ANALYZER AND EXAMINE
D ATE:

AIM:
To Learn to use commands like tcpdump, netstat, ifconfig, nslookup and traceroute

1. Tcpdump

The tcpdump utility allows you to capture packets that flow within your network to
assist in network troubleshooting. The following are several examples of using
tcpdump with different options. Traffic is captured based on a specified filter.

Options Description
-D Print a list of network interfaces.
-i Specify an interface on which to capture.
-c Specify the number of packets to receive.
-v,-vv,-vvv Increase the level of detail (verbosity).
-w Write captured data to a file.
-r Read captured data from a file.

Many other options and arguments can be used with tcpdump. The following are some
specific examples of the power of the tcpdump utility.

1. Display traffic between 2 hosts

To display all traffic between two hosts (represented by variables host1 and host2):

# tcpdump host host1 and host2

2. Display traffic from a source or destination host only

To display traffic from only a source (src) or destination (dst) host:

# tcpdump src host

# tcpdump dst host

3. Display traffic for a specific protocol

Provide the protocol as an argument to display only traffic for a specific protocol, for example
tcp, udp, icmp, arp:

# tcpdump protocol

For example to display traffic only for the tcp traffic :

# tcpdump tcp

4. Filtering based on source or destination port

To filter based on a source or destination port:
# tcpdump src port ftp
# tcpdump dst port http

2.Netstat

Netstat is a common command line TCP/IP networking available in most versions of Windows,
Linux, UNIX and other operating systems. Netstat provides information and statistics about
protocols in use and current TCP/IP network connections. The Windows help screen
(analogous to a Linux or UNIX for netstat reads as follows:

Displays protocol statistics and current TCP/IP network connections.

NETSTAT -a -b -e -n -o -p proto -r -s -v interval

-a Displays all connections and listening ports.

Displays the executable involved in creating each connection or listening port. In
some cases well-known executables host multiple independent components, and in
these cases the sequence of components involved in creating the connection or
-b
listening port is displayed. In this case the executable name is in [] at the bottom, on
top is the component it called, and so forth until TCP/IP was reached. Note that this
option can be time-consuming and will fail unless you have sufficient permissions.
-e Displays Ethernet statistics. This may be combined with the -s option.
-n Displays addresses and port numbers in numerical form.
-o Displays the owning process ID associated with each connection.
Shows connections for the protocol specified by proto; proto may be any of: TCP,
-p
UDP, TCPv6, or UDPv6. If used with the -s option to display per-protocol statistics,
proto
proto may be any of: IP, IPv6, ICMP, ICMPv6, TCP, TCPv6, UDP, or UDPv6.
-r Displays the routing table.
Displays per-protocol statistics. By default, statistics are shown for IP, IPv6, ICMP,
-s ICMPv6, TCP, TCPv6, UDP, and UDPv6; the -p option may be used to specify a subset
of the default.
When used in conjunction with -b, will display sequence of components involved in
-v
creating the connection or listening port for all executables.
 Redisplays selected statistics, pausing interval seconds between each display. Press
interval CTRL+C to stop redisplaying statistics. If omitted, netstat will print the current
configuration information once.

Syntax:

netstat [-a] [-e] [-n] [-o] [-p Protocol] [-r] [-s] [Interval]

Parameters:

Used without
Displays active TCP connections.
parameters
Displays all active TCP connections and the TCP and UDP ports on which
-a
thecomputer is listening.
-e Displays Ethernet statistics, such as the number of bytes and packets sent and
 received. This parameter can be combined with -s.
Displays active TCP connections, however, addresses and port numbers are
-n
expressed numerically and no attempt is made to determine names.
Displays active TCP connections and includes the process ID (PID) for each
connection. You can find the application based on the PID on the Processes
-o
tab in Windows Task Manager. This parameter can be combined with -a, -n,
and -p.
Shows connections for the protocol specified by Protocol. In this case, the
Protocol can be tcp, udp, tcpv6, or udpv6. If this parameter is used with -s to
-p
display statistics by protocol, Protocol can be tcp, udp, icmp, ip, tcpv6, udpv6,
icmpv6, or ipv6.
Displays statistics by protocol. By default, statistics are shown for the TCP,
UDP, ICMP, and IP protocols. If the IPv6 protocol for Windows XP is installed,
-s
statistics are shown for the TCP over IPv6, UDP over IPv6, ICMPv6, and IPv6
protocols. The -p parameter can be used to specify a set of protocols.
Displays the contents of the IP routing table. This is equivalent to the route
-r
print command.
Redisplays the selected information every Interval seconds. Press CTRL+C to
Interval stop the redisplay. If this parameter is omitted, netstat prints the selected
information only once.
/? - Displays help at the command prompt.

3. Ifconfig

In Windows, ipconfig is a console application designed to run from the Windows

command prompt. This utility allows you to get the IP address information of a Windows
computer. It also allows some control over active TCP/IP connections. Ipconfig replaced the
older winipcfg utility.

Using ipconfig

From the command prompt, type ipconfig to run the utility with default options. The output
of the default command contains the IP address, network mask, and gateway for all physical
and virtual network adapter

Syntax

ipconfig [/all] [/renew [Adapter]] [/release [Adapter]] [/flushdns] [/displaydns] [/registerdns]

[/showclassid Adapter] [/setclassid Adapter [ClassID]]
Parameters
Used without displays the IP address, subnet mask, and default gateway for all adapters.
parameters
/all Displays the full TCP/IP configuration for all adapters. Without This
 parameter, ipconfig displays only the IP address, subnet mask, and default
gateway values for each adapter. Adapters can represent physical interfaces,
such as installed network adapters, or logical interfaces, such as dial-up
connections.
Renews DHCP configuration for all adapters (if an adapter is not specified) or
for a specific adapter if the Adapter parameter is included. This parameter is
/renew
available only on computers with adapters that are configured to obtain an IP
[Adapter]
address automatically. To specify an adapter name, type the adapter name
that appears when you use ipconfig without parameters.
Sends a DHCPRELEASE message to the DHCP server to release the current
DHCP configuration and discard the IP address configuration for either all
adapters (if an adapter is not specified) or for a specific adapter if the Adapter
/release
parameter is included. This parameter disables TCP/IP for adapters
[Adapter]
configured to obtain an IP address automatically. To specify an adapter name,
type the adapter name that appears when you use ipconfig without
parameters.
Flushes and resets the contents of the DNS client resolver cache. During DNS
troubleshooting, you can use this procedure to discard negative cache entries
/flushdns
from the cache, as well as any other entries that have been added
dynamically.
Displays the contents of the DNS client resolver cache, which includes both
entries preloaded from the local Hosts file and any recently obtained
/displaydns resource records for name queries resolved by the computer. The DNS Client
service uses this information to resolve frequently queried names quickly,
before querying its configured DNS servers.
Initiates manual dynamic registration for the DNS names and IP addresses
that are configured at a computer. You can use this parameter to
troubleshoot a failed DNS name registration or resolve a dynamic update
/registerdns
problem between a client and the DNS server without rebooting the client
computer. The DNS settings in the advanced properties of the TCP/IP
protocol determine which names are registered in DNS.
Adapter Displays the DHCP class ID for a specified adapter. To see the DHCP
class ID for all adapters, use the asterisk (*) wildcard character in place of
/showclassid
Adapter. This parameter is available only on computers with adapters that
are configured to obtain an IP address automatically.
Adapter [ClassID] Configures the DHCP class ID for a specified adapter. To set
the DHCP class ID for all adapters, use the asterisk (*) wildcard character in
/setclassid place of Adapter. This parameter is available only on computers with
adapters that are configured to obtain an IP address automatically. If a DHCP
class ID is not specified, the current class ID is removed.

Examples:

Ipconfig To display the basic TCP/IP configuration for all adapters

ipconfig /all To display the full TCP/IP configuration for all adapters
ipconfig /renew "Local Area To renew a DHCP-assigned IP address configuration for only
Connection" the Local Area Connection adapter
To flush the DNS resolver cache when troubleshooting DNS
ipconfig /flushdns
name resolution problems
To display the DHCP class ID for all adapters with names
ipconfig /showclassid Local
that start with Local
ipconfig /setclassid "Local Area To set the DHCP class ID for the Local Area Connection
Connection" TEST adapter to TEST

4. Nslookup

The nslookup (which stands for name server lookup) command is a network utility
program used to obtain information about internet servers. It finds name server information
for domains by querying the Domain Name System.

5. traceroute

Traceroute is a network diagnostic tool used to track the pathway taken by a packet
on an IP network from source to destination. Traceroute also records the time taken for each
hop the packet makes during its route to the destination.
Traceroute uses Internet Control Message Protocol (ICMP) echo packets with variable time to
live (TTL) values. The response time of each hop is calculated. To guarantee accuracy, each
hop is queried multiple times (usually three times) to better measure the response of that
particular hop.

tracert www.google.com

With the tracert command shown above, we're asking tracert to show us the path from the
local computer all the way to the network device with the hostname www.google.com.

Tracing route to www.l.google.com [209.85.225.104]

over a maximum of 30 hops:
1 <1 ms <1 ms <1 ms 10.1.0.1
2 35 ms 19 ms 29 ms 98.245.140.1
3 11 ms 27 ms 9 ms te-0-3.dnv.comcast.net [68.85.105.201]
...
13 81 ms 76 ms 75 ms 209.85.241.37
14 84 ms 91 ms 87 ms 209.85.248.102
15 76 ms 112 ms 76 ms iy-f104.1e100.net [209.85.225.104]
Trace complete.

tracert -j 10.12.0.1 10.29.3.1 10.1.44.1 www.google.com

RESULT:
Thus the study of commands like tcpdump, netstat, ifconfig, nslookup and
traceroute.Capture ping and traceroute PDUs using a network protocol analyzer and examine was
studied.
EX.NO:2 HTTP Web client program to download a web page using TCP Sockets
DATE:

AIM:
To write a HTTP web client program to download a web page using TCP Sockets.

ALGORITHM:
CLIENT SIDE:
Step1: Start the program.
Step2: Create a socket which binds the Ip address of server and the port address to
acquire service.
Step3: After establishing connection send the url to server.
Step4: Open a file and store the received data into the file.
Step5: Close the socket.
Step6: Stop the program.

SERVER SIDE:

Step1: Start the program.

Step2: Create a server socket to activate the port address.
Step3: Create a socket for the server socket which accepts the connection.
Step4: After establishing connection receive url from client.
Step5: Download the content of the url received and send the data to client.
Step6: Close the socket.
Step7: Stop the program

PROGRAM:
import javax.swing.*;
import java.net.*;
import java.awt.image.*;
import javax.imageio.*;
import java.io.*;
import java.awt.image.BufferedImage;
import java.io.ByteArrayOutputStream;
import java.io.File;
import java.io.IOException;
import javax.imageio.ImageIO;
public class Client{
public static void main(String args[]) throws Exception{
Socket soc;
BufferedImage img = null; soc=new
Socket("localhost",4000);
System.out.println("Client is running. ");
try {
System.out.println("Reading image from disk. ");
img = ImageIO.read(new File("digital_image_processing.jpg"));
ByteArrayOutputStream baos = new ByteArrayOutputStream();
ImageIO.write(img, "jpg", baos);
baos.flush();
byte[] bytes = baos.toByteArray();
baos.close(); System.out.println("Sending image to server. ");
OutputStream out = soc.getOutputStream();
DataOutputStream dos = new DataOutputStream(out);
dos.writeInt(bytes.length);
dos.write(bytes, 0, bytes.length);
System.out.println("Image sent to server. ");
dos.close();
out.close();
}catch (Exception e) {
System.out.println("Exception: " + e.getMessage());
soc.close();
}
soc.close();
}
}

SERVER PROGRAM

import java.net.*;
import java.io.*;
import java.awt.image.*;
import javax.imageio.*;
import javax.swing.*;
class Server {
public static void main(String args[]) throws Exception{
ServerSocket server=null;
Socket socket;
server=new ServerSocket(4000);
System.out.println("Server Waiting for image");
socket=server.accept();
System.out.println("Client connected.");
InputStream in = socket.getInputStream();
DataInputStream dis = new DataInputStream(in);
int len = dis.readInt();
System.out.println("Image Size: " + len/1024 + "KB");
byte[] data = new byte[len];
dis.readFully(data);
dis.close();
in.close();
InputStream ian = new ByteArrayInputStream(data);
BufferedImage bImage = ImageIO.read(ian);
JFrame f =new JFrame("Server");
ImageIcon icon = new ImageIcon(bImage);
JLabel l = new JLabel();
l.setIcon(icon);
f.add(l);
f.pack();
f.setVisible(true);
}
}

OUTPUT:
RESULT:
Thus the implementation of HTTP web Client program to download a web page using
TCP Sockets was executed successfully.
EX.NO 3(A) Application using TCP Sockets like ECHO Client and ECHO Server
DATE:

AIM:
To implement a Application using TCP Sockets like ECHO Client and ECHO Server.

ALGORITHM:
CLIENT SIDE:
Step1: Start the program.
Step2: Create a socket which binds the Ip address of server and the port address to
acquire service.
Step3: After establishing connection send a data to server.
Step4: Receive and print the same data from server.
Step5: Close the socket.
Step6: End the program.

SERVER SIDE:

Step1: Start the program.

Step2: Create a server socket to activate the port address.
Step3: Create a socket for the server socket which accepts the connection.
Step4: After establishing connection receive the data from client.
Step5: Print and send the same data to client.
Step6: Close the socket.
Step7: Stop the program.
PROGRAM:
CLIENT SIDE:
import java.io.*;
import java.net.*;
public class EchoServer
{
public EchoServer(int portnum)
{
try
{
server = new ServerSocket(portnum);
}
catch (Exception err)
{
System.out.println(err);
}
}
public void serve()
{
try
{
while (true)
{
Socket client = server.accept();
BufferedReader r = new BufferedReader(new
InputStreamReader(client.getInputStream()));

PrintWriter w = new

PrintWriter(client.getOutputStream(),
true);
w.println("Welcome to the Java EchoServer. Type 'bye'
to
close.");
String line;
do
{
line = r.readLine();
if ( line != null )
w.println("Got: "+ line);
System.out.println (line);
}
while ( !line.trim().equals("bye") );
client.close();
}
}
catch (Exception err)
{
System.err.println(err);
}
}
public static void main(String[] args)
{
EchoServer s = new EchoServer(9999);
s.serve();
}
private ServerSocket server;
}

EchoClient.java :

import java.io.*;
import java.net.*;
public class EchoClient
{
public static void main(String[] args)
{
try
{
Socket s = new Socket("127.0.0.1", 9999);
BufferedReader r = new BufferedReader(new
InputStreamReader(s.getInputStream()));
PrintWriter w = new PrintWriter(s.getOutputStream(), true);
BufferedReader con = new BufferedReader(new
InputStreamReader(System.in));
String line;
do
{
line = r.readLine();
if ( line != null )

System.out.println(line);

line = con.readLine();
w.println(line);
}
while ( !line.trim().equals("bye") );
}
catch (Exception err)
{
System.err.println(err);
}
}
}

OUTPUT:
RESULT:
Thus the implementation of application using TCP Sockets in ECHO Client and ECHO
Server was executed successfully.
EX.NO: 3(B) Application using TCP Sockets in CHAT
DATE:

AIM:
To implement application using TCP Socket in chat

ALGORITHM:
CLIENT SIDE:

Step1: Start the program.

Step2: Include necessary package in java.
Step3: To create a socket in client to server.
Step4: The client establishes a connection to the server.
Step5: The client accept the connection and to send the data from client to server.
Step6: The client communicates the server to send the end of the message.
Step7: Stop the program.

SERVER SIDE:
Step1: Start the program.
Step2: Include necessary package in java.
Step3: To create a socket in server to client.
Step4: The server establishes a connection to the client.
Step5: The server accept the connection and to send the data from server to client and
vice versa.
Step6: The server communicate the client to send the end of the message.
Step7: Stop the program.
Program:
Chatserver.java:

import java.net.*;
import java.io.*;
public class chatserver
{
public static void main(String args[]) throws Exception
{
ServerSocket ss=new ServerSocket(2000);
Socket sk=ss.accept();
BufferedReader cin=new BufferedReader(new
InputStreamReader(sk.getInputStream()));
PrintStream cout=new PrintStream(sk.getOutputStream());
BufferedReader stdin=new BufferedReader(new InputStreamReader(System.in));
String s;
while ( true )
{
s=cin.readLine();
if (s.equalsIgnoreCase("END"))
{
cout.println("BYE");
break;
}
System. out.print("Client : "+s+"\n");
System.out.print("Server : ");
s=stdin.readLine();
cout.println(s);
}
ss.close();
sk.close();
cin.close();
cout.close();
stdin.close();
}
}

Chatclient.java

import java.net.*;
import java.io.*;
public class chatclient
{
public static void main(String args[]) throws Exception
{
Socket sk=new Socket("127.0.0.1",2000);
BufferedReader sin=new BufferedReader(new
InputStreamReader(sk.getInputStream()));
PrintStream sout=new PrintStream(sk.getOutputStream());
BufferedReader stdin=new BufferedReader(new InputStreamReader(System.in));
String s;
while ( true )
{
System.out.print("Client : ");
s=stdin.readLine();
sout.println(s);
s=sin.readLine();
System.out.print("Server : "+s+"\n");
if ( s.equalsIgnoreCase("BYE") )
break;
}
sk.close();
sin.close();
sout.close();
stdin.close();
}
}

OUTPUT:
RESULT:
Thus the implementation of application using TCP Sockets like chat was executed
Successfully.
EX.NO:4 STIMULATION OF DNS USING UDP SOCKETS
DATE:

AIM:
To implement the stimulation of DNS using UDP sockets.
ALGORITHM:
CLIENT SIDE:
Step1: Start the program.
Step2: Create a datagram socket with server’s IP address.
Step3: Create datagram packets with data, data length and the port address.
Step4: Send the datagram packets to server through datagram sockets.
Step5: Receive the datagram packets from server through datagram sockets.
Step6: Close the socket.
Step7: Stop the program.

SERVER SIDE:

Step1: Start the program.

Step2: Create a datagram socket with port address.
Step3: Create datagram packets with data, data length and the port address.
Step4: Send the datagram packets to client through datagram sockets.
Step5: Receive the datagram packets from client through datagram sockets.
Step6: Close the socket.
Step7: Stop the program.

PROGRAM:
DNS SERVER UDP:
import java.io.*;
import java.net.*;
public class dnsserver
{
private static int indexOf(String[] array, String str)
{
str = str.trim();
for (int i=0; i < array.length; i++)
{
if (array[i].equals(str)) return i;
}
return -1;
}
public static void main(String arg[])throws IOException
{
String[] hosts = {"zoho.com", "gmail.com","google.com", "facebook.com"};
String[] ip = {"172.28.251.59", "172.217.11.5","172.217.11.14",
"31.13.71.36"}; System.out.println("Press Ctrl + C to Quit");
while (true)
{
DatagramSocket serversocket=new DatagramSocket(1362);
byte[] senddata = new byte[1021];
byte[] receivedata = new byte[1021];
DatagramPacket recvpack = new DatagramPacket(receivedata,
receivedata.length);
serversocket.receive(recvpack);

String sen = new String(recvpack.getData());

InetAddress ipaddress = recvpack.getAddress();
int port = recvpack.getPort();
String capsent;
System.out.println("Request for host " + sen);
if(indexOf (hosts, sen) != -1)
capsent = ip[indexOf (hosts, sen)];
else
capsent = "Host Not Found"; senddata = capsent.getBytes();
DatagramPacket pack = new DatagramPacket (senddata,
senddata.length,ipaddress,port);
serversocket.send(pack);
serversocket.close();
}
}
}

UDP DNS Client –

import java.io.*;
import java.net.*;
public class dnsclient
{
public static void main(String args[])throws IOException
{
BufferedReader br = new BufferedReader(new
InputStreamReader(System.in));
DatagramSocket clientsocket = new DatagramSocket();
InetAddress ipaddress;
if (args.length == 0)
ipaddress = InetAddress.getLocalHost();
else
ipaddress = InetAddress.getByName(args[0]);
byte[] senddata = new byte[1024];
byte[] receivedata = new byte[1024];
int portaddr = 1362;
System.out.print("Enter the hostname : ");
String sentence = br.readLine();
senddata = sentence.getBytes();
DatagramPacket pack = new DatagramPacket(senddata,senddata.length,
ipaddress,portaddr);
clientsocket.send(pack);
DatagramPacket recvpack =new
DatagramPacket(receivedata,receivedata.length);
clientsocket.receive(recvpack);
String modified = new String(recvpack.getData());
System.out.println("IP Address: " + modified);
clientsocket.close();
}
 }
OUTPUT:

RESULT:
Thus the implementation of stimulation of DNS using UDP sockets was executed
Successfully.
 EX.NO: 5A CODE STIMULATING ARP PROTOCOLS
DATE:

AIM:
To implement cod stimulating ARP Protocols.
ALGORITHM:
CLIENT SIDE:
Step1: Start the program.
Step2: Create socket and establish connection with the server.
Step3: Get the IP address to be converted into MAC address from the user.
Step4: Send this IP address to server.
Step5: Receive the MAC address for the IP address from the server.
Step6: Display the received MAC address.
Step7: Terminate the connection.
Step8: Stop the program.

SERVER SIDE:
Step1: Start the program.
Step2: Create the socket, bind the socket created with IP address and port number and
make it alistening socket.
Step3: Accept the connection request when it is requested by the client.
Step4: Server maintains the table in which IP and corresponding MAC addresses are
Stored.
Step5: Receive the IP address sent by the client.
Step6: Retrieve the corresponding MAC address for the IP address and send it to the
Client.
Step7: Close the connection with the client and now the server becomes a listening
Server waiting for the connection request from other clients.
Step8: Stop the program.
PROGRAM:
import java.io.*;
import java.net.*;
import java.util.*;
class Clientarp
{
public static void main(String args[])
{
try
{
BufferedReader in=new BufferedReader(new InputStreamReader(System.in));
Socket clsct=new Socket("127.0.0.1",5604);
DataInputStream din=new DataInputStream(clsct.getInputStream());
DataOutputStream dout=new
DataOutputStream(clsct.getOutputStream());
System.out.println("Enter the Logical address(IP):");
String str1=in.readLine();
dout.writeBytes(str1+'\n');
String str=din.readLine();
System.out.println("The Physical Address is: "+str);
clsct.close();
}
catch (Exception e)
{
System.out.println(e);
}
}
}

Server:

import java.io.*;
import
java.net.*;
import
java.util.*;
class Serverarp
{
public static void main(String args[])
{
try
{
ServerSocket obj=new
ServerSocket(5604);
Socket obj1=obj.accept();
while(true)
{
DataInputStream din=new DataInputStream(obj1.getInputStream());
DataOutputStream dout=new
DataOutputStream(obj1.getOutputStream()); String str=din.readLine();
String ip[]={"165.165.80.80","165.165.79.1"};
String mac[]={"6A:08:AA:C2","8A:BC:E3:FA"};
for(int i=0;i<ip.length;i++)
{
if(str.equals(ip[i]))
{
dout.writeBytes(mac[i]+'\n');
break;
}
}
obj.close();
}
}
catch(Exception e)
{
System.out.println(e);
}
}
}

OUTPUT:
RESULT:
Thus the implementation of stimulation of DNS using UDP Sockets was executed
successfully.
 EX.NO:5B CODE STIMULTING RARP PROTOCOL
DATE:

AIM:
To implement cod stimulating RARP Protocols.

ALGORITHM:
CLIENT SIDE:
Step1: Start the program.
Step2: Create datagram socket.
Step3: Get the MAC address to be converted into IP address from the user.
Step4: Send this MAC address to server using UDP datagram.
Step5: Receive the datagram from the server and display the corresponding
IP address.
Step6: Stop the program.

SERVER SIDE:
Step1: Start the program.
Step2: Server maintains the table in which IP and corresponding MAC addresses
arestored.
Step3: Create the datagram socket.
Step4: Receive the datagram sent by the client and read the MAC address sent.
Step5: Retrieve the IP address for the received MAC address from the table.
Step6: Display the corresponding IP address.
Step7: Stop the program.
PROGRAM:
CLIENT RARP:
import java.io.*;
import java.net.*;
import java.util.*;
class Clientrarp
{
public static void main(String args[])
{
try
{
DatagramSocket client=new DatagramSocket();
InetAddress addr=InetAddress.getByName("127.0.0.1");
byte[] sendbyte=new byte[1024];
byte[] receivebyte=new byte[1024];
BufferedReader in=new BufferedReader(new InputStreamReader(System.in));
System.out.println("Enter the Physical address (MAC):");
String str=in.readLine(); sendbyte=str.getBytes();
DatagramPacket sender=new
DatagramPacket(sendbyte,sendbyte.length,addr,1309);
client.send(sender);
DatagramPacket receiver=new DatagramPacket(receivebyte,receivebyte.length);
client.receive(receiver);
String s=new String(receiver.getData());
System.out.println("The Logical Address is(IP): "+s.trim());
client.close();
}
catch(Exception e)
{
System.out.println(e);
}
}
}

Server:

import java.io.*;
import java.net.*;
import java.util.*;
class Serverrarp
{
public static void main(String args[])
{
try
{
DatagramSocket server=new DatagramSocket(1309);
while(true)
{
byte[] sendbyte=new byte[1024];
byte[] receivebyte=new byte[1024];
DatagramPacket receiver=new DatagramPacket(receivebyte,receivebyte.length);
server.receive(receiver);
String str=new String(receiver.getData());
String s=str.trim();
InetAddress addr=receiver.getAddress();
int port=receiver.getPort();
String ip[]={"165.165.80.80","165.165.79.1"};
String mac[]={"6A:08:AA:C2","8A:BC:E3:FA"};
for(int i=0;i<ip.length;i++)
{
if(s.equals(mac[i]))
{
sendbyte=ip[i].getBytes();
DatagramPacket sender=new DatagramPacket(sendbyte,sendbyte.length,addr,port);
server.send(sender);
break;
}
}
break;
}
}
catch(Exception e)
{
System.out.println(e);
}
}
}
OUTPUT:
RESULT:
Thus the implementation of RARP Protocols was executed successfully
EX.NO:6 STUDY OF NETWORK SIMULATOR (NS)
DATE:
AIM:
To study about NS2 simulator in detail.

THEORY:

Network Simulator (Version 2), widely known as NS2, is simply an event driven simulation
tool that has proved useful in studying the dynamic nature of communication networks.
Simulation of wired as well as wireless network functions and protocols (e.g., routing
algorithms, TCP, UDP) can be done using NS2. In general, NS2 provides users with a way of
specifying such network protocols and simulating their corresponding behaviors. Due to its
flexibility and modular nature, NS2 has gained constant popularity in the networking research
community since its birth in 1989.

Basic Architecture of NS2:

The above figure shows the basic architecture of NS2. NS2 provides users with an
executable command ns which takes on input argument, the name of a Tcl simulation
scripting file. Users are feeding the name of a Tcl simulation script (which sets up a
simulation) as an input argument of an NS2 executable command ns.

In most cases, a simulation trace file is created, and is used to plot graph and/or to create
animation. NS2 consists of two key languages: C++ and Object-oriented Tool Command
Language (OTcl). While the C++ defines the internal mechanism (i.e., a backend) of the
simulation objects, the OTcl sets up simulation by assembling and configuring the objects as
well as scheduling discrete events (i.e., a frontend).

The C++ and the OTcl are linked together using TclCL. Mapped to a C++ object,
variables in the OTcl domains are sometimes referred to as handles. Conceptually, a handle
(e.g., n as a Node handle) is just a string (e.g.,_o10) in the OTcl domain, and does not
contain any functionality. instead, the functionality (e.g., receiving a packet) is defined in
the mapped C++ object (e.g., of class Connector). In the OTcl domain, a handle acts as a
frontend which interacts with users and other OTcl objects. It may defines its own
procedures and variables to facilitate the interaction. Note that the member procedures and
variables in the OTcl domain are called instance procedures (instprocs) and instance
variables (instvars), respectively

Tcl scripting:

• Tcl is a general purpose scripting language. [Interpreter]

• Tcl runs on most of the platforms such as Unix, Windows, and Mac.

• The strength of Tcl is its simplicity.

• It is not necessary to declare a data type for variable prior to the usage

Basics of TCL
Syntax: command arg1 arg2 arg3
Hello World!
puts stdout{Hello, World!}
Hello, World!

Variables

Command Substitution
set a 5 set len [string length foobar]
set b $a set len [expr [string length foobar] + 9]

Simple Arithmetic
expr 7.2 / 4
Procedures
proc Diag {a b} {
set c [expr sqrt($a * $a + $b * $b)]

return $c }
puts ―Diagonal of a 3, 4 right triangle is [Diag 3 4]‖
Output: Diagonal of a 3, 4 right triangle is 5.0

Loops

while{$i < $n} { for {set i 0} {$i < $n} {incr i}

... {
} ...
}

NS Simulator Preliminaries.
1. Initialization and termination aspects of the ns simulator.
2. Definition of network nodes, links, queues and topology.
3. Definition of agents and of applications.
4. The nam visualization tool.
5. Tracing and random variables.

Initialization and Termination of TCL Script in NS-2

An ns simulation starts with the command

set ns [new Simulator]

Which is thus the first line in the tcl script? This line declares a new variable as using the set
command, you can call this variable as you wish, In general people declares it as ns because
it is an instance of the Simulator class, so an object the code[new Simulator] is indeed the
installation of the class Simulator using the reserved word new.

In order to have output files with data on the simulation (trace files) or files used for
visualization (nam files), we need to create the files using ―”open” command:
#Open the Trace file

set tracefile1 [open out.tr w]

 $ns trace-all $tracefile1
#Open the NAM trace file

set namfile [open out.nam w]

$ns namtrace-all $namfile

The above creates a dta trace file called ―out.tr‖ and a nam visualization trace file called
―out.nam‖.Within the tcl script,these files are not called explicitly by their names, but
instead by pointers that are declared above and called ―tracefile1 and ―nam file
respectively. Remark that they begins with a # symbol.The second line open the file ―out.tr‖
to be used for writing, declared with the letter ―w‖.The third line uses a simulator method
called trace-all that have as parameter the name of the file where the traces will go.
The last line tells the simulator to record all simulation traces in NAM input format. It
also gives the file name that the trace will be written to later by the command $ns flush-trace.
In our case, this will be the file pointed at by the pointer ―$namfile ,i.e the file ―out.tr‖.
The termination of the program is done using a ―finish‖ procedure.
#Define a ‘finish’ procedure

Proc finish { } {
global ns tracefile1 namfile
$ns flush-trace
Close $tracefile1
Close $namfile
Exec nam out.nam &
Exit 0

The word proc declares a procedure in this case called finish and without arguments. The
word global is used to tell that we are using variables declared outside the procedure. The
simulator method ―flush-trace” will dump the traces on the respective files. The tcl command

―close” closes the trace files defined before and exec executes the nam program for
visualization.
The command exit will ends the application and return the number 0 as status to the system.
Zero
is the default for a clean exit. Other values can be used to say that is a exit because something
fails.

At the end of ns program we should call the procedure ―finish‖ and specify at what time
the termination should occur. For example,

$ns at 125.0 “finish”

will be used to call ―finish‖ at time 125sec.Indeed,the at method of the simulator allows us
to
schedule events explicitly.
The simulation can then begin using the command

$ns run

Definition of a network of links and nodes

The way to define a node is

set n0 [$ns node]

The node is created which is printed by the variable n0. When we shall refer to that node in
the
script we shall thus write $n0.
Once we define several nodes, we can define the links that connect them. An example of
a definition of a link is:

$ns duplex-link $n0 $n2 10Mb 10ms DropTail

Which means that $n0 and $n2 are connected using a bi-directional link that has 10ms
of propagation delay and a capacity of 10Mb per sec for each direction. To define a
directional link instead of a bi-directional one, we should replace “duplexlink” by “simplex-
link”.
In NS, an output queue of a node is implemented as a part of each link whose input is
that node. The definition of the link then includes the way to handle overflow at that queue.
In our case, if the buffer capacity of the output queue is exceeded then the last packet to

arrive is dropped. Many alternative options exist, such as the RED (Random Early Discard)
mechanism, the FQ (Fair Queuing), the DRR (Deficit Round Robin), the stochastic Fair
Queuing (SFQ) and the CBQ (which including a priority and a round-robin scheduler).
 In ns, an output queue of a node is implemented as a part of each link whose input is that
node. We should also define the buffer capacity of the queue related to each link. An example
would be:

#set Queue Size of link (n0-n2) to 20

$ns queue-limit $n0 $n2 20

Agents and Applications

We need to define routing (sources, destinations) the agents (protocols) the application
that use them

FTP over TCP

TCP is a dynamic reliable congestion control protocol. It uses Acknowledgements created by
the destination to know whether packets are well received. There are number variants of the
TCP protocol, such as Tahoe, Reno, NewReno, Vegas. The type of agent appears in the first
line:

set tcp [new Agent/TCP]

The command $ns attach-agent $n0 $tcp defines the source node of the tcp connection.
The command

set sink [new Agent /TCPSink]

Defines the behavior of the destination node of TCP and assigns to it a pointer called sink

#Setup a UDP connection

set udp [new Agent/UDP]

$ns attach-agent $n1 $udp
set null [new Agent/Null]
$ns attach-agent $n5 $null
$ns connect $udp $null
$udp set fid_2
#setup a CBR over UDP connection

set cbr [new

Application/Traffic/CBR]
$cbr attach-agent $udp
$cbr set packetsize_ 100
$cbr set rate_ 0.01Mb
$cbr set random_ false

Above shows the definition of a CBR application using a UDP agent. The command
$ns attach-agent $n4 $sink defines the destination node. The command $ns connect $tcp
$sink finally makes the TCP connection between the source and destination nodes.

TCP has many parameters with initial fixed defaults values that can be changed if
mentioned explicitly. For example, the default TCP packet size has a size of 1000bytes.This
can be changed to another value, say 552bytes, using the command $tcp set packetSize_ 552.
When we have several flows, we may wish to distinguish them so that we can identify them
with different colors in the visualization part. This is done by the command $tcp set fid_ 1 that
assigns to the TCP connection a flow identification of “1”.We shall later give the flow
identification of “2” to the UDP connection.

CBR over UDP

A UDP source and destination is defined in a similar way as in the case of TCP. Instead of
defining the rate in the command $cbr set rate_ 0.01Mb, one can define the time interval
between transmission of packets using the command.

$cbr set interval_ 0.005

The packet size can be set to some value using

$cbr set packetSize_ <packet size>

Scheduling Events
NS is a discrete event based simulation. The tcp script defines when event should occur.
The initializing command set ns [new Simulator] creates an event scheduler, and events are
then scheduled using the format:
 $ns at <time> <event>
The scheduler is started when running ns that is through the command $ns run. The beginning
and end of the FTP and CBR application can be done through the following command

$ns at 0.1 “$cbr start”

$ns at 1.0 “ $ftp start”
$ns at 124.0 “$ftp stop”
$ns at 124.5 “$cbr stop”

RESULT:
Thus the Network Simulator 2 is studied in detail.
EX.NO:7 STUDY THE TCP/UDP PERFORMANCE
DATE:

AIM:
To study the TCP/UDP Performance.

STUDY – 1 TCP

The transmission Control Protocol (TCP) is one of the most important protocols of Internet
Protocols suite. It is most widely used protocol for data transmission in communication
network such as internet.

Features

 TCP is reliable protocol. That is, the receiver always sends either positive or negative
acknowledgement about the data packet to the sender, so that the sender always has
bright clue about whether the data packet is reached the destination or it needs to resend
it.
 TCP ensures that the data reaches intended destination in the same order it was sent.
 TCP is connection oriented. TCP requires that connection between two remote points
be established before sending actual data.
 TCP provides error-checking and recovery mechanism.
 TCP provides end-to-end communication.
 TCP provides flow control and quality of service.
 TCP operates in Client/Server point-to-point mode.
 TCP provides full duplex server, i.e. it can perform roles of both receiver and sender.

Header

The length of TCP header is minimum 20 bytes long and maximum 60 bytes.

 Source Port (16-bits) - It identifies source port of the application process on the
sending device.
 Destination Port (16-bits) - It identifies destination port of the application process on
the receiving device.
 Sequence Number (32-bits) - Sequence number of data bytes of a segment in a session.
 Acknowledgement Number (32-bits) - When ACK flag is set, this number contains
the next sequence number of the data byte expected and works as acknowledgement of
the previous data received.
  Data Offset (4-bits) - This field implies both, the size of TCP header (32-bit words)
and the offset of data in current packet in the whole TCP segment.
 Reserved (3-bits) - Reserved for future use and all are set zero by default.
 Flags (1-bit each)
o NS - Nonce Sum bit is used by Explicit Congestion Notification signaling
process.
o CWR - When a host receives packet with ECE bit set, it sets Congestion
Windows Reduced to acknowledge that ECE received.
o ECE -It has two meanings:
 If SYN bit is clear to 0, then ECE means that the IP packet has its CE
(congestion experience) bit set.
 If SYN bit is set to 1, ECE means that the device is ECT capable.
o URG - It indicates that Urgent Pointer field has significant data and should be
processed.
o ACK - It indicates that Acknowledgement field has significance. If ACK is
cleared to 0, it indicates that packet does not contain any acknowledgement.
o PSH - When set, it is a request to the receiving station to PUSH data (as soon
as it comes) to the receiving application without buffering it.
o RST - Reset flag has the following features:
 It is used to refuse an incoming connection.
 It is used to reject a segment.
 It is used to restart a connection.
o SYN - This flag is used to set up a connection between hosts.
o FIN - This flag is used to release a connection and no more data is exchanged
thereafter. Because packets with SYN and FIN flags have sequence numbers,
they are processed in correct order.
 Windows Size - This field is used for flow control between two stations and indicates
the amount of buffer (in bytes) the receiver has allocated for a segment, i.e. how much
data is the receiver expecting.
 Checksum - This field contains the checksum of Header, Data and Pseudo Headers.
 Urgent Pointer - It points to the urgent data byte if URG flag is set to 1.
 Options - It facilitates additional options which are not covered by the regular header.
Option field is always described in 32-bit words. If this field contains data less than 32-
bit, padding is used to cover the remaining bits to reach 32-bit boundary.

Addressing

TCP communication between two remote hosts is done by means of port numbers (TSAPs).
Ports numbers can range from 0 – 65535 which are divided as:

 System Ports (0 – 1023)

 User Ports ( 1024 – 49151)
 Private/Dynamic Ports (49152 – 65535)
Connection Management

TCP communication works in Server/Client model. The client initiates the connection
and the server either accepts or rejects it. Three-way handshaking is used for connection
management.

Establishment

Client initiates the connection and sends the segment with a Sequence number. Server
acknowledges it back with its own Sequence number and ACK of client’s segment which is
one more than client’s Sequence number. Client after receiving ACK of its segment sends an
acknowledgement of Server’s response.

Release

Either of server and client can send TCP segment with FIN flag set to 1. When the
receiving end responds it back by Acknowledging FIN, that direction of TCP communication
is closed and connection is released.
Bandwidth Management

TCP uses the concept of window size to accommodate the need of Bandwidth
management. Window size tells the sender at the remote end, the number of data byte segments
the receiver at this end can receive. TCP uses slow start phase by using window size 1 and
increases the window size exponentially after each successful communication.

For example, the client uses windows size 2 and sends 2 bytes of data. When the
acknowledgement of this segment received the windows size is doubled to 4 and next sent the
segment sent will be 4 data bytes long. When the acknowledgement of 4-byte data segment is
received, the client sets windows size to 8 and so on.

If an acknowledgement is missed, i.e. data lost in transit network or it received NACK,

then the window size is reduced to half and slow start phase starts again.

Error Control &and Flow Control

TCP uses port numbers to know what application process it needs to handover the data
segment. Along with that, it uses sequence numbers to synchronize itself with the remote host.
All data segments are sent and received with sequence numbers. The Sender knows which last
data segment was received by the Receiver when it gets ACK. The Receiver knows about the
last segment sent by the Sender by referring to the sequence number of recently received
packet.

If the sequence number of a segment recently received does not match with the
sequence number the receiver was expecting, then it is discarded and NACK is sent back. If
two segments arrive with the same sequence number, the TCP timestamp value is compared to
make a decision.

Multiplexing

The technique to combine two or more data streams in one session is called
Multiplexing. When a TCP client initializes a connection with Server, it always refers to a well-
defined port number which indicates the application process. The client itself uses a randomly
generated port number from private port number pools.

Using TCP Multiplexing, a client can communicate with a number of different

application process in a single session. For example, a client requests a web page which in turn
contains different types of data (HTTP, SMTP, FTP etc.) the TCP session timeout is increased
and the session is kept open for longer time so that the three-way handshake overhead can be
avoided.

This enables the client system to receive multiple connection over single virtual
connection. These virtual connections are not good for Servers if the timeout is too long.

Congestion Control

When large amount of data is fed to system which is not capable of handling it, congestion
occurs. TCP controls congestion by means of Window mechanism. TCP sets a window size
telling the other end how much data segment to send. TCP may use three algorithms for
congestion control:
  Additive increase, Multiplicative Decrease
 Slow Start
 Timeout React

Timer Management

TCP uses different types of timer to control and management various tasks:

Keep-alive timer:

 This timer is used to check the integrity and validity of a connection.

 When keep-alive time expires, the host sends a probe to check if the connection still
exists.

Retransmission timer:

 This timer maintains stateful session of data sent.

 If the acknowledgement of sent data does not receive within the Retransmission time,
the data segment is sent again.

Persist timer:

 TCP session can be paused by either host by sending Window Size 0.

 To resume the session a host needs to send Window Size with some larger value.
 If this segment never reaches the other end, both ends may wait for each other for
infinite time.
 When the Persist timer expires, the host re-sends its window size to let the other end
know.
 Persist Timer helps avoid deadlocks in communication.

Timed-Wait:

 After releasing a connection, either of the hosts waits for a Timed-Wait time to
terminate the connection completely.
 This is in order to make sure that the other end has received the acknowledgement of
its connection termination request.
 Timed-out can be a maximum of 240 seconds (4 minutes).

Crash Recovery

TCP is very reliable protocol. It provides sequence number to each of byte sent in segment. It
provides the feedback mechanism i.e. when a host receives a packet, it is bound to ACK that
packet having the next sequence number expected (if it is not the last segment).

When a TCP Server crashes mid-way communication and re-starts its process it sends TPDU
broadcast to all its hosts. The hosts can then send the last data segment which was never
unacknowledged and carry onwards.
 STUDY – 2 UDP

The User Datagram Protocol (UDP) is simplest Transport Layer communication protocol
available of the TCP/IP protocol suite. It involves minimum amount of communication
mechanism. UDP is said to be an unreliable transport protocol but it uses IP services which
provides best effort delivery mechanism.

In UDP, the receiver does not generate an acknowledgement of packet received and in turn,
the sender does not wait for any acknowledgement of packet sent. This shortcoming makes this
protocol unreliable as well as easier on processing.

Requirement of UDP

A question may arise, why do we need an unreliable protocol to transport the data? We
deploy UDP where the acknowledgement packets share significant amount of bandwidth along
with the actual data. For example, in case of video streaming, thousands of packets are
forwarded towards its users. Acknowledging all the packets is troublesome and may contain
huge amount of bandwidth wastage. The best delivery mechanism of underlying IP protocol
ensures best efforts to deliver its packets, but even if some packets in video streaming get lost,
the impact is not calamitous and can be ignored easily. Loss of few packets in video and voice
traffic sometimes goes unnoticed.

Features

 UDP is used when acknowledgement of data does not hold any significance.
 UDP is good protocol for data flowing in one direction.
 UDP is simple and suitable for query based communications.
 UDP is not connection oriented.
 UDP does not provide congestion control mechanism.
 UDP does not guarantee ordered delivery of data.
 UDP is stateless.
 UDP is suitable protocol for streaming applications such as VoIP, multimedia
streaming.

UDP Header

UDP header is as simple as its function.

UDP header contains four main parameters:

 Source Port - This 16 bits information is used to identify the source port of the packet.
 Destination Port - This 16 bits information, is used identify application level service
on destination machine.
 Length - Length field specifies the entire length of UDP packet (including header). It
is 16-bits field and minimum value is 8-byte, i.e. the size of UDP header itself.

 Checksum - This field stores the checksum value generated by the sender before
sending. IPv4 has this field as optional so when checksum field does not contain any
value it is made 0 and all its bits are set to zero.

UDP application

Here are few applications where UDP is used to transmit data:

 Domain Name Services
 Simple Network Management Protocol
 Trivial File Transfer Protocol
 Routing Information Protocol
 Kerberos

RESULT:
Thus, We studied in detail about the Performance of TCP and UDP protocols.
EX.NO: 8A SIMULATION OF DISTANCE VECTOR/LINK STATE ROUTING
DATE:
.
AIM:
To simulate and study the link state routing algorithm using simulation using NS2.

Distance Vector routing protocol

Routing is the process of selecting best paths in a network. In the past, the term
routing was also used to mean forwarding network traffic among networks. However this
latter function is muchbetter described as simply forwarding. Routing is performed for
many kinds of networks, including the telephone network (circuit switching), electronic
data networks (such as the Internet), and transportation networks. This article is concerned
primarily with routing in electronic data networks using packet switching technology
.In packet switching networks, routing directs packet forwarding (the transit of logically
addressed network packets from their source toward their ultimate destination) through
intermediate nodes. Intermediate nodes are typically network hardware devices such as
routers, bridges, gateways, firewalls, or switches. General-purpose computers can also
forward packets and perform routing, though they are not specialized hardware and may
suffer from limited performance. The routing process usually directs forwarding on the
basis of routing tables which maintain a record of the routes to various network destinations.
Thus, constructing routing tables, which are held in the router's memory, is very important
for efficient routing. Most routing algorithms use only one network path at a time.
Multipath routing techniques enable the use of multiple alternative paths. In case of
overlapping/equal routes, the following elements are considered in order to decide
which routes get installed into the routing table (sorted by priority):
1. Prefix-Length: where longer subnet masks are preferred (independent of whether it is
within a routing
protocol or over different routing protocol)
2. Metric: where a lower metric/cost is preferred (only valid within one and the same
routing protocol)
3. Administrative distance: where a lower distance is preferred (only valid between
different routing protocols) Routing, in a more narrow sense of the term, is often
contrasted with bridging in its assumption that network addresses are structured and that
similar addresses imply proximity within the network. Structured addresses allow a single
routing table entry to represent the route to a group of devices. In large networks,
structured addressing (routing, in the narrow sense) outperforms unstructured
addressing (bridging). Routing has become the dominant form of addressing on the
Internet. Bridging is still widely used within localized environments.

Algorithm
There are several variants of flooding algorithm. Most work roughly
as follows:
1. Each node acts as both a transmitter and a receiver.
2. Each node tries to forward every message to every one of its neighbours except the
source node. This results in every message eventually being delivered to all reachable
parts of the network. Algorithms may need to be more complex than this, since, in
some case, precautions have to be taken to avoid wasted duplicate deliveries and
infinite loops, and to allow messages to eventually expire from the system. A variant
of flooding called selective flooding partially addresses these issues by only sending
packets to routers in the same direction. In selective flooding the routers don't send
every incoming packet on every line but only on those lines which are going
approximately in the right direction.

Program:
set ns [new Simulator]

set nf [open out.nam w]

$ns namtrace-all $nf

set tr [open out.tr w]

$ns trace-all $tr

proc finish {} {
global nf ns tr
$ns flush-trace
close $tr
exec nam out.nam &
exit 0
}

set n0 [$ns node]

set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]

$ns duplex-link $n0 $n1 10Mb 10ms DropTail

$ns duplex-link $n1 $n3 10Mb 10ms DropTail
$ns duplex-link $n2 $n1 10Mb 10ms DropTail

$ns duplex-link-op $n0 $n1 orient right-down

$ns duplex-link-op $n1 $n3 orient right
$ns duplex-link-op $n2 $n1 orient right-up

set tcp [new Agent/TCP]

$ns attach-agent $n0 $tcp

set ftp [new Application/FTP]

$ftp attach-agent $tcp

set sink [new Agent/TCPSink]

$ns attach-agent $n3 $sink

set udp [new Agent/UDP]

$ns attach-agent $n2 $udp

set cbr [new Application/Traffic/CBR]

$cbr attach-agent $udp

set null [new Agent/Null]

$ns attach-agent $n3 $null

$ns connect $tcp $sink

$ns connect $udp $null

$ns rtmodel-at 1.0 down $n1 $n3

$ns rtmodel-at 2.0 up $n1 $n3

$ns rtproto DV

$ns at 0.0 "$ftp start"

$ns at 0.0 "$cbr start"

$ns at 5.0 "finish"

$ns run

RESULT:
Thus the Distance Vector Routing Algorithm was Simulated and studied.
 EX.N0:8B SIMULATION OF DISTANCE VECTOR/LINK STATE ROUTING.
DATE:

AIM:
To simulate and study the link state routing algorithm using simulation using NS2.

Link State Routing protocol

In link state routing, each router shares its knowledge of its neighborhood with every other
router in the
internet work. (i) Knowledge about Neighborhood: Instead of sending its entire routing table
a router sends
info about its neighborhood only. (ii) To all Routers: each router sends this information to
every other router
on the internet work not just to its neighbor .It does so by a process called flooding.
(iii)Information sharing
when there is a change: Each router sends out information about the neighbors when there is
change.

ALGORITHM:
1. Create a simulator object
2. Define different colors for different data flows
3. Open a nam trace file and define finish procedure then close the trace file, and execute
nam on trace file.
4. Create n number of nodes using for loop
5. Create duplex links between the nodes
6. Setup UDP Connection between n(0) and n(5)
7. Setup another UDP connection between n(1) and n(5)
8. Apply CBR Traffic over both UDP connections
9. Choose Link state routing protocol to transmit data from sender to receiver.
10. Schedule events and run the program.

Program:
set ns [new Simulator]

set nf [open out.nam w]

$ns namtrace-all $nf

set tr [open out.tr w]

$ns trace-all $tr

proc finish {} {
global nf ns tr
$ns flush-trace
close $tr
exec nam out.nam &
exit 0
}

set n0 [$ns node]

set n1 [$ns node]
set n2 [$ns node]
set n3 [$ns node]
$ns duplex-link $n0 $n1 10Mb 10ms DropTail
$ns duplex-link $n1 $n3 10Mb 10ms DropTail
$ns duplex-link $n2 $n1 10Mb 10ms DropTail

$ns duplex-link-op $n0 $n1 orient right-down

$ns duplex-link-op $n1 $n3 orient right
$ns duplex-link-op $n2 $n1 orient right-up

set tcp [new Agent/TCP]

$ns attach-agent $n0 $tcp

set ftp [new Application/FTP]

$ftp attach-agent $tcp

set sink [new Agent/TCPSink]

$ns attach-agent $n3 $sink

set udp [new Agent/UDP]

$ns attach-agent $n2 $udp

set cbr [new Application/Traffic/CBR]

$cbr attach-agent $udp

set null [new Agent/Null]

$ns attach-agent $n3 $null

$ns connect $tcp $sink

$ns connect $udp $null

$ns rtmodel-at 1.0 down $n1 $n3

$ns rtmodel-at 2.0 up $n1 $n3

$ns rtproto LS

$ns at 0.0 "$ftp start"

$ns at 0.0 "$cbr start"

$ns at 5.0 "finish"

$ns run

RESULT:
Thus the program for creating Simulation of Distance Vector/Link State
Routing was implemented.
EX.NO:9 STIMULATION OF AN ERROR CORRECTION CODE(LIKE CRC)
DATE:

AIM:
To implement the stimulation of an error correction code(like CRC)
ALGORITHM:
Step1: Start the program.
Step2: Open the editor and type the program for error detection.
Step3: Get the input in the form of bits.
Step4: Append the redundancy bits.
Step5: Divide the appended data using a divisor polynomial.
Step6: The resulting data should be transmitted to the receiver.
Step7: At the receiver the received data is entered.
Step8: The same process is repeated at the receiver.
Step9: If the remainder is zero there is no error otherwise there is some error in the
received bits.
Step10: Run the program.
Step11: Stop the program.
PROGRAM:
import java.io.*;
class CRC
{
public static void main(String args[]) throws IOException

{
BufferedReader br = new BufferedReader(new InputStreamReader(System.in));
System.out.println("Enter Generator:");
String gen = br.readLine();
System.out.println("Enter Data:");
String data = br.readLine();
String code = data;
while(code.length() < (data.length() + gen.length() - 1))
code = code + "0";
code = data + div(code,gen);
System.out.println("The transmitted Code Word is: " + code);
System.out.println("Please enter the received Code Word: ");
String rec = br.readLine();
if(Integer.parseInt(div(rec,gen)) == 0)
System.out.println("The received code word contains no errors.");
else
System.out.println("The received code word contains errors.");
}
static String div(String num1,String num2)
{
int pointer = num2.length();
String result = num1.substring(0, pointer);
String remainder = "";
for(int i = 0; i < num2.length(); i++)
{
if(result.charAt(i) == num2.charAt(i))
remainder += "0";
else
 remainder += "1";

}
while(pointer < num1.length())
{
if(remainder.charAt(0) == '0')
{
remainder = remainder.substring(1, remainder.length());
remainder = remainder + String.valueOf(num1.charAt(pointer));
pointer++;
}
result = remainder;
remainder = "";
for(int i = 0; i < num2.length(); i++)
{
if(result.charAt(i) == num2.charAt(i))
remainder += "0";
else
remainder += "1";
}
}
return remainder.substring(1,remainder.length());
}
}
OUTPUT:

RESULT:
Thus the implementation of stimulation of an error correction code (like CRC) was
executed successfully.
