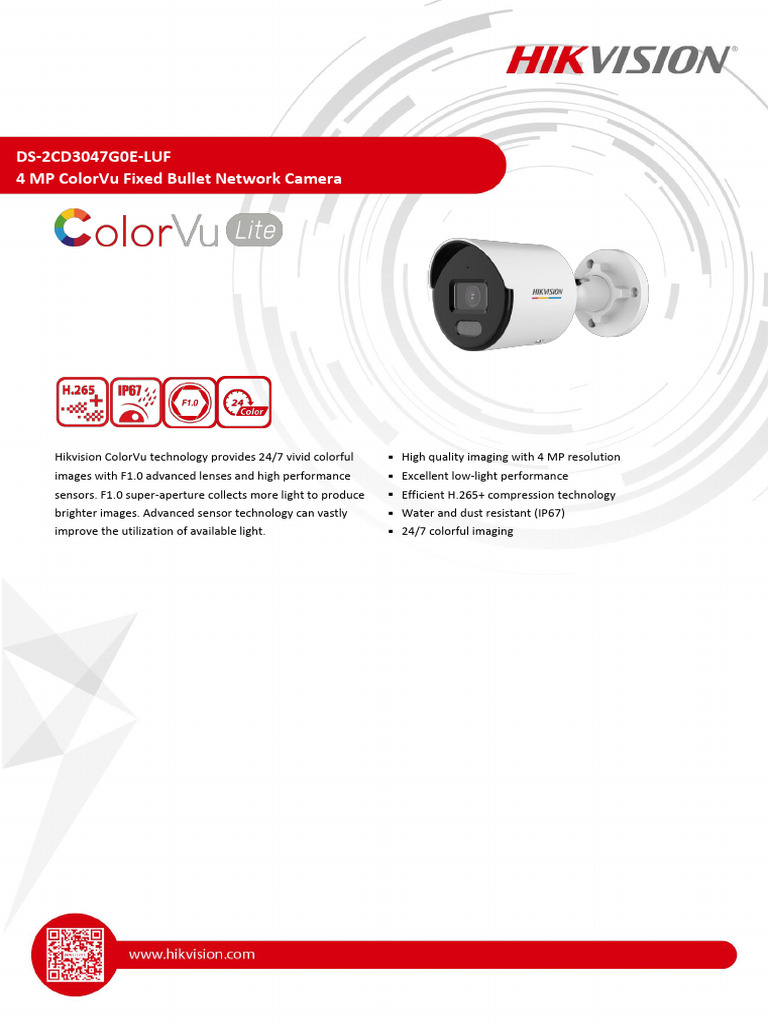

DS-2CD3047G0E-LUF

4 MP ColorVu Fixed Bullet Network Camera

Hikvision ColorVu technology provides 24/7 vivid colorful  High quality imaging with 4 MP resolution
images with F1.0 advanced lenses and high performance  Excellent low-light performance
sensors. F1.0 super-aperture collects more light to produce  Efficient H.265+ compression technology
brighter images. Advanced sensor technology can vastly  Water and dust resistant (IP67)
improve the utilization of available light.  24/7 colorful imaging

Specification
Camera
Image Sensor 1/3" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
Shutter Speed 1/3 s to 1/100, 000 s
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
2.8 mm, horizontal FOV 96.5°, vertical FOV 50.8°, diagonal FOV 113.9°
Focal Length & FOV
4 mm, horizontal FOV 75.8°, vertical FOV 40.8°, diagonal FOV 89.1°
Lens Mount M12
Focus Fixed
Aperture F1.0
DORI
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
DORI
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
Illuminator
Smart Supplement Light Yes
Supplement Light Range Up to 30 m
Video
50 Hz:
20 fps (2560 × 1440),
25 fps (1920 × 1080, 1280 × 720)
Main Stream
60 Hz:
20 fps (2560 × 1440),
30 fps (1920 × 1080, 1280 × 720)
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
Sub-Stream
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
50 Hz: 1 fps (640 × 360)
Third Stream
60 Hz: 1 fps (640 × 360)
Main stream: H.265+/H.265/H.264+/H.264
Video Compression Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps
Audio Bit Rate
(MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate 8 kHz/16 kHz
Environment Noise Filtering Yes
Network
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
Protocols
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Plug-in required live view: IE 10+
Web Browser Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
Image Settings
software or web browser.
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 130 dB
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone Yes
Hardware Reset Yes
Event
Basic Event Motion detection, video tampering alarm, exception
Smart Event Line crossing detection, intrusion detection
Upload to FTP/memory card, notify surveillance center, send email, trigger recording,
Linkage
trigger capture
General
Camera Material Aluminum alloy body
Camera Dimension Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")
Package Dimension 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
Camera Weight Approx. 430 g (0.95 lb.)
With Package Weight Approx. 648 g (1.43 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Conditions
Language English, Ukrainian
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
General Function
address filter
12 VDC ± 25%, 0.4 A, max. 5 W, Ø 5.5 mm coaxial power plug
Power
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
 Approval
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
EMC +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
KC (KN 32: 2015, KN 35: 2015)
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
Safety
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
CE-RoHS (2011/65/EU);
Environment WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)


Available Model
DS-2CD3047G0E-LUF (2.8/4 mm)


Typical Application
Hikvision products are classified into three levels according to their anti-corrosion performance. Refer to the following
description to choose for your using environment.

This model has NO SPECIFIC PROTECTION.

Level Description
Top-level protection Hikvision products at this level are equipped for use in areas where professional anti-corrosion
protection is a must. Typical application scenarios include coastlines, docks, chemical plants, and
more.
Moderate protection Hikvision products at this level are equipped for use in areas with moderate anti-corrosion
demands. Typical application scenarios include coastal areas about 2 kilometers (1.24 miles) away
from coastlines, as well as areas affected by acid rain.
No specific protection Hikvision products at this level are equipped for use in areas where no specific anti-corrosion
protection is needed.

Dimension


Accessory
 Optional
DS-1280ZJ-XS

Junction Box
