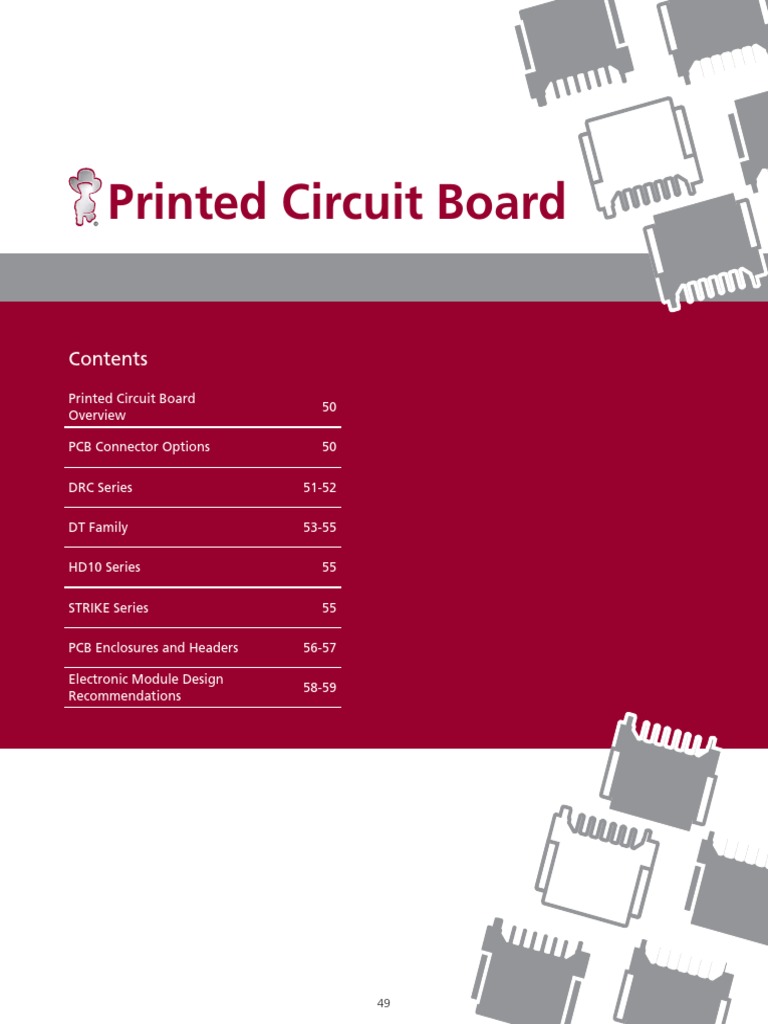

Printed Circuit Board
Contents
Printed Circuit Board
50
Overview
PCB Connector Options 50
DRC Series 51-52
DT Family 53-55
HD10 Series 55
STRIKE Series 55
PCB Enclosures and Headers 56-57
Electronic Module Design
58-59
Recommendations
49
Printed Circuit Board Connectors
Printed Circuit Board Overview
Deutsch Industrial printed circuit board or PCB connectors are heavy duty environmentally sealed connectors designed for
wire-to-circuit board connections. Deutsch PCB connectors are built to maintain the integrity and continuity of data and
power signals in harsh environments. Developed and designed for heavy duty electronically equipped vehicles, Deutsch
Industrial printed circuit board connections use standard Deutsch connector bodies and will withstand dust, dirt, moisture,
and vibration.
Available in a variety of styles from several different connector families, Deutsch printed circuit board connectors cover a
range of pin counts from 2 to 80 and wire gauges from 10 to 22. Many of the connectors are available in straight, 90, or
solder pot options.
Deutsch PCB connectors mate with standard Deutsch plugs. With integral silicone wire seals and molded-in contacts that
do not require potting or epoxy sealant, Deutsch PCB connectors are sealed, reliable, and easy to install.
all.
Nt
Note
Notice
Jiffy Splices
Printed Circuit Board Connector Options See individual
accept one
series sections for
pin and one
part numbering
socket.
DRC Series HD10 Series system.
24, 40, 50, 60, 64, 70, 76, and 80 cavity arrange- 6 and 9 cavity arrangements
ments Mating connectors accept 14-20 AWG
Mating connectors accept 14-22 AWG
STRIKE Series
DT Family
32 cavity arrangement
DT Series 2, 3, 4, 6, 8, and 12 cavity arrangements Mating connectors accept 14-22 AWG
DT Series mating connectors accept 14-20 AWG
DT Series angeless options available
DTM Series 8, 12, and 48 cavity arrangements EEC Enclosure and Flange Receptacle
DTM Series mating connectors accept 16-22 AWG DT Series header 12, 24, 36, and 48 cavity ar-
DTM Series angeless 48 way option rangements
DTP Series 4 cavity arrangement DT Series mating connectors accept 14-20 AWG
DTP Series mating connectors accept 10-14 AWG DTM Series header 12 and 24 cavity arrangements
Some arrangements of the DT and DTM Series are DTM Series mating connectors accept 16-22 AWG
available with A, B, C, and D keying options Some arrangements of the DT and DTM Series are
available with A, B, C, and D keying options
By xing the connectors to the
h el p fu l board prior to soldering, pressure
hi nt can be greatly reduced at the
solder joint.
50
A STEP AHEAD
Printed Circuit Board Connectors
DRC10 Series Straight
Materials Mating Plugs
Housing: Thermoplastic 24 Pin: DRC16-24S*
Grommet: Silicone elastomer 40 Pin: DRC16-40S
Receptacle Threaded Insert: Steel
Contacts: Molded-in copper alloy, Modications
tin plated solder pot standard (gold A004: Tin plated PCB pins
optional - see modications) AG02: Some terminals are gold
plated
DRC10-24P* DRC10-40P*
24 size 16 40 size 16
DRC13 Series 90
Materials Mating Plugs
Housing: Thermoplastic 24 Pin: DRC16-24S*
Receptacle Threaded Insert: Steel/ 40 Pin: DRC18-40S*
Brass 70 Pin: DRC16-70S*
Contacts: Molded-in copper alloy, tin
plated PCB pins standard (gold optional Modications
- see modications) C023: 5mm2 threaded insert
Mounting Seal: Silicone mounting holes
G002: Only outside terminal rows
are gold plated
N012: One piece connector design
DRC13-24P* DRC13-40P* DRC13-70P*
24 size 16 40 size 16 70 size 16
51
A STEP AHEAD
Printed Circuit Board Connectors
DRC20/22 Series Straight
Materials Mating Plugs
Housing: Thermoplastic 50 Pin: DRC26-50S**
Grommet: Silicone elastomer 60 Pin: DRC26-60S**
Receptacle Threaded Insert: Steel 76 Pin: (2)DRC26-38S**
Contacts: Molded-in copper alloy,
gold plated mating side, tin plated PCB
side (size 12 contacts are tin plated on
DRC22
mating and PCB sides)
Mounting Seal: Silicone rubber DRC20
DRC2*-50P* DRC20-60P* DRC20-76P****
50 size 20 60 size 20 68 size 20, 8 size 12
DRC23 Series 90 Miniature
Materials Mating Plugs
Housing: Thermoplastic 24 Pin: DRC26-24S*
Grommet: Silicone elastomer 40 Pin: DRC26-40S*
Receptacle Threaded Insert: Steel 64 Pin: DRC26-24S*, DRC26-40S*
Contacts: Molded-in copper alloy, gold 80 Pin: (2)DRC26-40S*
plated PCB pins standard (tin optional)
Mounting Seal: Silicone rubber
DRC23-24** DRC23-64**
24 size 20 64 size 20
DRC23-40** DRC23-80**
40 size 20 80 size 20
52
A STEP AHEAD
Printed Circuit Board Connectors
DT13/15 Series 90 or Straight
Materials Mating Plugs Modications
Housing: Thermoplastic 2 Pin: DT06-2S B016: Extended shell and additional keys
Contacts: Molded-in copper alloy, tin 4 Pin: DT06-4S G003: Gold plated pins
plated (gold optional - consult factory) 6 Pin: DT06-6S
Mounting Seal: Silicone rubber 8 Pin: DT06-8S*
12 Pin: DT06-12S*
DT13
DT1*-2P DT1*-4P DT1*-6P DT1*-08P* DT1*-12P*
2 size 16 4 size 16 6 size 16 8 size 16 12 size 16
A, B, C, D A, B, C, D
DT15
DTM13/15 Series 90 or Straight
Note
Notice
Jiffy Splices
Camcar
acceptthread
one
forming
pin andscrews
one
Materials Mating Plugs
are recommended.
socket.
Housing: Thermoplastic 12 Pin: DTM06-12S* See drawing.
Contacts: Molded-in copper alloy, tin
plated (gold optional - consult factory)
Mounting Seal: Silicone rubber
DTM13
DTM1*-12P*
12 size 20
A, B, C, D DTM15
DTP10 Series Straight
Materials Mating Plugs
Housing: Thermoplastic 4 Pin: DTP06-4S
Contacts: Molded-in copper alloy, tin
plated
Mounting Seal: Silicone rubber
DTP10-4P
4 size 12
53
A STEP AHEAD
Printed Circuit Board Connectors
Flangeless Part Numbering System
DT* 13 - 6 P * - XXXX
Series Special Modications
F = DTF Series
MF = DTMF Series Key
A, B, C, or D (if applicable)
Style
13 = 90 pins Contacts
15 = Straight pins P = Pin
S = Socket
Conguration
DTF13 Series Flangeless 90
Materials Mating Plugs Modications
Housing: Thermoplastic 2 Pin: DT06-2S G003: Gold plated pins
Contacts: Molded-in copper alloy, tin 3 Pin: DT06-3S
plated (gold optional - consult factory) 4 Pin: DT06-4S
6 Pin: DT06-6S
12 Pin: DT06-12S*
DTF13-2P DTF13-3P DTF13-4P DTF13-6P DTF13-12P*
2 size 16 3 size 16 4 size 16 6 size 16 12 size 16
A, B, C, D
DTF15 Series Flangeless Straight
Materials Mating Plugs Modications
Housing: Thermoplastic 12 Pin: DT06-12S* G003: Gold plated pins
Contacts: Molded-in copper alloy, tin
plated (gold optional - consult factory)
DTF15-12P*
12 size 16
A, B, C, D
54
A STEP AHEAD
Printed Circuit Board Connectors
DTMF15 Series Miniature Straight
Materials Mating Plugs Modications
Housing: Thermoplastic 12 Pin: (4) DTM06-12S* B026: Alternate keying position
Contacts: Molded-in copper alloy, tin
plated (gold optional - consult factory)
DTMF15-48P
(4)12 size 20
HD10 Series Straight
Materials Mating Plugs Modications
Housing: Thermoplastic 6 Pin: HD16-6-96S N005: Straight reduced diameter pins
Contacts: Molded-in copper alloy, 9 Pin: HD16-9-96S supplied as standard
nickel plated
Mounting Seal: Standard O-rings may
be used
D
E
B F C
A B A F
C E J
D G
H
HD10-6-96P-N005 HD10-9-96P-N005
6 size 16 9 size 16
STRIKE13/15 Series 90 or Straight
Materials Mating Plugs
Housing: Thermoplastic 32 Pin: SRK06-MD*-32A-***
Contacts: Molded-in copper alloy, tin
plated (gold optional - consult factory)
Mounting Seal: Silicone rubber
SRK1*-MD*-32A-001-****
4 - Size 16
28 - Size 20 55
A STEP AHEAD
Printed Circuit Board Connectors
Printed Circuit Board Enclosures and Headers
Deutsch Industrial offers compact circuit board enclosures that accept snap-in headers. The enclosure features a through
hole mounting ange on each side, as well as optional venting. Designed with space to accommodate one or more DT or
DTM Series interfaces, the headers feature 90 pins. A radial ange seal provides environmental sealing to the enclosure.
The headers mate with the DT and DTM standard plugs.
DTM Series Enclosure and Header Dimensions
DTM Series Enclosure with Header
A
Overall Length Overall Height Overall Width
A B C
B 5.24 (133.03) 1.42 (36.00) 4.68 (118.80)
Dimensions are for reference only.
C
DTM Header Connector
Materials Mating Plugs Modications
Contacts: Molded-in nickel mating side, 12 Pin: DTM06-12S* GR01: DTM Series snap-in header with
tin plated PCB side 24 Pin: (2) DTM06-12S* gold plated pins
R008: DTM Series snap-in header
DTM13-12P*-**** DTM13-12PA-12PB-**** DTM13-12PC-12PD-****
12 size 20 (2) 12 size 20 (2) 12 size 20
A, B, C, D A, B C, D
DTM PCB Enclosure
Material Venting* Modications
Housing: Thermoplastic A: With vent hole E016: Molded in clear Ultem material
B: Without vent hole
Board Size
3.25 X 4
EEC-325X4*
EEC 325X4* EEC-325X4*-E016
EEC 325X4* E016
56
A STEP AHEAD
Printed Circuit Board Connectors
DT Series Enclosure and Header Dimensions
A DT Series Enclosure with Header
Overall Length Overall Height Overall Width
A B C
B
7.93 (201.30) 2.15 (54.63) 6.30 (160.00)
C Dimensions are for reference only.
DT Header Connector
Materials Mating Plugs Modications
Contacts: Molded-in tin (gold optional - 12 Pin: DT06-12S* GR02: DT Series snap-in header with
consult factory) 24 Pin: (2) DT06-12S* gold plated pins
36 Pin: (3) DT06-12S* R015: DT Series snap-in header
48 Pin: (4) DT06-12S*
DT13 12PA R015
DT13-12PA-R015 DT13-24PAB-R015 DT13-36PABC-R015 DT13-48PABCD-R015
12 size 16 (2) 12 size 16 (3) 12 size 16 (4) 12 size 16
A A, B A, B, C A, B, C, D
Note
Notice
Jiffy Splices
Keying position
accept one of
receptacle
pin and onemust
match keying
socket.
DT PCB Enclosure position of mating
plug(s).
Material Venting*
Housing: Thermoplastic A: With vent hole
B: Without vent hole
Board Size
5 X 6.50
EEC 5X650*
EEC-5X650*
57
A STEP AHEAD
Printed Circuit Board Connectors
Electronic Module Design Recommendations
Deutsch connectors are designed to handle all environmental conditions typically seen on heavy duty equipment. Design
considerations have been given for temperature, vibration, and high current levels to exist simultaneously in a connector
with no performance degradation.
Low Voltage Circuits
Applications with data input/output signals of 0 to 5 volts require special consideration in the terminal selection. The pri-
mary concern is ensuring the low voltage signal is carried through the circuit. To minimize signal degradation, select a gold
plated terminal. Gold is a better plating choice for 0 to 5 volt applications because it does not oxidize and easily conducts
lower voltage signals. Nickel and tin platings are not designed for voltage levels less than 5 volts. Terminals plated with
nickel and tin will over time form a layer of oxidation on the surface of the plating that only higher voltage signals are able
to break through. The small additional cost for the gold terminal can dramatically improve the reliability of the electronic
system.
Air Tight Connections
In some applications, it is important to prevent air from
penetrating electronic enclosures. Air can bring in water
vapor and create condensation on the printed circuit
board. To prevent this from happening, potting or a light
conformal coating can be applied to the board.
Another method for protecting against air penetration
is to seal the enclosure after it is assembled and tested.
One drawback to consider is accommodating the con-
nector interface. The ange seal prevents air penetra-
tion at the ange, but there is still a possibility for air to
enter through the pin terminal area. Deutsch has several
designs that offer a seal around the terminal. This can
prevent any air penetration through the connector up to
a 5 p.s.i. pressure differential. Consult a Deutsch repre-
sentative for additional assistance.
58
A STEP AHEAD
Printed Circuit Board Connectors
Eliminating Long Term Vibration Problems
A critical concern when applying connectors to printed circuit boards is the long term durability as it relates to temperature
cycling and vibration. All of the components including the design of the box, the pc board, the connector, and the seal
must work together to account for temperature cycling and vibration. The main concern is to not have the pc board ex in
service.
A typical heavy duty application uses either a straight
extended pin connector or a connector with pins that
are bent 90 to the axis of the connector. At the point
the connector mates with the board, there is a mechani-
cal attachment for the connector to the pc board which
is independent of the solder. The engaging end of the
connector normally goes through an opening in the box
that houses the pc board. The connector is then attached
to the box during which time a seal is used to prevent
moisture intrusion into the box.
Another design pitfall is stress on the soldered terminal
on the connector. To avoid these concerns, an allowance
must be made to assure that stress between the pc board
and connector does not interfere with the seal perfor-
mance. There are a variety of methods that can be used
to create a successful design. These methods include
having the pc board loose in the box and then pot the
box with a exible sealant after the sealing ange is at-
tached to the box. Another possibility would be to reow
the solder after the board and connector are mounted
in the box. There are several good approaches to solving
these problems and providing a trouble free installation.
Consult a Deutsch representative for assistance specic to
your application.
59
A STEP AHEAD
