PIPING CLASS DATA SHEET PIPING CLASS:

CA1
Gulf Indonesia Resources

SERVICE: SWEET PROCESS GAS, SWEET PROCESS CONDENSATE ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200 300
MATERIALS: PIPE: CARBON STEEL PSIG 1480 1350 1315
FITTINGS: CARBON STEEL CORROSION ALLOWANCE: 1/16"
VALVES: CARBON STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 13-CR HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80 80 80 80 80 80 80 Pipe 14" and above to be calculated.
ELEMENTS NOTES
1 PIPE 3 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, BE
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SMLS
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 FS, NPT
9 FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF WN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RF WN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS ASTM, A516 GR. 60 ASTM, A516 GR.60
14 SPADE/SPACER RINGS ASTM, A516 GR. 60 ASTM, A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 4 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 4 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB BA-CA-3-1 BA-CA-3-1
24 FB BA-CA-3-2 BA-CA-3-2
25 GATE GA-CA-3-1 GA-CA-3-2 GA-CA-3-2-G1
26
27 V GLOBE GL-CA-3-1 GL-CA-3-1
28 A
29 L CHECK CK-CA-3-1 CK-CA-3-3
30 V CK-CA-3-2 CK-CA-3-4
31 E PLUG
32 S
33 BUTTERFLY BF-CA-3-1
34
35 NEEDLE
36
37 NOTES:
38 2. Deleted
39 3. Piping in vibrating or pulsating service shall be minimum schedule 160.
40 4. Fluorocarbon coated.
41
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
R3 8/10/2001 Revise Bolt/Nut Material [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CA2
Gulf Indonesia Resources

SERVICE: PRODUCED WATER, HP GAS, PROCESS CONDENSATE ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200 300 400
MATERIALS: PIPE: CARBON STEEL PSIG 1480 1350 1315 1270
FITTINGS: CARBON STEEL CORROSION ALLOWANCE: 1/8"
VALVES: CARBON STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 13Cr HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W.: ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. XXS XXS 160 160 160 80 80 80 80 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 2 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, BE
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SMLS
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 FS, NPT
9 FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF WN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RF WN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS API 590, A516 GR. 60 API, 590, A516 GR.60
14 SPADE/SPACER RINGS API 590, A516 GR. 60 API, 590, A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 4 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 4 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB BA-CA-3-1 BA-CA-3-1 BA-CA-3-1-G1
24 FB BA-CA-3-2 BA-CA-3-2
25 GATE GA-CA-3-1 GA-CA-3-2 GA-CA-3-2-G1
26
27 V GLOBE GL-CA-3-1 GL-CA-3-1
28 A
29 L CHECK CK-CA-3-1 CK-CA-3-3
30 V CK-CA-3-2 CK-CA-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES:
38 2. Piping in vibrating or pulsating service shall be minimum schedule 160.
39 3. Deleted
40 4. Fluorocarbon coated.
41
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CA2SR
Gulf Indonesia Resources

SERVICE: LEAN AMINE, RICH AMINE. ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200
MATERIALS: PIPE: CARBON STEEL NACE MR0175 PSIG 1480 1350
FITTINGS: CARBON STEEL NACE MR0175 CORROSION ALLOWANCE: 1/8"
VALVES: CARBON STEEL NACE MR0175 RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 13-CR & HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: YES Note #4
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. XXS XXS 160 160 160 80 80 80 80 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 3 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, BE
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SMLS
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 FS, NPT
9 FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS ASTM, A516 GR. 60 ASTM, A516 GR.60
14 SPADE/SPACER RINGS ASTM, A516 GR. 60 ASTM, A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 5 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 5 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB BA-CA-3-1 BA-CA-3-1
24 FB BA-CA-3-2 BA-CA-3-2
25 GATE GA-CA-3-1 GA-CA-3-2 GA-CA-3-2-G1
26
27 V GLOBE GL-CA-3-1 GL-CA-3-1
28 A
29 L CHECK CK-CA-3-1 CK-CA-3-3
30 V CK-CA-3-2 CK-CA-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES:
38 2. Deleted
39 3. Piping in vibrating or pulsating service shall be minimum schedule 160.
40 4. Carbon Steel piping in Amine service shall be stress relieved.
41 5. Fluorocarbon coating
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CA3
Gulf Indonesia Resources

SERVICE: GLYCOL ANSI CLASS: 600# RF CODE: ASME B31.3 LATEST

MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200 300
MATERIALS: PIPE: CARBON STEEL PSIG 1480 1350 1315
FITTINGS: CARBON STEEL CORROSION ALLOWANCE: 1/16"
VALVES: CARBON STEEL RADIOGRAPHY: 20% ALL BUTTWELDS
VALVE TRIM: 13-CR & HARDFACED MAG. PARTICLE/DYE PENETRANT: 20% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W.: ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" AND SMALLER NOTE 1 BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 1 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, BE
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SMLS
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 FS, NPT
9 FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF WN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RF WN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS ASTM, A516 GR. 60 ASTM, A516 GR.60
14 SPADE/SPACER RINGS ASTM, A516 GR. 60 ASTM, A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 2 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 2 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB BA-GA-8-1 BA-CA-3-1
24 FB BA-GA-8-2 BA-CA-3-2
25 GATE GA-GA-6-1 GA-CA-3-2
26 GA-GA-7-1
27 V GLOBE GL-GA-6-1 GL-CA-3-1
28 A
29 L CHECK CK-GA-6-1 CK-CA-3-3
30 V CK-GA-6-2 CK-CA-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES:
38 1 Piping in vibrating or pulsating service shall be minimum schedule 160.
39 2 Fluorocarbon coated
40
41
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CA4
Gulf Indonesia Resources

SERVICE: SALES GAS PIPELINE (ASME B31.8) ANSI CLASS: 600 # RF CODE: ASME B31.8 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200
MATERIALS: PIPE: CARBON STEEL PSIG 1480 1350
FITTINGS: CARBON STEEL CORROSION ALLOWANCE: 1/16"
VALVES: CARBON STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 13-CR & HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" AND SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80
ELEMENTS NOTES
1 PIPE API 5L (GRADE TO BE CALCULATED)
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SCH 160
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 FS, NPT
9 FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF WN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RF WN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS ASTM A516 GR. 60 ASTM A516 GR.60
14 SPADE/SPACER RINGS ASTM A516 GR. 60 ASTM A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 1 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 1 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL
24
25 GATE GA-GA-5-9 GA-CA-3-9 GA-CA-3-9-G1
26
27 V GLOBE
28 A
29 L CHECK
30 V
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES:
38 1 Fluorocarbon coated.
39
40
41
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CA6
Gulf Indonesia Resources

SERVICE: SWEET PRODUCED WATER (WITH CHLORIDES) ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 600
MATERIALS: PIPE: CARBON STEEL PSIG 1480 1415
FITTINGS: CARBON STEEL CORROSION ALLOWANCE: 1/8"
VALVES: CARBON STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: MONEL HF MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. XXS XXS XXS XXS 160 80 80 80 80 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 3 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, PE
2 FITTINGS B16.11, A105 N FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105N FS, 6000 LB MSS SP97, A105N FS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A106 GR. B SMLS, SCH XXS
5 SWAGED NIPPLES MSS SP95, A106 GR. B SMLS PIPE, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A105 N FS, 6000 LB
7 CAPS B16.11, A105 N FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 N FS, SCR
9 FLANGES B16.5, A105 N, 600 LB RF B16.5, A105 N, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105 N, 600 LB RF B16.5, A105 N, 600 LB RF
11 ORIFICE FLANGES B16.36, A105 N, 600 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A105 N, 600 LB RF
13 SPECTACLE BLINDS API 590, A516 GR. 60N API, 590, A516 GR.60N
14 SPADE/SPACER RINGS API 590, A516 GR. 60N API, 590, A516 GR.60N
15 DRIP RINGS A516 GR. 60N A516 GR. 60N
16 STUD BOLTS 4 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 4 A194 GR. 2H A194 GR. 2H
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GM-5-1 BA-CM-3-1 BA-CM-3-3
24 BA-GM-5-2 BA-CM-3-2 BA-CM-3-4
25 GATE GA-GM-5-1 GA-CM-3-1 GA-CM-3-4
26 GA-GM-5-2 GA-CM-3-2 GA-CM-3-5
27 V GLOBE GL-GM-5-1 GL-CM-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GM-5-1 CK-CM-3-3 (CK-CM-3-1 ON COMPRESSOR DISCHARGE)
30 V CK-GM-5-2 CK-CM-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KM-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Piping in vibrating or pulsating service shall be minimum schedule 160.
40 4. Fluorocarbon coated.
41
Rev. Date Description By Chk App. Project
R0 5/4/2001

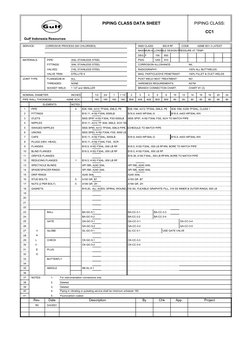

 PIPING CLASS DATA SHEET PIPING CLASS:

CC1
Gulf Indonesia Resources

SERVICE: CORROSIVE PROCESS (NO CHLORIDES) ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 600
MATERIALS: PIPE: 304L STAINLESS STEEL PSIG 1200 910
FITTINGS: 304L STAINLESS STEEL CORROSION ALLOWANCE: NIL
VALVES: 316L STAINLESS STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: STELLITE 6 MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: NO
THREADED: NONE HARDNESS REQUIREMENTS: ASTM
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1 (3)

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80S 40S 40S 80S 80S 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 4 B36.10M, A312 TP304L SMLS, PE B36.10M, A312 TP304L SMLS, PE B36.10M, A358 TP304L, CLASS 1
2 FITTINGS B16.11, A182 F304L 6000LB B16.9, A403 WP304L-S B16.9, A403 WP304L-WX
3 O'LETS MSS SP97 A182 F304L FSS 6000LB MSS SP97, A182 F304L FSS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A312 TP 304L SMLS, SCH 160
5 SWAGED NIPPLES MSS SP95, A312 TP304L SMLS PIPE, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A182 F304L FSS, 6000 LB
7 CAPS B16.11, A182 F304L, 6000LB B16.9, A403 WP304L-S B16.9, A403 WP304L-WX
8 PLUGS (HEX. HEAD) B16.11, A182 F304L FSS, SCR
9 FLANGES B16.5, A182 F304L, 600 LB RF B16.5, A182 F304L, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A182 F304L, 600 LB RF B16.5, A182 F304L, 600 LB RF
11 ORIFICE FLANGES B16.36, A182 F304L, 300 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A182 F304L, 600 LB RF
13 SPECTACLE BLINDS API 590, A240 304L API 590, A240 304L
14 SPADE/SPACER RINGS API 590, A240 304L API 590, A240 304L
15 DRIP RINGS A240 304L A240 304L
16 STUD BOLTS 5 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 5 A194 GR. 2H A194 GR. 2H
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316 SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GC-5-1 BA-CC-3-1 BA-CC-3-3
24 BA-GC-5-2 BA-CC-3-2 BA-CC-3-4
25 GATE GA-GC-5-1 GA-CC-3-1 GA-CC-3-4
26 GA-GC-5-2 GA-CC-3-2 GA-CC-3-5
27 V GLOBE GL-GC-5-1 GL-CC-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GC-5-1 CK-CC-3-3
30 V CK-GC-5-2 CK-CC-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KL-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Deleted
40 4. Piping in vibrating or pulsating service shall be minimum schedule 160.
41 5. Fluorocarbon coated.
Rev. Date Description By Chk App. Project
R0 5/4/2001
 PIPING CLASS DATA SHEET PIPING CLASS:

CC3
Gulf Indonesia Resources

SERVICE: INJECTION CHEMICALS ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 600
MATERIALS: PIPE: 304L STAINLESS STEEL PSIG 1200 910
FITTINGS: 304L STAINLESS STEEL CORROSION ALLOWANCE: NIL
VALVES: 316 STAINLESS STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: STELLITE 6 MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: NO
THREADED: NONE HARDNESS REQUIREMENTS: ASTM
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1 (3)

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80S 40S 40S 80S
ELEMENTS NOTES
1 PIPE 4 B36.10M, A312 TP304L SMLS, PE B36.10M, A312 TP304L SMLS, PE
2 FITTINGS B16.11, A182 F304L 6000LB B16.9, A403 WP304L-S B16.9, A403 WP304L-WX
3 O'LETS MSS SP97 A182 F304L FSS 6000LB MSS SP97, A182 F304L FSS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A312 TP 304L SMLS, SCH 160
5 SWAGED NIPPLES MSS SP95, A312 TP304L SMLS PIPE, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A182 F304L FSS, 6000 LB
7 CAPS B16.11, A182 F304L, 6000 B16.9, A403 WP304L-S B16.9, A403 WP304L-WX
8 PLUGS (HEX. HEAD) B16.11, A182 F304L FSS, SCR
9 FLANGES B16.5, A182 F304L, 600 LB RF B16.5, A182 F304L, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A182 F304L, 600 LB RF B16.5, A182 F304L, 600 LB RF
11 ORIFICE FLANGES B16.36, A182 F304L, 300 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A182 F304L, 600 LB RF
13 SPECTACLE BLINDS API 590, A240 304L API 590, A240 304L
14 SPADE/SPACER RINGS API 590, A240 304L API 590, A240 304L
15 DRIP RINGS A240 304L A240 304L
16 STUD BOLTS 5 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 5 A194 GR. 2H A194 GR. 2H
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316 SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GL-5-1 BA-CL-3-1 BA-CL-3-3
24 BA-GL-5-2 BA-CL-3-2 BA-CL-3-4
25 GATE GA-GL-5-1 GA-CL-3-1 GA-CL-3-4
26 GA-GL-5-2 GA-CL-3-2 GA-CL-3-5
27 V GLOBE GL-GL-5-1 GL-CL-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GL-5-1 CK-CL-3-3
30 V CK-GL-5-2 CK-CL-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KL-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Deleted
40 4. Piping in vibrating or pulsating service shall be minimum schedule 160
41 5. Fluorocarbon coated.
Rev. Date Description By Chk App. Project
R0 5/4/2001
 PIPING CLASS DATA SHEET PIPING CLASS:

CD1
Gulf Indonesia Resources

SERVICE: SOUR PROCESS GAS ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200
MATERIALS: PIPE: CARBON STEEL, NACE MR0175 PSIG 1480 1350
5 FITTINGS: CARBON STEEL, NACE MR0175 CORROSION ALLOWANCE: 1/16"
VALVES: CARBON STEEL, NACE MR0175 RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 316 SS HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 4 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, BE
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SMLS
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 FS, NPT
9 FLANGES B16.5, A105, 600 LB FS B16.5, A105, 600 LB RF WN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB FS B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RF WN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS ASTM, A516 GR. 60 ASTM, A516 GR.60
14 SPADE/SPACER RINGS ASTM, A516 GR. 60 ASTM, A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 6 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 6 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB BA-CD-3-1 BA-CD-3-1 BA-CD-3-1-G1
24 FB BA-CD-3-2 BA-CD-3-2
25 GATE GA-CD-3-1 GA-CD-3-2 GA-CD-3-2-G1
26
27 V GLOBE GL-CD-3-1 GL-CD-3-1
28 A
29 L CHECK CK-CD-3-1 CK-CD-3-3
30 V CK-CD-3-2 CK-CD-3-4
31 E PLUG
32 S
33 BUTTERFLY BF-CD-3-1
34
35 NEEDLE
36
37 NOTES:
38 2. Deleted
39 3. Deleted
40 4. Piping in vibrating or pulsating service shall be minimum schedule 160.
5. All materials shall meet the requirements of NACE MR-01-75
41 6. Fluorocarbon coated.
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
R3 8/10/2001 Revise Bolt/Nut Material [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CD2
Gulf Indonesia Resources

SERVICE: SOUR HYDROCARBONS, DEHYDRATED ACID GAS ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 600
MATERIALS: PIPE: CARBON STEEL, NACE MR0175 PSIG 1480 1315
FITTINGS: CARBON STEEL, NACE MR0175 CORROSION ALLOWANCE: 1/8"
VALVES: CARBON STEEL, NACE MR0175 RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 316 SS/HF MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: YES
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1 (3)

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. XXS XXS XXS XXS 160 80 80 80 80 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 4 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, PE
2 FITTINGS B16.11, A105 N FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105N FS, 6000 LB MSS SP97, A105N FS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A106 GR. B SMLS
5 SWAGED NIPPLES MSS SP95, A105 N, FS 6000LB, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A105 N FS, 6000 LB
7 CAPS B16.11, A105 N FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 N FS, NPT
9 FLANGES B16.5, A105 N, 600 LB RF B16.5, A105 N, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105 N, 600 LB RF B16.5, A105 N, 600 LB RF
11 ORIFICE FLANGES B16.36, A105 N, 600 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A105 N, 600 LB RF
13 SPECTACLE BLINDS ASTM A516 GR. 60N ASTM A516 GR.60N
14 SPADE/SPACER RINGS ASTM A516 GR. 60N ASTM A516 GR.60N
15 DRIP RINGS A516 GR. 60N A516 GR. 60N
16 STUD BOLTS 5 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 5 A194 GR. 2H A194 GR. 2H
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316 SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GD-5-1 BA-CD-3-1 BA-CD-3-3
24 BA-GD-5-2 BA-CD-3-2 BA-CD-3-4
25 GATE GA-GD-5-1 GA-CD-3-1 GA-CD-3-4
26 GA-GD-5-2 GA-CD-3-2 GA-CD-3-5
27 V GLOBE GL-GD-5-1 GL-CD-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GD-5-1 CK-CD-3-3
30 V CK-GD-5-2 CK-CD-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KD-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Deleted
40 4. Piping in vibrating or pulsating service shall be minimum schedule 160.
41 5. Fluorocarbon coated.
Rev. Date Description By Chk App. Project
R0 5/4/2001
 PIPING CLASS DATA SHEET PIPING CLASS:

CD4
Gulf Indonesia Resources

SERVICE: SOUR PRODUCED WATER (WITH CHLORIDES) ANSI CLASS: 600# RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 600
MATERIALS: PIPE: CARBON STEEL, NACE MR0175 PSIG 1480 1415
FITTINGS: CARBON STEEL, NACE MR0175 CORROSION ALLOWANCE: 1/8"
VALVES: CARBON STEEL, NACE MR0175 RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: MONEL HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: YES
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1 (3)

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. XXS XXS XXS XXS 160 80 80 80 80 80 80 80 80 80 80 80
ELEMENTS NOTES
1 PIPE 4 B36.10M, A106 GR. B SMLS, PE B36.10M, A106 GR. B SMLS, PE
2 FITTINGS B16.11, A105 N FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105N FS, 6000 LB MSS SP97, A105N FS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A106 GR. B SMLS, SCH XXS
5 SWAGED NIPPLES MSS SP95, A106 GR. B SMLS PIPE, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A105 N FS, 6000 LB
7 CAPS B16.11, A105 N FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 N FS, SCR
9 FLANGES B16.5, A105 N, 600 LB RF B16.5, A105 N, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105 N, 600 LB RF B16.5, A105 N, 600 LB RF
11 ORIFICE FLANGES B16.36, A105 N, 600 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A105 N, 600 LB RF
13 SPECTACLE BLINDS API 590, A516 GR. 60N API, 590, A516 GR.60N
14 SPADE/SPACER RINGS API 590, A516 GR. 60N API, 590, A516 GR.60N
15 DRIP RINGS A516 GR. 60N A516 GR. 60N
16 STUD BOLTS 5 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 5 A194 GR. 2H A194 GR. 2H
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316 SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GS-5-1 BA-CS-3-1 BA-CS-3-3
24 BA-GS-5-2 BA-CS-3-2 BA-CS-3-4
25 GATE GA-GS-5-1 GA-CS-3-1 GA-CS-3-4
26 GA-GS-5-2 GA-CS-3-2 GA-CS-3-5
27 V GLOBE GL-GS-5-1 GL-CS-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GS-5-1 CK-CS-3-3
30 V CK-GS-5-2 CK-CS-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KS-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Deleted
40 4. Piping in vibrating or pulsating service shall be minimum schedule 160.
41 5. Fluorocarbon coated.
Rev. Date Description By Chk App. Project
R0 5/4/2001
 PIPING CLASS DATA SHEET PIPING CLASS:

CDW
Gulf Indonesia Resources

SERVICE: SALES GAS PIPELINE (ASME B31.8) ANSI CLASS: 600 # RF CODE: ASME B31.8 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200
MATERIALS: 2 PIPE: CARBON STEEL, NACE MR0175 PSIG 1480 1350
FITTINGS: CARBON STEEL, NACE MR0175 CORROSION ALLOWANCE: 1/16"
VALVES: CARBON STEEL, NACE MR0175 RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 13-CR & HARDFACED MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: CODE
THREADED: NONE HARDNESS REQUIREMENTS: MAX 248 HV10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80 80 80 80 80 80 80 80 60 60 60 60
ELEMENTS NOTES
1 PIPE API 5L (GRADE TO BE CALCULATED)
2 FITTINGS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
3 O'LETS MSS SP97 A105 FS, 6000 LB MSS SP97, A105 FS, SCH TO MATCH PIPE
4 NIPPLES A106 GR. B SCH 160
5 SWAGED NIPPLES MSS SP95, A234 WPB
6 UNIONS MSS SP83, A105 FS, 6000 LB
7 CAPS B16.11, A105 FS, 6000 LB B16.9, A234 WPB, WALL TO MATCH PIPE
8 PLUGS (HEX. HEAD) B16.11, A105 N FS, NPT
9 FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF WN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A105, 600 LB RF B16.5, A105, 600 LB RF
11 ORIFICE FLANGES B16.36, A105, 600 LB RF WN, BORE TO MATCH PIPE
12 REDUCING FLANGES B16.5, A105, 600 LB RF
13 SPECTACLE BLINDS ASTM A516 GR. 60 ASTM A516 GR.60
14 SPADE/SPACER RINGS ASTM A516 GR. 60 ASTM A516 GR.60
15 DRIP RINGS A516 GR. 60 A516 GR. 60
16 STUD BOLTS 1 A193 GR. B7 A193 GR. B7
17 NUTS (2 PER BOLT) 1 A194 GR. 2H A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB BA-CD-3-1
24 FB BA-CD-3-2 BA-CD-3-2 BA-CD-3-2-G-1
25 GATE GA-CD-3-1 GA-CD-3-9 GA-CA-3-9-G1
26 2 GA-CD-3-3
27 V GLOBE GL-CD-3-1 GL-CD-3-1
28 A
29 L CHECK CK-CD-3-9
30 V
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES:
38 1 Fluorocarbon coated.
39 2 This valve is used through conduit type.
40 3 Deleted
41
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
R3 8/10/2001 Revise Bolt/Nut Material [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CE1
Gulf Indonesia Resources

SERVICE: SOUR PROCESS GAS, SOUR PRODUCED WATER ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200 300
MATERIALS: PIPE: DUPLEX UNS S31803 PSIG
FITTINGS: DUPLEX UNS S31803 CORROSION ALLOWANCE: NIL
NOTE 3 VALVES: 13 CR RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: 13 CR MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W.: ALL POST WELD HEAT TREATMENT: NO
THREADED: NOT ALLOWED HARDNESS REQUIREMENTS: ASTM
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 80S
ELEMENTS NOTES
1 PIPE 4 B36.19M PE SMLS A790 UNS S31803
2 FITTINGS B16.11 A182 F51 UNS S31803 6000LB
3 O'LETS MSS SP97 A182 F51 UNS S31803 6000LB
4 NIPPLES SMLS A790 UNS S31803
5 SWAGED NIPPLES MSS SP95 A182 F51 UNS S31803 6000 LB
6 UNIONS MSS SP97, A182 F51 UNS S31803, 6000 LB
7 CAPS B16.11, A182 UNS S31803, 6000LB
8 PLUGS (HEX. HEAD) B16.11, A182 F51 UNS S31803 NPT
9 FLANGES B16.5, A182 F51 UNS S31803, 600 LB RF
10 BLIND FLANGES B16.5, A182 F51 UNS S31803, 600 LB RF
11 ORIFICE FLANGES
12 REDUCING FLANGES B16.5, A182 F51 UNS S31803, 600 LB RF
13 SPECTACLE BLINDS ASTM A182 F51 UNS S31803
14 SPADE/SPACER RINGS
15 DRIP RINGS
16 STUD BOLTS 5 A193 GR. B7
17 NUTS (2 PER BOLT) 5 A194 GR. 2H
18 GASKETS RF B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL,
19 600 LB, 316 SS INNER / OUTER RINGS
20
21
22
23 BALL RB
24 FB
25 GATE GA-GF-6-1 GA-CF-3-3 GA-CF-3-3-G1
26 GA-CF-3-1
27 V GLOBE GL-GF-6-1
28 A GL-CF-3-1
29 L CHECK CK-CF-3-3
30 V
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. All materials shall meet the requirements of NACE MR 01 75
40 4. Piping in vibrating or pulsating service shall be minimum schedule 160.
41 5. Fluorocarbon coated.
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
 PIPING CLASS DATA SHEET PIPING CLASS:

CF1
Gulf Indonesia Resources

SERVICE: SOUR PROCESS GAS, WET CO2 ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 200
MATERIALS: PIPE: 13Cr - 410 STAINLESS STEEL PSIG 1374
FITTINGS: 13Cr - 410 STAINLESS STEEL CORROSION ALLOWANCE: NIL
VALVES: 13Cr - 410 STAINLESS STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: STELLITE 6 MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: YES - ALL WELDS
THREADED: NONE HARDNESS REQUIREMENTS: Max 235Hv10
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1 (3)

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 Calculate thicknesses from 2 inch
ELEMENTS NOTES
1 PIPE ASTM A-743, CA-15 ASTM A-743
2 FITTINGS B16.11, A182 F316L 6000LB B16.9, A403 WP316L-S B16.9, A403 WP316L-WX
3 O'LETS MSS SP97 A182 F316L FSS 6000LB MSS SP97, A182 F316L FSS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A312 TP 316L SMLS, SCH 160
5 SWAGED NIPPLES MSS SP95, A312 TP316L SMLS PIPE, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A182 F316L FSS, 6000 LB
7 CAPS B16.11, A182 F316L, 6000LB B16.9, A403 WP316L-S B16.9, A403 WP316L-WX
8 PLUGS (HEX. HEAD) B16.11, A182 F316L FSS, SCR
9 FLANGES B16.5, A182 F316L, 600 LB RF B16.5, A182 F316L, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A182 F316L, 600 LB RF B16.5, A182 F316L, 600 LB RF
11 ORIFICE FLANGES B16.36, A182 F316L, 600 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A182 F316L, 600 LB RF
13 SPECTACLE BLINDS API 590, A240 316L API 590, A240 316L
14 SPADE/SPACER RINGS API 590, A240 316L API 590, A240 316L
15 DRIP RINGS A240 316L A240 316L
16 STUD BOLTS 4 A320 GR L7 A320 GR L7
17 NUTS (2 PER BOLT) 4 A194 GR 7 A194 GR 7
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316 SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GC-5-1 BA-CC-3-1 BA-CC-3-3
24 BA-GC-5-2 BA-CC-3-2 BA-CC-3-4
25 GATE GA-GC-5-1 GA-CC-3.1 GA-CC-3-4
26 GA-GC-5-2 GA-CC-3-2 GA-CC-3-5
27 V GLOBE GL-GC-5-1 GL-CC-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GC-5-1 CK-CC-3-3
30 V CK-GC-5-2 CK-CC-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KC-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Deleted
40 4. Fluorocarbon coated.
41
Rev. Date Description By Chk App. Project
R0 5/4/2001
 PIPING CLASS DATA SHEET PIPING CLASS:

CJ1
Gulf Indonesia Resources

SERVICE: SWEET & SOUR PROCESS GAS, WET CO2, RICH AMINE ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F 100 250
MATERIALS: PIPE: 316L STAINLESS STEEL PSIG 1200 1015
FITTINGS: 316L STAINLESS STEEL CORROSION ALLOWANCE: NIL
VALVES: 316L STAINLESS STEEL RADIOGRAPHY: 100% ALL BUTTWELDS
VALVE TRIM: STELLITE 6 MAG. PARTICLE/DYE PENETRANT: 100% FILLET & O'LET WELDS
JOINT TYPE: FLANGED/B.W. ALL POST WELD HEAT TREATMENT: NO
THREADED: NONE HARDNESS REQUIREMENTS: ASTM
SOCKET WELD: 1 1/2" and SMALLER BRANCH CONNECTION CHART: CHART #1 (3)

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: ASME SCH. 160 160 160 160 80S 40S 60 80S 60 XS 60 60 60 60 60 60
ELEMENTS NOTES
1 PIPE B36.10M, A312 TP316L SMLS, PE B36.10M TP316L SMLS B36.10M, A358 TP316L, CLASS 1
2 FITTINGS B16.11, A182 F316L 6000LB B16.9, A403 WP316L-S B16.9, A403 WP316L-WX
3 O'LETS MSS SP97 A182 F316L FSS 6000LB MSS SP97, A182 F316L FSS, SCH TO MATCH PIPE
4 NIPPLES B16.11, A312 TP 316L SMLS, SCH 160
5 SWAGED NIPPLES MSS SP95, A312 TP316L SMLS PIPE, SCHEDULE TO MATCH PIPE
6 UNIONS MSS SP83, A182 F316L FSS, 6000 LB
7 CAPS B16.11, A182 F316L, 6000LB B16.9, A403 WP316L-S B16.9, A403 WP316L-WX
8 PLUGS (HEX. HEAD) B16.11, A182 F316L FSS, SCR
9 FLANGES B16.5, A182 F316L, 600 LB RF B16.5, A182 F316L, 600 LB RFWN, BORE TO MATCH PIPE
10 BLIND FLANGES B16.5, A182 F316L, 600 LB RF B16.5, A182 F316L, 600 LB RF
11 ORIFICE FLANGES B16.36, A182 F316L, 600 LB RFWN, BORE TO MATCH PIPE
12 REDUCING FLANGES 1 B16.5, A182 F316L, 600 LB RF
13 SPECTACLE BLINDS API 590, A240 316L API 590, A240 316L
14 SPADE/SPACER RINGS API 590, A240 316L API 590, A240 316L
15 DRIP RINGS A240 316L A240 316L
16 STUD BOLTS 4 A320 GR L7 A320 GR L7
17 NUTS (2 PER BOLT) 4 A194 GR 7 A194 GR 7
18 GASKETS B16.20, ALL SIZES, SPIRAL WOUND, 316 SS, FLEXIBLE GRAPHITE FILL, 316 SS INNER & OUTER RINGS, 600 LB
19
20
21
22
23 BALL BA-GC-5-1 BA-CC-3-1 BA-CC-3-3
24 BA-GC-5-2 BA-CC-3-2 BA-CC-3-4
25 GATE GA-GC-5-1 GA-CC-3.1 GA-CC-3-4
26 GA-GC-5-2 GA-CC-3-2 GA-CC-3-5
27 V GLOBE GL-GC-5-1 GL-CC-3-1 USE GATE VALVE
28 A
29 L CHECK CK-GC-5-1 CK-CC-3-3
30 V CK-GC-5-2 CK-CC-3-4
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE NE-KC-5-1
36
37 NOTES: 1. For instrumentation connections only
38 2. Deleted
39 3. Deleted
40 4. Fluorocarbon coated.
41
Rev. Date Description By Chk App. Project
R0 5/4/2001
 PIPING CLASS DATA SHEET PIPING CLASS:

CP1
Gulf Indonesia Resources

SERVICE: PRODUCED WATER (UNDERGROUND) ANSI CLASS: 600 # RF CODE: ASME B31.3 LATEST
MAXIMUM ALLOWABLE DESIGN PRESSURE AT TEMP.:
DEG. F
MATERIALS: PIPE: PSIG
FITTINGS: CORROSION ALLOWANCE: NIL
VALVES: RADIOGRAPHY: NIL
VALVE TRIM: MAG. PARTICLE/DYE PENETRANT: NIL
JOINT TYPE: FLANGED 1" AND LARGER POST WELD HEAT TREATMENT: NO
THREADED: ALL HARDNESS REQUIREMENTS: ASTM
SOCKET WELD: NONE BRANCH CONNECTION CHART:

NOMINAL DIAMETER: INCHES 1/2 3/4 1 1 1/2 2 3 4 6 8 10 12 14 16 18 20 24

PIPE WALL THICKNESS: MM
ELEMENTS NOTES
1 PIPE FRP AMERON HP1250 SERIES OR EQUIV.
2 FITTINGS FRP AMERON HP 1250 SERIES OR EQUIV.
3 O'LETS
4 NIPPLES
5 SWAGED NIPPLES
6 UNIONS
7 CAPS
8 PLUGS (HEX. HEAD)
9 FLANGES 600 LB, FF FRP AMERON HP1250 SERIES OR EQUIV.
10 BLIND FLANGES
11 ORIFICE FLANGES
12 REDUCING FLANGES
13 SPECTACLE BLINDS
14 SPADE/SPACER RINGS
15 DRIP RINGS
16 STUD BOLTS A193 GR. B7
17 NUTS (2 PER BOLT) A194 GR. 2H
18 GASKETS FF AMERON HP1250 SERIES OR EQUIV. SUITABLE FOR ANSI 600#
19
20
21
22
23 BALL
24
25 GATE
26
27 V GLOBE
28 A
29 L CHECK
30 V
31 E PLUG
32 S
33 BUTTERFLY
34
35 NEEDLE
36
37 NOTES:
38
39
40
41
Rev. Date Description By Chk App. Project
R0 5/18/2001 EPC Contract Basis K.H.C J.S.P C.H.H
RI 6/15/2001 Issed for Approval H.S.C J.S.P C.H.H
R2 7/30/2001 Issue Approved for Construction [Link] J.S.P C.H.H
