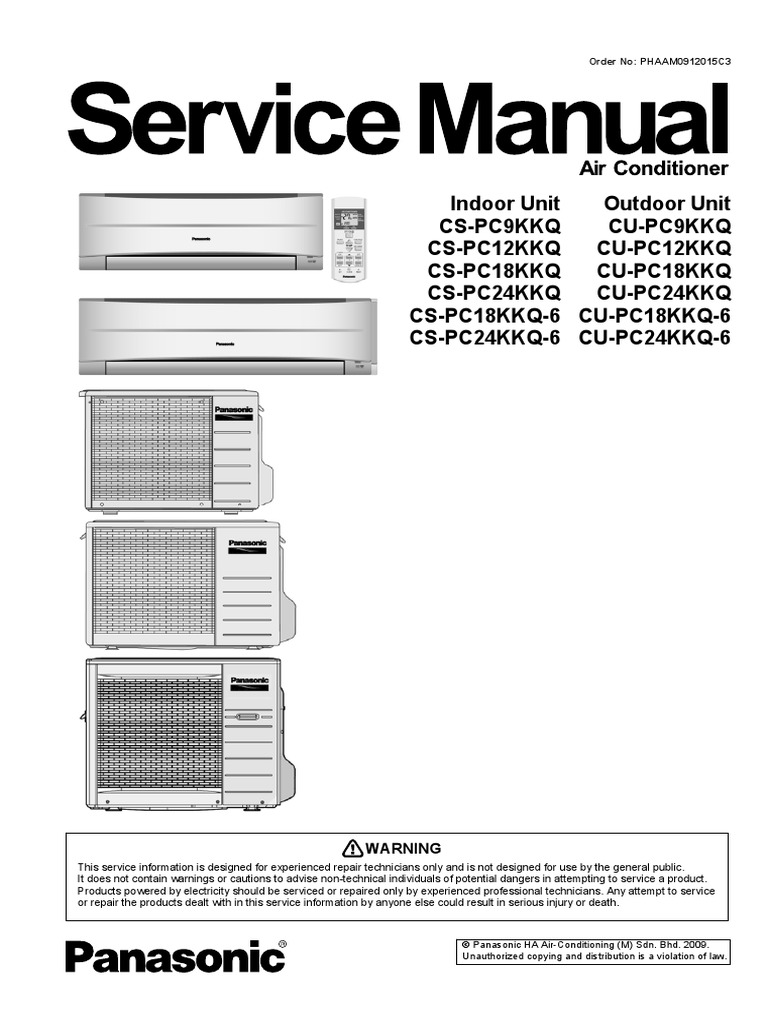

Order No: PHAAM0912015C3

Indoor Unit Outdoor Unit

CS-PC9KKQ CU-PC9KKQ
CS-PC12KKQ CU-PC12KKQ
CS-PC18KKQ CU-PC18KKQ
CS-PC24KKQ CU-PC24KKQ
CS-PC18KKQ-6 CU-PC18KKQ-6
CS-PC24KKQ-6 CU-PC24KKQ-6

WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service
or repair the products dealt with in this service information by anyone else could result in serious injury or death.

© Panasonic HA Air-Conditioning (M) Sdn. Bhd. 2009.

Unauthorized copying and distribution is a violation of law.
TABLE OF CONTENTS
13.2 7 Minutes Time Save Control .................... 47
1. Safety Precautions .............................................3
13.3 60 Seconds Forced Operation .................. 47
2. Specification .......................................................5 13.4 Starting Current Control ............................ 47
13.5 Freeze Prevention Control ........................ 47
3. Features.............................................................11 13.6 Compressor Reverse Rotation Protection
4. Location of Controls and Components..........12 Control ....................................................... 48
13.7 Dew Prevention Control ............................ 48
4.1 Indoor Unit ..................................................12
4.2 Outdoor Unit ...............................................12 14. Servicing Mode ................................................ 49
4.3 Remote Control ..........................................12
14.1 Auto OFF/ON Button ................................. 49
5. Dimensions .......................................................13 14.2 Remote Control Button .............................. 50
5.1 Indoor Unit ..................................................13 15. Troubleshooting Guide................................... 51
5.2 Outdoor Unit ...............................................15 15.1 Refrigeration cycle system ........................ 51
6. Refrigeration Cycle Diagram ...........................17 16. Disassembly and Assembly Instructions ..... 53
7. Block Diagram ..................................................18 16.1 CS-PC9/12KKQ......................................... 53
7.1 CS-PC9KKQ CU-PC9KKQ CS-PC12KKQ 16.2 CS-PC18/24KKQ CS-PC18/24KKQ-6...... 57
CU-PC12KKQ CS-PC18KKQ CU-PC18KKQ
17. Technical Data ................................................. 61
CS-PC24KKQ CU-PC24KKQ
CS-PC18KKQ-6 CU-PC18KKQ-6 17.1 Thermostat Characteristics ....................... 61
CS-PC24KKQ-6 CU-PC24KKQ-6 .............18 17.2 Operation Characteristics.......................... 62
8. Wiring Connection Diagram ............................19 18. Exploded View and Replacement Parts List. 74
8.1 CS-PC9KKQ CU-PC9KKQ........................19 18.1 Indoor Unit ................................................. 74
8.2 CS-PC12KKQ CU-PC12KKQ....................20 18.2 Outdoor Unit .............................................. 79
8.3 CS-PC18KKQ CU-PC18KKQ
CS-PC18KKQ-6 CU-PC18KKQ-6 .............21
8.4 CS-PC24KKQ CU-PC24KKQ
CS-PC24KKQ-6 CU-PC24KKQ-6 .............22
9. Electronic Circuit Diagram ..............................23
9.1 CS-PC9KKQ CU-PC9KKQ CS-PC12KKQ
CU-PC12KKQ.............................................23
9.2 CS-PC18KKQ CU-PC18KKQ
CS-PC24KKQ CU-PC24KKQ
CS-PC18KKQ-6 CU-PC18KKQ-6
CS-PC24KKQ-6 CU-PC24KKQ-6 .............24
10. Printed Circuit Board .......................................25
10.1 Indoor Unit ..................................................25
11. Installation Instruction.....................................28
11.1 Select the Best Location.............................28
11.2 Indoor Unit ..................................................29
11.3 Outdoor Unit ...............................................33
12. Operation Control.............................................37
12.1 Cooling Operation.......................................37
12.2 Soft Dry Operation......................................39
12.3 Automatic Operation...................................41
12.4 Indoor Fan Speed Control ..........................42
12.5 Outdoor Fan Speed Control .......................44
12.6 Vertical Airflow Direction Control................44
12.7 Horizontal Airflow Direction Control............46
12.8 Timer Control..............................................46
12.9 Random Auto Restart Control ....................46
12.10 Remote Control Signal Receiving Sound ...46
13. Protection Control............................................47
13.1 Restart Control (Time Delay Safety Control)..
....................................................................47
2
1. Safety Precautions
• Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing.
• Electrical work must be installed or serviced by a licensed electrician. Be sure to use the correct rating of the
power plug and main circuit for the model installed.
• The caution items stated here must be followed because these important contents are related to safety. The
meaning of each indication used is as below. Incorrect installation or servicing due to ignoring of the instruction
will cause harm or damage, and the seriousness is classified by the following indications.

WARNING This indication shows the possibility of causing death or serious injury.

CAUTION This indication shows the possibility of causing injury or damage to properties.

• The items to be followed are classified by the symbols:

This symbol denotes item that is PROHIBITED from doing.

• Carry out test run to confirm that no abnormality occurs after the servicing. Then, explain to user the operation,
care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for
future reference.

WARNING

1. Do not modify the machine, part, material during repairing service.

2. If wiring unit is supplied as repairing part, do not repair or connect the wire even only partial wire break. Exchange the whole wiring unit.

3. Do not wrench the fasten terminal. Pull it out or insert it straightly.

4. Engage authorized dealer or specialist for installation and servicing. If installation of servicing done by the user is defective, it will cause water
leakage, electrical shock or fire.

5. Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electric shock or fire.

6. Use the attached accessories parts and specified parts for installation and servicing. Otherwise, it will cause the set to fall, water leakage, fire
or electrical shock.
7. Install at a strong and firm location which is able to withstand the set’s weight. If the strength is not enough or installation is not properly done,
the set will drop and cause injury.
8. For electrical work, follow the local national wiring standard, regulation and the installation instruction. An independent circuit and single outlet
must be used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.
9. This equipment is strongly recommended to be installed with Earth Leakage Circuit Breaker (ELCB) or Residual Current Device (RCD).
Otherwise, it may cause electrical shock and fire in case equipment breakdown or insulation breakdown.
10. Do not use joint cable for indoor/outdoor connection cable. Use the specified indoor/outdoor connection cable, refer to installation instruction
CONNECT THE CABLE TO THE INDOOR UNIT and connect tightly for indoor/outdoor connection. Clamp the cable so that no external force
will be acted on the terminal. If connecting or fixing is not perfect, it will cause heat up or fire at the connection.
11. Wire routing must be properly arranged so that control board cover is fixed properly. If control board cover is not fixed perfectly, it will cause
heat-up or fire at the connection point of terminal, fire or electrical shock.
12. When install or relocate air conditioner, do not let any substance other than the specified refrigerant, eg. air etc. mix into refrigeration cycle
(piping). (Mixing of air etc. will cause abnormal high pressure in refrigeration cycle and result in explosion, injury etc.).
13. Do not install outdoor unit near handrail of veranda. When installing air-conditioner unit at veranda of high rise building, child may
climb up to outdoor unit and cross over the handrail and causing accident.
14. This equipment must be properly earthed. Earth line must not be connected to gas pipe, water pipe, earth of lightning rod and
telephone. Otherwise, it may cause electrical shock in case equipment breakdown or insulation breakdown.
15. Keep away from small children, the thin film may cling to nose and mouth and prevent breathing.

16. Do not use unspecified cord, modified cord, joint cord or extension cord for power supply cord. Do not share the single outlet with
other electrical appliances. Poor contact, poor insulation or over current will cause electrical shock or fire.

17. Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the flare may
break and cause refrigerant gas leakage.
18. During pump down operation, stop the compressor before remove the refrigeration piping. (Removal of refrigeration piping while
compressor is operating and valves are opened condition will cause suck-in of air, abnormal high pressure in refrigeration cycle and
result in explosion, injury etc.).
19. During installation, install the refrigerant piping properly before run the compressor. (Operation of compressor without fixing refrigeration
piping and valves at opened condition will cause suck-in of air, abnormal high pressure in refrigeration cycle and result in explosion, injury
etc.).

3
20. After completion of installation or service, confirm there is no leakage of refrigerant gas. It may generate toxic gas when the refrigerant
contacts with fire.
21. Ventilate if there is refrigerant gas leakage during operation. It may cause toxic gas when the refrigerant contacts with fire.

22. Do not insert your fingers or other objects into the unit, high speed rotating fan may cause injury.

23. Must not use other parts except original parts describe in catalog and manual.

CAUTION
1. Do not install the unit at place where leakage of flammable gas may occur. In case gas leaks and accumulates at surrounding of the
unit, it may cause fire.

2. Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water may enter the room and damage
the furniture.
3. Tighten the flare nut with torque wrench according to specified method. If the flare nut is over-tightened, after a long period, the flare
may break and cause refrigerant gas leakage.
4. Do not touch outdoor unit air inlet and aluminium fin. It may cause injury.

5. Select an installation location which is easy for maintenance.

6. Pb free solder has a higher melting point than standard solder; typically the melting point is 50°F – 70°F (30°C – 40°C) higher. Please use
a high temperature solder iron. In case of the soldering iron with temperature control, please set it to 700 ± 20°F (370 ± 10°C).
Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).
7. Power supply connection to the air conditioner. Connect the power supply cord of the air conditioner to the mains using one of the following
methods.
Power supply point shall be the place where there is ease for access for the power disconnection in case of emergency. In some countries,
permanent connection of this room air conditioner to the power supply is prohibited.
i. Power supply connection to the receptacle using a power plug.
Use an approved 15/16A (1.0 ~ 1.5HP) or 16A (2.0HP) or 20A (2.5HP) power plug with earth pin for the connection to the socket.
ii. Power supply connection to a circuit breaker for the permanent connection.
Use an approved 16A (1.0 ~ 1.5HP) or 20A (2.5HP) circuit breaker for the permanent connection. It must be a double pole switch with a
minimum 3.0 mm contact gap.
8. Do not release refrigerant during piping work for installation, servicing, reinstallation and during repairing a refrigerant parts. Take
care of the liquid refrigerant, it may cause frostbite.

9. Installation or servicing work: It may need two people to carry out the installation or servicing work.

10. Do not install this appliance in a laundry room or other location where water may drip from the ceiling, etc.

11. Do not sit or step on the unit, you may fall down accidentally.

12. Do not touch the sharp aluminium fin, sharp parts may cause injury.

4
2. Specification
Indoor CS-PC9KKQ (PHILIPPINES) CS-PC12KKQ (PHILIPPINES)
Model
Outdoor CU-PC9KKQ (PHILIPPINES) CU-PC12KKQ (PHILIPPINES)
Performance Test Condition JIS JIS
Phase, Hz Single, 60 Single, 60
Power Supply
V 230 230
kW 2.65 3.54
Capacity BTU/h 9040 12070
kJ/h 9540 12740
Running Current A 4.0 5.5
Input Power W 860 1240
Cooling

W/W 3.08 2.85

EER
kJ/hW 11.10 10.30
Power Factor % 93 98
dB-A 36 / 26 40 / 29
Indoor Noise (H / L)
Power Level dB 49 / - 53 / -
dB-A 49 / - 50 / -
Outdoor Noise (H / L)
Power Level dB 64 / - 65 / -
Max Current (A) / Max Input Power (W) 4.6 / 990 6.5 / 1450
Starting Current (A) 23.0 33.0
Type Rotary (1 cylinder) rolling piston type Rotary (1 cylinder) rolling piston type
Compressor Motor Type Induction (2 poles) Induction (2 poles)
Output Power W 600 850
Type Cross-Flow Fan Cross-Flow Fan
Material ASG20K1 ASG20K1
Motor Type Induction (4 poles) Induction (4 poles)
Input Power W 52.3 52.3
Indoor Fan

Output Power W 22 22
Lo rpm 650 750
Me rpm 850 930
Speed
Hi rpm 1030 1100
SHi rpm - -
Type Propeller Fan Propeller Fan
Material PP Resin PP Resin
Outdoor Fan

Motor Type Induction (6 poles) Induction (6 poles)

Input Power W 68 79.9
Output Power W 30 30
Speed Hi rpm 815 835
Moisture Removal L/h (Pt/h) 1.6 (3.4) 2.0 (4.2)
3 3
Lo m /min (ft /min) 6.3 (223) 7.6 (267)
3 3
Me m /min (ft /min) 8.3 (291) 9.4 (332)
Indoor Airflow 3 3
Hi m /min (ft /min) 10.0 (353) 10.4 (367)
3 3
SHi m /min (ft /min) - -
Outdoor 3 3
Hi m /min (ft /min) 29.2 (1030) 32.6 (1150)
Airflow
Control Device Capillary Tube Capillary Tube
Refrigeration 3
Refrigerant Oil cm ATMOS M60 or Suniso 4GDID (290) ATMOS M60 or Suniso 4GDID (350)
Cycle
Refrigerant Type g (oz) R22, 590 (20.8) R22, 610 (21.5)

5
 Height(I/D / O/D) mm (inch) 290 (11-7/16) / 510 (20-3/32) 290 (11-7/16) / 540 (20-3/32)
Dimension Width (I/D / O/D) mm (inch) 870 (34-9/32) / 650 (25-19/32) 870 (34-9/32) / 780 (30-23/32)
Depth (I/D / O/D) mm (inch) 204 (8-1/16) / 230 (9-1/16) 204 (8-1/16) / 289 (11-13/32)
Weight Net (I/D / O/D) kg (lb) 9 (20) / 23 (50) 9 (20) / 29 (64)
Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 9.52 (3/8) 6.35 (1/4) / 12.70 (1/2)
Standard length m (ft) 7.5 (24.6) 7.5 (24.6)
Length range (min – max) m (ft) 3 (9.8) ~ 10 (32.8) 3 (9.8) ~ 15 (49.2)
Piping

I/D & O/D Height different m (ft) 5 (16.4) 5 (16.4)

Additional Gas Amount g/m (oz/ft) 10 (0.1) 10 (0.1)
Length for Additional Gas m (ft) 7.5 (24.6) 7.5 (24.6)
Inner Diameter mm 16 16
Drain Hose
Length mm 550 550
Fin Material Aluminium (Pre coated) Aluminium (Pre coated)

Indoor Heat Fin Type Slit Fin Slit Fin

Exchanger Row x Stage x FPI 2 x 15 x 21 2 x 15 x 21
Size (W x H x L) mm 610 x 315 x 25.4 610 x 315 x 25.4
Fin Material Aluminium (Blue coated) Aluminium (Blue coated)
Outdoor Fin Type Corrugated Fin Slit Fin
Heat
Exchanger Row x Stage x FPI 1 x 19 x 17 1 x 24 x 17
Size (W x H x L) mm 22 x 482.6 x 567.4 12.7 x 504 x 718.4
Material Polypropelene Polypropelene
Air Filter
Type One-touch One-touch
Power Supply Indoor Indoor
Power Supply Cord A 10 10
Thermostat - -
Protection Device - -
DRY BULB WET BULB DRY BULB WET BULB
Maximum 32 23 32 23
Indoor Operation Range
Minimum 16 11 16 11
Maximum 43 26 43 26
Outdoor Operation Range
Minimum 16 11 16 11

1. Cooling capacities are based on indoor temperature of 27°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air
temperature of 35°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb).
2. Specifications are subjected to change without prior notice for further improvement.

6
 Indoor CS-PC18KKQ (PHILIPPINES) CS-PC24KKQ (PHILIPPINES)
Model
Outdoor CU-PC18KKQ (PHILIPPINES) CU-PC24KKQ (PHILIPPINES)
Performance Test Condition NEW JIS NEW JIS
Phase, Hz Single, 60 Single, 60
Power Supply
V 220 230 220 230
kW 5.22 5.22 7.03 7.03
Capacity BTU/h 17800 17800 24000 24000
kJ/h 18800 18800 25310 25310
Running Current A 8.7 8.3 13.1 12.8
Input Power W 1870 1880 2790 2820
Cooling

W/W 2.79 2.78 2.52 2.49

EER
kJ/hW 10.1 10.0 9100 9000
Power Factor % 98 98 97 96
dB-A 43 / 39 43 / 39 47 / 42 47 / 42
Indoor Noise (H / L)
Power Level dB - -
dB-A 54 / - 55 / - 60 / - 61 / -
Outdoor Noise (H / L)
Power Level dB - -
Max Current (A) / Max Input Power (W) 9.6 / 2160 14.3 / 2870
Starting Current (A) 38.0 63.0
Type Rotary (1 cylinder) rolling piston type Rotary (1 cylinder) rolling piston type
Compressor Motor Type Induction (2 poles) Induction (2 poles)
Output Power W 1200 1800
Type Cross-Flow Fan Cross-Flow Fan
Material ASG20K1 ASG20K1
Motor Type DC Motor (4 poles) DC Motor (8 poles)
Input Power W 94.8 94.8 94.8 94.8
Indoor Fan

Output Power W 40 40
Lo rpm 1060 1150
Me rpm 1150 1240
Speed
Hi rpm 1240 1390
SHi rpm - -
Type Propeller Fan Propeller Fan
Material PP Resin PP Resin
Outdoor Fan

Motor Type Induction (6 poles) Induction (6 poles)

Input Power W 76.2 86.5 148.4 158.6
Output Power W 35 72
Lo rpm - 490 510
Speed
Hi rpm 820 835 850 870
Moisture Removal L/h (Pt/h) 2.9 (6.1) 4.0 (8.5)
3 3
Lo m /min (ft /min) 13.8 (489) 15.5 (546)
3 3
Indoor Airflow Me m /min (ft /min) 15.0 (531) 16.7 (589)
3 3
Hi m /min (ft /min) 16.2 (572) 18.7 (660)
Outdoor 3 3
Hi m /min (ft /min) 30.4 (1073) 30.8 (1090) 51.0 (1800) 52.5 (1850)
Airflow
Control Device Capillary Tube Capillary Tube
Refrigeration 3
Refrigerant Oil cm ATMOS M60 or Suniso 4GDID (650) ATMOS M60 or Suniso 4GDID (1130)
Cycle
Refrigerant Type g (oz) R22, 1000 (35.3) R22, 1410 (49.8)
Height(I/D / O/D) mm (inch) 290 (11-7/16) / 540 (21-1/4) 290 (11-7/16) / 750 (29-17/32)
Dimension Width (I/D / O/D) mm (inch) 1070 (42-5/32) / 780 (30-23/32) 1070 (42-5/32) / 875 (34-15/32)
Depth (I/D / O/D) mm (inch) 235 (9-9/32) / 289 (11-3/8) 235 (9-9/32) / 345 (13-19/32)

7
 Weight Net (I/D / O/D) kg (lb) 12.0 (26) / 35 (77) 12 (26) / 56 (123)
Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 12.70 (1/2) 6.35 (1/4) / 15.88 (5/8)
Standard length m (ft) 5.0 (16.4) 5.0 (16.4)
Length range (min – max) m (ft) 3 (9.8) ~ 25 (82.0) 3 (9.8) ~ 25 (82.0)
Piping

I/D & O/D Height different m (ft) 20 (65.6) 20 (65.6)

Additional Gas Amount g/m (oz/ft) 20 (0.2) 30 (0.3)
Length for Additional Gas m (ft) 7.5 (24.6) 7.5 (24.6)
Inner Diameter mm 14 14
Drain Hose
Length mm 550 550
Fin Material Aluminium (Pre coated) Aluminium (Pre coated)

Indoor Heat Fin Type Slit Fin Slit Fin

Exchanger Row x Stage x FPI 2 x 15 x 21 2 x 15 x 21
Size (W x H x L) mm 810 x 315 x 25.4 810 x 315 x 25.4
Fin Material Aluminium (Blue coated) Aluminium (Blue coated)
Outdoor Fin Type Slit Fin Slit Fin
Heat
Exchanger Row x Stage x FPI 2 x 24 x 17 1 x 34 x 17
Size (W x H x L) mm 25.4 x 504 x 693.4:713.4 25.4 x 714.0 x 806.2:826.2
Material Polypropelene Polypropelene
Air Filter
Type One-touch One-touch
Power Supply Indoor Indoor
Power Supply Cord A 16 20
Thermostat - -
Protection Device - -
DRY BULB WET BULB DRY BULB WET BULB
Maximum 32 23 32 23
Indoor Operation Range
Minimum 16 11 16 11
Maximum 43 26 43 26
Outdoor Operation Range
Minimum 16 11 16 11

1. Cooling capacities are based on indoor temperature of 27°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air
temperature of 35°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)
2. Specifications are subjected to change without prior notice for further improvement.

8
 Indoor CS-PC18KKQ-6 (MEXICO) CS-PC24KKQ-6 (MEXICO)
Model
Outdoor CU-PC18KKQ-6 (MEXICO) CU-PC24KKQ-6 (MEXICO)
Performance Test Condition NEW JIS NEW JIS
Phase, Hz Single, 60 Single, 60
Power Supply
V 220 220
kW 5.22 7.03
Capacity BTU/h 17800 24000
kJ/h 18800 25310
Running Current A 8.7 13.1
Input Power W 1870 2790
Cooling

W/W 2.79 2.52

EER
kJ/hW 10.1 9.1
Power Factor % 98 97
dB-A 43 / 39 47 / 42
Indoor Noise (H / L)
Power Level dB - -
dB-A 54 / - 60 / -
Outdoor Noise (H / L)
Power Level dB - -
Max Current (A) / Max Input Power (W) 9.6 / 2160 14.3 / 2870
Starting Current (A) 38.0 63.0
Type Rotary (1 cylinder) rolling piston type Rotary (1 cylinder) rolling piston type
Compressor Motor Type Induction (2 poles) Induction (2 poles)
Output Power W 1200 1800
Type Cross-Flow Fan Cross-Flow Fan
Material ASG20K1 ASG20K1
Motor Type DC Motor (4 poles) DC Motor (8 poles)
Input Power W 94.8 94.8
Indoor Fan

Output Power W 40 40
Lo rpm 1060 1150
Me rpm 1150 1240
Speed
Hi rpm 1240 1390
SHi rpm - -
Type Propeller Fan Propeller Fan
Material PP Resin PP Resin
Outdoor Fan

Motor Type Induction (6 poles) Induction (6 poles)

Input Power W 76.2 134.1
Output Power W 35 72
Lo rpm - -
Speed
Hi rpm 820 800
Moisture Removal L/h (Pt/h) 2.9 (6.1) 4.0 (8.5)
3 3
Lo m /min (ft /min) 13.8 (489) 15.5 (546)
3 3
Me m /min (ft /min) 15.0 (531) 16.7 (589)
Indoor Airflow 3 3
Hi m /min (ft /min) 16.2 (572) 18.7 (660)
3 3
SHi m /min (ft /min) - -
Outdoor 3 3
Hi m /min (ft /min) 30.8 (1090) 52.5 (1850)
Airflow
Control Device Capillary Tube Capillary Tube
Refrigeration 3
Refrigerant Oil cm ATMOS M60 or Suniso 4GDID (650) ATMOS M60 or Suniso 4GDID (1130)
Cycle
Refrigerant Type g (oz) R22, 1000 (35.3) R22, 1410 (49.8)

9
 Height(I/D / O/D) mm (inch) 290 (11-7/16) / 540 (21-1/4) 290 (11-7/16) / 750 (29-17/32)
Dimension Width (I/D / O/D) mm (inch) 1070 (42-5/32) / 780 (30-23/32) 1070 (42-5/32) / 875 (34-15/32)
Depth (I/D / O/D) mm (inch) 235 (9-9/32) / 289 (11-3/8) 235 (9-9/32) / 345 (13-19/32)
Weight Net (I/D / O/D) kg (lb) 12.0 (26) / 35.0 (77) 12.0 (26) / 56.0 (123)
Pipe Diameter (Liquid / Gas) mm (inch) 6.35 (1/4) / 12.70 (1/2) 6.35 (1/4) / 15.88 (5/8)
Standard length m (ft) 5.0 (16.4) 5.0 (16.4)
Length range (min – max) m (ft) 3 (9.8) ~ 25 (82.0) 3 (9.8) ~ 25 (82.0)
Piping

I/D & O/D Height different m (ft) 20 (65.6) 20 (65.6)

Additional Gas Amount g/m (oz/ft) 20 (0.2) 30 (0.3)
Length for Additional Gas m (ft) 7.5 (24.6) 7.5 (24.6)
Inner Diameter mm 14 14
Drain Hose
Length mm 550 550
Fin Material Aluminium (Pre coated) Aluminium (Pre coated)

Indoor Heat Fin Type Slit Fin Slit Fin

Exchanger Row x Stage x FPI 2 x 15 x 21 2 x 15 x 21
Size (W x H x L) mm 810 x 315 x 25.4 810 x 315 x 25.4
Fin Material Aluminium (Blue coated) Aluminium (Blue coated)
Outdoor Fin Type Slit Fin Slit Fin
Heat
Exchanger Row x Stage x FPI 2 x 24 x 17 2 x 34 x 17
Size (W x H x L) mm 25.4 x 504 x 693.4:713.4 25.4 x 714.0 x 806.2:826.2
Material Polypropelene Polypropelene
Air Filter
Type One-touch One-touch
Power Supply Indoor Indoor
Power Supply Cord A 16 20
Thermostat - -
Protection Device - -
DRY BULB WET BULB DRY BULB WET BULB
Maximum 32 23 32 23
Indoor Operation Range
Minimum 16 11 16 11
Maximum 43 26 43 26
Outdoor Operation Range
Minimum 16 11 16 11

1. Cooling capacities are based on indoor temperature of 27°C Dry Bulb (80.6°F Dry Bulb), 19.0°C Wet Bulb (66.2°F Wet Bulb) and outdoor air
temperature of 35°C Dry Bulb (95°F Dry Bulb), 24°C Wet Bulb (75.2°F Wet Bulb)
2. Specifications are subjected to change without prior notice for further improvement.

10
3. Features
• Long Installation Piping
o CS/CU-PC9KK long piping up to 10 meters.
o CS/CU-PC12KK long piping up to 15 meters.
o CS/CU-PC18KK, PC24KK long piping up to 25 meters.

• Easy to use remote control

• Quality Improvement
o Random auto restart after power failure for safety restart operation
o Gas leakage protection
o Prevent compressor reverse cycle
o Overload protector to protect compressor
o Noise prevention during soft dry operation
o Blue coated condenser for high resistance to corrosion

• Operation Improvement
o 24-hour timer setting

11
4. Location of Controls and Components
4.1 Indoor Unit

4.2 Outdoor Unit

4.3 Remote Control

12
5. Dimensions
5.1 Indoor Unit
5.1.1 CS-PC9KKQ CS-PC12KKQ

13
5.1.2 CS-PC18KKQ CS-PC24KKQ CS-PC18KKQ-6 CS-PC24KKQ-6

14
5.2 Outdoor Unit
5.2.1 CU-PC9KKQ

5.2.2 CU-PC12KKQ CU-PC18KKQ CU-PC18KKQ-6

15
5.2.3 CU-PC24KKQ CU-PC24KKQ-6

16
6. Refrigeration Cycle Diagram
INDOOR OUTDOOR

LIQUID CAPILLARY
SIDE TUBE STRAINER

2-WAY
VALVE

INTAKE
AIR
PIPE
TEMP
TEMP
SENSOR
SENSOR
HEAT EXCHANGER
(CONDENSER)

HEAT EXCHANGER
(EVAPORATOR)

GAS
SIDE

3-WAY
VALVE

COMPRESSOR

17
7. Block Diagram
7.1 CS-PC9KKQ CU-PC9KKQ CS-PC12KKQ CU-PC12KKQ
CS-PC18KKQ CU-PC18KKQ CS-PC24KKQ CU-PC24KKQ
CS-PC18KKQ-6 CU-PC18KKQ-6 CS-PC24KKQ-6 CU-PC24KKQ-6

18
8. Wiring Connection Diagram
8.1 CS-PC9KKQ CU-PC9KKQ

Resistance of Indoor Fan Motor Windings Resistance of Compressor Windings

MODEL CS-PC9KKQ MODEL CU-PC9KKQ
CONNECTION CWA921420 CONNECTION 2RS13C236BSC
BLUE-YELLOW 192Ω C-R 3.298Ω
YELLOW-RED 226Ω C-S 5.500Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.

Resistance of Outdoor Fan Motor Windings

MODEL CU-PC9KKQ
CONNECTION CWA951562
BLUE-YELLOW 307.4Ω
YELLOW-RED 202.4Ω
Note: Resistance at 20°C of ambient temperature.

19
8.2 CS-PC12KKQ CU-PC12KKQ

Resistance of Indoor Fan Motor Windings Resistance of Compressor Windings

MODEL CS-PC12KKQ MODEL CU-PC12KKQ
CONNECTION CWA921420 CONNECTION 2PS19S236A1L
BLUE-YELLOW 192Ω C-R 2.237Ω
YELLOW-RED 226Ω C-S 2.710Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.

Resistance of Outdoor Fan Motor Windings

MODEL CU-PC12KKQ
CONNECTION CWA951329J
BLUE-YELLOW 258Ω
YELLOW-RED 245Ω
Note: Resistance at 20°C of ambient temperature.

20
8.3 CS-PC18KKQ CU-PC18KKQ CS-PC18KKQ-6 CU-PC18KKQ-6

Resistance of Outdoor Fan Motor Windings Resistance of Compressor Windings

MODEL CU-PC18KKQ / CU-PC18KKQ-6 MODEL CU-PC18KKQ / CU-PC18KKQ-6
CONNECTION CWA951329J CONNECTION 2K25S236F6B
BLUE-YELLOW 258.3Ω C-R 1.505Ω
YELLOW-RED 249.9Ω C-S 1.809Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.

21
8.4 CS-PC24KKQ CU-PC24KKQ CS-PC24KKQ-6 CU-PC24KKQ-6

Resistance of Outdoor Fan Motor Windings Resistance of Compressor Windings

MODEL CU-PC24KKQ / CU-PC24KKQ-6 MODEL CU-PC24KKQ / CU-PC24KKQ-6
CONNECTION CWA951399J CONNECTION 2J39S236A1A
BLUE-YELLOW 59.47Ω C-R 0.933Ω
YELLOW-RED 60.95Ω C-S 1.584Ω
YELLOW-ORANGE 80.58Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature.

22
9. Electronic Circuit Diagram
9.1 CS-PC9KKQ CU-PC9KKQ CS-PC12KKQ CU-PC12KKQ

23
9.2 CS-PC18KKQ CU-PC18KKQ CS-PC24KKQ CU-PC24KKQ
CS-PC18KKQ-6 CU-PC18KKQ-6 CS-PC24KKQ-6 CU-PC24KKQ-6

24
10. Printed Circuit Board
10.1 Indoor Unit
10.1.1 Main Printed Circuit Board

25
10.1.2 Power Printed Circuit Board

10.1.2.1 CS-PC9KKQ CS-PC12KKQ

10.1.2.2 CS-PC18KKQ CS-PC24KKQ CS-PC18KKQ-6 CS-PC24KKQ-6

26
10.1.3 Indicator Printed Circuit Board

27
 11.1.3 Indoor/Outdoor Unit Installation
11. Installation Instruction Diagram

11.1 Select the Best Location

11.1.1 Indoor Unit
• Do not install the unit in excessive oil fume area
such as kitchen, workshop and etc.
• There should not be any heat source or steam
near the unit.
• There should not be any obstacles blocking the air
circulation.
• A place where air circulation in the room is good.
• A place where drainage can be easily done.
• A place where noise prevention is taken into
consideration.
• Do not install the unit near the door way.
• Ensure the spaces indicated by arrows from the
wall, ceiling, fence or other obstacles.
• Recommended installation height for indoor unit
shall be at least 2.5 m.

11.1.2 Outdoor Unit

• If an awning is built over the unit to prevent direct
sunlight or rain, be careful that heat radiation from
the condenser is not obstructed.
• There should not be any animal or plant which
could be affected by hot air discharged.
• Keep the spaces indicated by arrows from wall,
ceiling, fence or other obstacles.
• Do not place any obstacles which may cause a
short circuit of the discharged air.
• If piping length is over the [piping length for
additional gas], additional refrigerant should be
added as shown in the table.

Example: For PC18***

If the unit is installed at 10 m distance, the quantity of
additional refrigerant should be 50 g….(10-7.5) m x 20
g/m = 50 g.

28
11.2 Indoor Unit
11.2.1 How to Fix Installation Plate
The mounting wall is strong and solid enough to prevent if from the vibration.

The centre of installation plate should be at more than c at right and left of the wall.
The distance from installation plate edge to ceiling should more than d.
From installation plate left edge to unit’s left side is e.
From installation plate right edge to unit’s right side is f.

○
B : For left side piping, piping connection for liquid should be about g from this line.
: For left side piping, piping connection for gas should be about h from this line.

1 Mount the installation plate on the wall with 5 screws or more (at least 5 screws).
(If mounting the unit on the concrete wall, consider using anchor bolts.)
o Always mount the installation plate horizontally by aligning the marking-off line with the thread and using
a level gauge.
2 Drill the piping plate hole with ø70mm hole-core drill.
o Putting measuring tape at position as shown in the diagram above.
The hole centre is obtained by measuring the distance namely 128 mm for left and right hole
respectively. Another method is intersection point of arrow mark extension.
The meeting point of the extension arrow mark is the hole center position.
o Drill the piping hole at either the right or the left and the hole should be slightly slanting to the outdoor
side. (refer to step 3)

11.2.2 To Drill a Hole in the Wall and

Install a Sleeve of Piping
1 Insert the piping sleeve to the hole.
2 Fix the busing to the sleeve.
3 Cut the sleeve until it extrudes about 15mm
from the wall.

4 Finish by sealing the sleeve with putty or

caulking compound at the final stage.

29
11.2.3 Indoor Unit Installation

11.2.3.1 For the right rear piping

11.2.3.2 For the right and right bottom

piping

11.2.3.3 For the embedded piping

(This can be used for left rear piping and bottom

piping also.)

30
11.2.4 Connect the Cable to the Indoor
Unit
1. The inside and outside connecting cable can
be connected without removing the front grille.
2. a) INDOOR POWER SUPPLY MODEL
(1.0 ~ 2.5HP except SINGAPORE model)
Connecting cable between indoor unit and
outdoor unit shall be approved
polychloroprene sheathed 3 x 1.5 mm2 (1.0 ~
1.5HP), 3 x 2.5 mm2 (2.0 ~ 2.5HP) flexible
cord, type designation 245 IEC 57 or heavier
cord. Do not use joint connection cable.
Replace the wire if the existing wire (from
concealed wiring, or otherwise) is too short.

• Secure the connecting cable onto the control board with the holder.
This equipment must be properly earthed.

31
 b) OUTDOOR POWER SUPPLY MODEL
(3.0HP and SINGAPORE MODEL)
Connecting cable between indoor unit and
outdoor unit shall be approved polychloroprene
sheathed 4 x 1.5 mm2 [(1.0 ~ 2.5HP) for
Singapore models and (3.0HP)] flexible cord,
type designation 245 IEC 57 or heavier cord. Do
not use joint connection cable. Replace the wire
if the existing wire (from concealed wiring, or
otherwise) is too short.

• Secure the connecting cable onto the control board with the holder.
This equipment must be properly earthed.

• Ensure the colour of wires of outdoor unit and the terminal Nos. are the same to the indoor’s respectively.
• Earth wire shall be Yellow/Green (Y/G) in colour and longer than the other AC wires for safety reason.

11.2.5 Wire Stripping And Connecting Requirement

11.2.5.1 Cutting and flaring the piping

1 Please cut using pipe cutter and then remove the burrs.
2 Remove the burrs by using reamer. If burrs are not removed, gas leakage may be caused. Turn the piping
end down to avoid the metal powder entering the pipe.
3 Please make flare after inserting the flare nut onto the copper pipes.

32
11.3 Outdoor Unit
11.3.1 Install the Outdoor Unit
• After selecting the best location, start installation according to indoor/outdoor unit installation diagram.
1 Fix the unit on concrete or rigid frame firmly and horizontally by bolt nut (ø10mm).
2 When installing at roof, please consider strong wind and earthquake.
Please fasten the installation stand firmly with bolt or nails.

A B Model A B C D
PC9 *** 474 mm 87 mm 18.5 mm 261 mm

C
PC12***, 570 mm 105 mm 18.5 mm 320 mm
PC18***
PC24***, 612.5 mm 131 mm 19 mm 383 mm
PC28***, KC28***

D
CAUTION
11.3.2 Connecting the Piping
Do not over tighten, over tightening may cause gas leakage.
Piping size Torque
11.3.2.1 Connecting the piping to 1/4” (6.35 mm) [18 N•m (1.8 kgf.m)]
indoor unit 3/8” (9.52 mm) [42 N•m (4.3 kgf.m)]
1/2” (12.7 mm) [55 N•m (5.6 kgf.m)]
Please make flare after inserting flare nut (locate at 5/8” (15.88 mm) [65 N•m (6.6 kgf.m)]
joint portion, of tube assembly) onto the copper pipe. 3/4” (19.05 mm) [100 N•m (10.2 kgf.m)]
(In case of using long piping)

Connect the piping

• Align the center of piping and sufficiently tighten
the flare nut with fingers.
• Further tighten the flare nut with torque wrench in
specified torque as stated in the table. Spanner
or Wrench
11.3.2.2 Connecting the piping to Torque
outdoor unit wrench
Decide piping length and then cut by using pipe cutter.
Remove burrs from cut edge.
Make flare after inserting the flare nut (locate at valve)
onto the copper pipe.
Align center of piping to valves and then tighten with
torque wrench to the specified torque as stated in the
table.

33
11.3.3 Evacuation of the Equipment

1 Connect a charging hose with a push pin to the Low side of a charging set and the service port of the 3-way
valve.
o Be sure to connect the end of the charging hose with the push pin to the service port.
2 Connect the center hose of the charging set to a vacuum pump.
3 Turn on the power switch of the vacuum pump and make sure that the needle in the gauge moves from
0 cmHg (0 MPa) to -76 cmHg (-0.1 MPa). Then evacuate the air approximately ten minutes.
4 Close the Low side valve of the charging set and turn off the vacuum pump. Make sure that the needle in the
gauge does not move after approximately five minutes.
Note: BE SURE TO TAKE THIS PROCEDURE IN ORDER TO AVOID REFRIGERENT GAS LEAKAGE.
5 Disconnect the charging hose from the vacuum pump and from the service port of the 3-way valve.
6 Tighten the service port caps of the 3-way valve at a torque of 18 N•m with a torque wrench.
7 Remove the valve caps of both of the 2-way valve and 3-way valve. Position both of the valves to “OPEN”
using a hexagonal wrench (4 mm).
8 Mount valve caps onto the 2-way valve and the 3-way valve.
o Be sure to check for gas leakage.

34
11.3.4 Air Purging of the Piping and Indoor
The remaining air in the Refrigerant cycle which contains moisture may cause malfunction on the compressor.
1 Remove the caps from the 2-way and 3-way valves.
2 Remove the service-port cap from the 3-way valves.
3 To open the valve, turn the valve stem of 2-way valve counter-clockwise approx. 90° and hold it there for ten
seconds, then close it.
4 Check gas-leakage of the connecting portion of the pipings.
o For the left piping, refer to 4 (A).

11.3.5 Connect the cable to the Outdoor Unit

a) INDOOR POWER SUPPLY MODEL (1.0 ~ 2.5HP) 5. For wire stripping and connection requirement,
1. Remove the control board cover from the unit refer to instruction g of the indoor unit.
by loosening the screw.
2. Connecting cable between indoor unit and
outdoor unit shall be approved
polychloroprene sheathed 3 x 1.5mm2 (1.0 ~
1.5HP) or 3 x 2.5mm2 (2.0 ~ 2.5HP) flexible
cord, type designation 245 IEC 57 or heavier
cord. Do not use joint connection cable.
Replace the wire if the existing wire (from
concealed wiring, or otherwise) is too short.

3. Secure the cable onto the control board with

the holder.
4. Attach the control board cover back to the
original position with the screw.
This equipment must be properly earthed.

35
b) OUTDOOR POWER SUPPLY MODEL (3.0HP)
1 Remove the control board cover from the unit by loosening the screw.
2 Cable connection to the power supply through Isolating Devices (Disconnecting means).
o Connect the approved polychloroprene sheathed power supply cord 3 x 4.0 mm2 (3.0HP), type
designation 245 IEC 57 or heavier cord to the terminal board, and connect the others end of the cable to
Isolating Devices (Disconnecting means).
o Do not use joint power supply cord. Replace the wire if the existing wire (from concealed wiring, or
otherwise) is too short.
o In unavoidable case, joining of power supply cord between isolating devices and terminal board of air
conditioner shall be done by using approved socket and plug rated 25A (3.0HP). Wiring work to both
socket and plug must follow to national wiring standard.
3 Connecting cable between indoor unit and outdoor unit shall be approved polychloroprene sheathed 4 x 1.5
mm2 flexible cord, type designation 245 IEC 57 or heavier cord. Do not use joint connection cable. Replace
the wire if the existing wire (from concealed wiring, or otherwise) is too short.
4 Connect the power supply cord and connecting cable between indoor unit and outdoor unit according to the
diagram below.

5 Secure the power supply cord and connecting cable onto the control board with the holder.
6 Attach the control board cover back to the original position with screw.
7 For wire stripping and connection requirement, refer to instruction g of the indoor unit.
This equipment must be properly earthed.
• Note: Isolating Devices (Disconnecting means) should have minimum 3.0mm contact gap.
• Earth wire shall be Yellow/Green (Y/G) in colour and longer than other AC wires for safety reason.

11.3.6 Pipe Insulation

1 Please carry out insulation at pipe connection portion as mentioned in Indoor/Outdoor Unit Installation
Diagram. Please wrap the insulated piping end to prevent water from going inside the piping.
2 If drain hose or connecting piping is in the room (where dew may form), please increase the insulation by
using POLY-E-FOAM with thickness 6mm or above.

36
12. Operation Control
12.1 Cooling Operation
• Cooling operation can be set using remote control.
• This operation is applied to cool down the room temperature to the setting temperature set on the remote control.
• The remote control setting temperature, which takes the reading of intake air temperature sensor, can be
adjusted from 16°C to 30°C.
• During cooling operation, the compressor will stop and restart as shown in figure below:

12.1.1 Cooling Operation Time Diagram (For PC9/12KKQ)

37
12.1.2 Cooling Operation Time Diagram (For PC18/24KKQ, PC18/24KKQ-6)

38
12.2 Soft Dry Operation
• Soft Dry operation can be set using remote control.
• Soft Dry operation is applied to dehumidify and to perform a gentle cooling to the room.
• This operation starts when the intake air temperature sensor reaches -1.5°C from the setting temperature on the
remote control.
• When operation begins, Soft Dry will be switched “ON” for a maximum 10 minutes, then Soft Dry operation will be
turned “OFF” for a minimum 6 minutes. After that, the Soft Dry operation will be “ON” and “OFF” based on the
setting temperature as shown in figure below.
• However after 3 minutes of compressor off, during Soft Dry “OFF” (within 6 minutes Soft Dry restart control), the
indoor unit will start to operate at normal Cooling mode if the intake temperature is higher than Cooling “ON”
point.

12.2.1 Soft Dry Operation Time Diagram (For PC9/12KKQ)

39
12.2.2 Soft Dry Operation Time Diagram (For PC18/24KKQ, PC18/24KKQ-6)

40
12.3 Automatic Operation
• Automatic operation can be set using remote control.
• This operation starts to operate with indoor fan at SLo speed for 20 seconds to judge the intake air temperature.
• After judged the temperature, the operation mode is determined by referring to the below standard.

• Then, the unit starts to operate at determined operation mode, until it is switched off using remote control, with
the setting temperature as shown in table below.

• The setting temperature for all the operations can be changed one level up or one level down from the standard
temperature as shown in table below by pressing the temperature up or temperature down button at remote
control.

• The operation mode judging temperature and standard setting temperature can be increased by 2°C
permanently, by open the circuit of JX03 at indoor unit’s printed circuit board.

41
12.4 Indoor Fan Speed Control
• Indoor fan speed can be set using remote control

12.4.1 Fan Speed Rotation Chart

Speed Fan Speed (rpm)
CS-PC9KKQ CS-PC12KKQ CS-PC18KKQ / CS-PC24KKQ /
CS-PC18KKQ-6 CS-PC24KKQ-6
Hi 1030 1100 1240 1390
Me 850 930 1150 1240
HLo 690 790 1120 1210
CLo 650 750 1060 1150
Lo- 610 710 850 970
SLo 590 690 670 750

12.4.2 Automatic Fan Speed Control

• When set to Auto Fan Speed, the fan speed is adjusted between maximum and minimum setting as shown in the
table.
o Fan speed rotates in the range of Hi and Me.
o Deodorizing Control will be activated.

(For PC9/12KKQ)
Speed Mode SHi Hi Me HLo CLo Lo- SLo Stop
Hi ○
Cooling

Manual Me ○
Normal
Lo ○
Auto ○ ○ ○ ○
Manual ○ ○
Soft
Dry

Normal
Auto ○ ○
Mode Judgment ○

(For PC18/24KKQ. PC18/24KKQ-6)

Speed Mode SHi Hi Me HLo CLo Lo- SLo Stop
Hi ○
Cooling

Manual Me ○
Normal
Lo ○ ○
Auto ○ ○ ○ ○
○
Soft
Dry

Normal
○
Mode Judgment ○

42
• Auto Fan Speed during cooling operation:
1 Indoor fan will rotate alternately between off and on as shown in below diagram.
2 At the beginning of each compressor starts operation, indoor fan speed increases gradually for deodorizing
purpose.
3 For the first time the compressor operates, indoor fan will be switched to Hi fan speed from Lo- after 70
seconds from the start of compressor. This cause the room temperature to achieve the setting temperature
quickly.
4 During compressor stops, indoor fan will operate at Lo- for the beginning 3 minutes to prevent higher volume
of refrigerant in liquid form returning to the compressor.
5 After the compressor turned off for 3 minutes, indoor fan will start to operate at Lo- to circulate the air in the
room. This is to obtain the actual reading of the intake air temperature.
6 For the resume of compressor operation, indoor fan will operate at Me fan speed to provide comfort and
lesser noise environment, after 70 seconds from the restart of compressor.

• Auto Fan Speed during Soft Dry operation:

1 Indoor fan will rotate alternately between off and Lo-.
2 At the beginning of each compressor starts operation, indoor fan will increase fan speed gradually for
deodorizing purpose.
3 When compressor turned off for 6 minutes, indoor fan will start at Lo- to circulate the air in the room. This is
to obtain the actual reading of intake air temperature.

12.4.3 Manual Fan Speed Control

• Manual fan speed adjustment can be carried out by using the Fan Speed selection button at the remote control.
• There are 3 types of fan speed settings: Lo, Me, Hi.

12.4.4 Indoor Fan Motor rpm Abnormal Control

• Immediate after the fan motor is started, rpm abnormal control is performed every second.
• During fan motor on, if fan motor feedback ≥ 2550 rpm or < 50 rpm continuously for 10 seconds, the fan motor
error counter increased; fan motor is then stopped and restarted. If the fan motor error counter increased to 7,
then air conditioner will stop operation.

43
12.5 Outdoor Fan Speed Control
• There is only one speed for outdoor fan motor.
• When the air conditioner is turned on, the compressor and the outdoor fan will operate simultaneously.
• Likewise, both compressor and outdoor fan will stop at the same time if the unit is turned off.

12.6 Vertical Airflow Direction Control

12.6.1 Auto Control
• When the vertical airflow direction is set to Auto using the remote control, the louver swings up and down as
shown in the diagram.
• When stops operation using the remote control, the discharge vent is reset and stops at the closing position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that
condition, the louver will stop swinging.

(For PC9/12KKQ)

Horizontal

Upper limit for cooling mode

and soft dry mode/11°
Closing 22°
position
Swing up and down
/ 135°

Lower limit for cooling mode and

soft dry mode/33°

(For PC18/24KKQ, PC18/24KKQ-6)

Horizontal

Upper limit for cooling mode

and soft dry mode/17°
Closing 28°
position
Swing up and down
/ 148°

Lower limit for cooling mode and

soft dry mode/45°

44
12.6.2 Manual Control
• When the vertical airflow direction is set to Manual using the remote control, the automatic airflow is released and
the airflow direction louver move up and down in the range shown in the diagram.
• The louver can be adjusted by pressing the button to the desired louver position.
• When stop operation using the remote control, the discharge vent is reset, and stop at the closing position.

(For PC9/12KKQ)

Horizontal

Upper limit for

11° cooling mode and
Closing
soft dry mode
position 16°
/ 135°
21°

27°

33° Lower limit for cooling mode

and soft dry mode

(For PC18/24KKQ, PC18/24KKQ-6)

Horizontal

Upper limit for

17° cooling mode and
Closing
soft dry mode
position 22°
/ 148°
28°

33°

39° Lower limit for cooling mode

and soft dry mode

45
12.7 Horizontal Airflow Direction Control
The horizontal airflow direction louvers can be adjusted manually by hand.

12.8 Timer Control

12.8.1 ON Timer
• When the ON Timer is set using the remote control, the unit will start to operate slightly before the set time, so
that the room will reach nearly to the set temperature by the set time.
• For Cooling and Soft Dry operation, the operation will start 15 minutes before the set time.
• For Automatic operation, the indoor fan will operate at SLo speed for 20 seconds, 15 minutes before the set time
to detect the intake air temperature to determine the operation mode. The Power indicator will blink at this time.

12.8.2 OFF Timer

• When the OFF Timer is set by using the remote control, the unit will stop operate according to the desired setting.
Notes:
1 By pressing ON/OFF operation button, the ON Timer or OFF Timer setting will not be cancelled.
2 To cancel the previous timer setting, press CANCEL button.
3 To activate the previous timer setting, press SET button.
4 If main power supply is switched off, the Timer setting will be cancelled.

12.9 Random Auto Restart Control

• If there is a power failure during operation, the air conditioner will automatically restart after 3 to 4 minutes when
the power is resumed.
• It will start with previous operation mode and airflow direction.
• If there are more than one air conditioner unit in operation and power failure occur, restart time for each unit to
operate will be decided randomly using 4 parameters: intake air temperature, setting temperature, fan speed and
air swing louver position.
• This random Auto Restart Control is not available when Timer is set.
• This control can be omitted by open the circuit of JX02 (refer printed circuit board indoor unit). (For PC18/24KKQ,
PC18/24KKQ-6 only)

12.10 Remote Control Signal Receiving Sound

• Short beep sound will be heard when turn ON the air conditioner or enabling other operations.
• Long beep sound will be heard when turn OFF the air conditioner or disabling other operations.

46
13. Protection Control
13.1 Restart Control (Time Delay Safety Control)
• When the thermo-off temperature (temperature which compressor stops to operate) is reached during:
o Cooling operation – the compressor stops for 3 minutes (minimum) before resume operation.
o Soft Dry operation – the compressor stops for 6 minutes (minimum) before resume operation.
• If the operation is stopped by the remote control, the compressor will not turn on within 3 minutes from the
moment operation stop, although the unit is turn on again within the period.
• This phenomenon is to balance the pressure inside the refrigerant cycle.

13.2 7 Minutes Time Save Control

• The compressor will start automatically if it has stopped for 7 minutes and the intake air temperature falls
between the compressor ON (A) temperature and compressor OFF temperature (B) during the period.
• This phenomenon is to reduce the built up humidity inside a room.

13.3 60 Seconds Forced Operation

• Once the air conditioner is turned on, the compressor will not stop within 60 seconds in a normal operation
although the intake air temperature has reached the thermo-off temperature. However, force stop by pressing the
OFF/ON button at the remote control is permitted.
• The reason for the compressor to force operation for minimum 60 seconds is to allow the refrigerant oil run in a
full cycle and return back to the outdoor unit.

13.4 Starting Current Control

• When the compressor, outdoor fan motor and indoor fan motor are simultaneously started, the indoor fan motor
will start to operate 1.6 second later.
• The reason of the difference is to reduce the starting current flow.

13.5 Freeze Prevention Control

• If the temperature of the indoor heat exchanger falls below 2°C continuously for 4 minutes or more, the
compressor turns off. The fan speed setting remains the same.
• This phenomenon is to protect the indoor heat exchanger from freezing and to prevent higher volume of
refrigerant in liquid form returning to the compressor.
• Compressor will restart again when the indoor heat exchanger temperature rises to 10°C (Recovery).
• Restart control (Time Delay Safety Control) will be applied in this Control if the recovery time is too short.

47
(For PC9/12KKQ)
• The current fan speed will change to freeze prevention speed after 70 seconds compressor on. The fan speed
will be increased according to the indoor pipe temperature the figure below:

(ID temp) Pipe RPM shift

7.0°C
+0
6.0°C 5.0°C
+20
4.0°C 3.0°C
+40
2.0°C
+70

13.6 Compressor Reverse Rotation Protection Control

• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between
intake air and indoor heat exchanger is 2.5°C or less for continuously 2 minutes, compressor will stop and restart
automatically.
• Time Delay Safety Control is activated before the compressor restart.

Compressor starts for ≥ 5 minutes Compressor Compressor

▲T ≤ 2.5°C for 2 minutes OFF restart

▲ T = Intake air temperature – Indoor heat exchanger temperature

• This is to prevent compressor from rotate reversely when there is an instantaneous power failure.
• If this condition happens continuously for 5 times within 50 minutes, unit will turns OFF with TIMER indicator
blinks.
• The 5 Times counter can be reset when either one of the following condition happen:
o Unit is OFF by remote control or AUTO OFF/ON button.
o Indoor intake temperature – Indoor piping temperature > 5°C for 1 minute or more.
o Operation mode change.
• The unit could be ON by pressing OFF/ON button at remote control but the TIMER LED will continue blinking.
• TIMER LED blinking will be reset if:
o Indoor intake temperature – Indoor piping temperature > 5°C for 1 minute or more.
o Power supply reset.

13.7 Dew Prevention Control

• To prevent dew formation at indoor unit discharge area.
• This control will be activated if:
o Cooling mode.
o Remote Control setting temperature is less than 25°C.
o Fan speed is at CLo.
o Room temperature is constant (±1°C) for 60 minutes (For 9/12KKQ series) and 30 minutes (For 18/24KKQ,
18/24KKQ-6 series).
o Compressor is continuously running.
• Fan speed will be adjusted accordingly in this control.
o Fan speed will be increased slowly if the unit is in guiet mode but no change in normal cooling mode.
• Dew prevention stop condition
o Remote control setting temperature is more than 25°C.
o Fan speed is not set to CLo.

48
14. Servicing Mode
14.1 Auto OFF/ON Button
Auto OFF/ON Auto OFF/ON Auto OFF/ON
Button Pressed Button Pressed Button Pressed
5 sec 5 sec
Auto Operation Test Run Operation Stop Various Setting Mode Stop
(Forced Cooling Operation)
“Beep” 2 x “Beep”

1 AUTO OPERATION MODE

The Auto Operation will be activated immediately once the Auto OFF/ON button is pressed. This operation
can be used to operate air conditioner with limited function if remote control is misplaced or malfunction.

2 TEST RUN OPERATION (FOR PUMP DOWN/SERVICING PURPOSE)

The Test Run Operation will be activated if the Auto OFF/ON button is pressed continuously for more than 5
seconds. A “beep” sound will be heard at the fifth second, in order to identify the starting of this operation.

3 VARIOUS SETTING MODE

The Various Setting Mode will be activated if (within 20 seconds of Test Run Operation) the Auto OFF/ON
button is pressed for more than 5 seconds. 2 “beep” sounds will be heard to identify the starting of this
operation.
Under Various Setting Mode, user could perform the following operation:
i. Press Auto OFF/ON button to toggle remote control receiving sound.
- Short “beep”: Turn ON remote control receiving sound.
- Long “beep”: Turn OFF remote control receiving sound.

After Auto OFF/ON button is pressed, the 20 seconds counter for Remote Control Receiving Sound OFF/ON
Mode is restarted.
ii. Remote Control Number Switch.
- There are 4 types of remote control transmission code could be selected and stored in EEPROM of
indoor unit. The indoor unit will only operate when received signal with same transmission code from
remote control. This could prevent signal interference when there are 2 or more indoor units installed
nearby together.
- To change remote control transmission code, short or open jumpers at the remote control printed circuit
board.

Remote Control Printed Circuit Board

Jumper A (J-A) Jumper B (J-B) Remote Control No.
Short Open A (Default)
Open Open B
Short Short C
Open Short D

- During Various Setting Mode, press any button at remote control to transmit and store the desired
transmission code to the EEPROM.
- After signal is received, the Various Setting Mode is cancelled and return to normal operation.
- If there is no code is transmitted of Auto OFF/ON button is not pressed within 20 seconds, the
Various Setting Mode will be cancelled.

49
14.2 Remote Control Button
14.2.1 SET Button
• To check current remote control transmission code and store the transmission code to EEPROM:
o Press “Set” button for more than 10 seconds
o Press “Timer Set” button until a “beep” sound is heard as confirmation of transmission code change

14.2.2 CLOCK Button

• To change the remote control time format:
o Press for more than 5 seconds

14.2.3 RESET
• To clear and restore the remote control setting to factory default.
o Press once to clear the memory

14.2.4 TIMER ▲
• To change indoor unit indicators’ intensity:
o Press continuously for 5 seconds

14.2.5 TIMER ▼
• To change remote control display from Degree Celsius (°C) to Degree Fahrenheit (°F)
o Press continuously for 10 seconds

50
15. Troubleshooting Guide
15.1 Refrigeration cycle system
In order to diagnose malfunctions, ensure the air conditioner is free Normal Pressure and Outlet Air Temperature (Standard)
from electrical problems before inspecting the refrigeration cycle. Gas Pressure Outlet air
Mpa Temperature
Such problems include insufficient insulation, problem with the 2
(kg/cm G) (°C)
power source, malfunction of a compressor and a fan. The normal
outlet air temperature and pressure of the refrigeration cycle Cooling Mode 0.4 ~ 0.6 (4 ~ 6) 12 ~ 16
depends on various conditions, the standard values for them are Condition: Indoor fan speed = High
shown in the table to the right. Outdoor temperature = 35°C

Different in the intake

• Measuring the air
and outlet Normal
air temperatures temperature different
More than 8°C
(15 minutes after an
operation is started)

Less than 8°C at the cooling mode

Higher than specified

Value of electric current Dusty condenser • Measuring electric current
during operation preventing heat radiation during operation

Excessive amount
of refrigerant

Lower than specified

Cooling
Gas side Mode High
Inefficient compressor • Measuring gas side
pressure pressure
Low
Insufficient refrigerant

Low Clogged strainer or

capillary cube

51
15.1.1 Relationship between the condition of the air conditioner and pressure and
electric current

Cooling Mode
Condition of the
air conditioner Low Pressure High Pressure Electric current during operation

Insufficient refrigerant
Ô Ô Ô
(gas leakage)
Clogged capillary tube or
Ô Ô Ô
strainer

Short circuit in the indoor unit Ô Ô Ô

Heat radiation deficiency

Ò Ò Ò
of the outdoor unit

Inefficient compression Ò Ô Ô

• Carry out the measurement of pressure, electric current, and temperature fifteen minutes after an operation is started.

15.1.2 Diagnosis methods of a malfunction of a compressor

Nature of fault Symptom

• Electric current during operation becomes approximately 20% lower than the normal value.

Insufficient compressing of a compressor • The discharge tube of the compressor becomes abnormally hot (normally 70°C to 90°C).

• The different between high pressure and low pressure becomes almost zero.

• Electric current reaches a high level abnormally, and the value exceeds the limit of an
ammeter. In some cases, a breaker turns off.
Locked compressor
• The compressor has a humming sound.

52
16. Disassembly and Assembly Instructions
WARNING

High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.

16.1 CS-PC9/12KKQ
16.1.1 Indoor Electronic Controllers and Control Board Removal Procedures

16.1.1.1 To remove Front Grille

16.1.1.2 To remove Power Electronic Controller

53
16.1.1.3 To remove Discharge Grille

54
16.1.1.4 To remove Control Board

16.1.1.5 To remove Cross Flow Fan and Indoor Fan Motor

55
56
 WARNING

High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.

16.2 CS-PC18/24KKQ CS-PC18/24KKQ-6

16.2.1 Indoor Electronic Controllers and Control Board Removal Procedures

16.2.1.1 To remove Front Grille

16.2.1.2 To remove Power Electronic Controller

57
16.2.1.3 To remove Discharge Grille

58
16.2.1.4 To remove Control Board

16.2.1.5 To remove Cross Flow Fan and Indoor Fan Motor

59
60
17. Technical Data
17.1 Thermostat Characteristics
Cooling

Soft Dry

61
17.2 Operation Characteristics
17.2.1 CS-PC9KKQ CU-PC9KKQ
• Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Piping length: 7.5 m

230V
4.30
4.15
4.00
Current
(A)

3.85
3.70
3.55
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

0.550
Piping Pressure (MPa)

0.540
Gas Side

0.530
0.520
0.510
0.500
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

2.90
2.80
Capacity (kW)

2.70
Cooling

2.60
2.50
2.40
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

15.6
Temperature (ºC)

15.4
Outlet Air

15.2
15.0
14.8
14.6
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

62
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Outdoor temperature: 35/24°C

230V
4.10
4.06
4.02
Current
(A)

3.98
3.94
3.90
3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0
Piping Length (m)

0.560
Piping Pressure (MPa)

0.550
Gas Side

0.540
0.530
0.520
0.510
3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0
Piping Length (m)

2.80
2.75
Capacity (kW)

2.70
Cooling

2.65
2.60
2.55
3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0
Piping Length (m)

15.4
Temperature (ºC)

15.3
Outlet Air

15.2
15.1
15.0
14.9
3.0 3.5 4.0 4.5 5.0 5.5 6.0 6.5 7.0 7.5 8.0 8.5 9.0 9.5 10.0
Piping Length (m)

63
17.2.2 CS-PC12KKQ CU-PC12KKQ
• Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Piping length: 7.5 m

230V
5.90
5.70
5.50
Current
(A)

5.30
5.10
4.90
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

0.510
Piping Pressure (MPa)

0.500
Gas Side

0.490
0.480
0.470
0.460
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

4.20
4.00
Capacity (kW)

3.80
Cooling

3.60
3.40
3.20
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

15.0
Temperature (ºC)

14.6
Outlet Air

14.2
13.8
13.4
13.0
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

64
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Outdoor temperature: 35/24°C

230V
5.65
5.60
5.55
Current

5.50
(A)

5.45
5.40
5.35
5.30
3 4 5 6 7 8 9 10 11 12 13 14 15
Piping Length (m)

0.530
Piping Pressure (MPa)

0.520
0.510
Gas Side

0.500
0.490
0.480
0.470
0.460
3 4 5 6 7 8 9 10 11 12 13 14 15
Piping Length (m)

3.65
3.60
Capacity (kW)

3.55
Cooling

3.50
3.45
3.40
3.35
3.30
3 4 5 6 7 8 9 10 11 12 13 14 15
Piping Length (m)

14.3
14.2
Temperature (ºC)

14.1
Outlet Air

14.0
13.9
13.8
13.7
13.6
3 4 5 6 7 8 9 10 11 12 13 14 15
Piping Length (m)

65
17.2.3 CS-PC18KKQ CU-PC18KKQ
• Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Piping length: 5 m

220V
230V
9.80
9.50
9.20
Current

8.90
(A)

8.60
8.30
8.00
7.70
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

0.500
Piping Pressure (MPa)

0.490
Gas Side

0.480
(220V and 230V)
0.470
0.460
0.450
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

6.30
6.00
Capacity (kW)

5.70
Cooling

5.40 (220V and 230V)

5.10
4.80
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

15.80
15.60
Temperature (ºC)

15.40
Outlet Air

15.20
15.00 (220V and 230V)
14.80
14.60
14.40
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

66
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Outdoor temperature: 35/24°C

220V
230V
9.05
8.90
8.75
8.60
Current

8.45
(A)

8.30
8.15
8.00
7.85
7.70
3 5 7 9 11 13 15 17 19 21 23 25

Piping Length (m)

Piping Pressure (MPa)

0.490
0.480
0.470
Gas Side

0.460 (220V and 230V)

0.450
0.440
0.430
0.420
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

5.30
5.20
Capacity (kW)

5.10 (220V and 230V)

Cooling

5.00
4.90
4.80
4.70
4.60
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

16.0
15.8
Temperature (ºC)

15.6
Outlet Air

15.4
15.2 (220V and 230V)
15.0
14.8
14.6
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

67
17.2.4 CS-PC18KKQ-6 CU-PC18KKQ-6
• Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Piping length: 5 m

220V
10.50
10.00
9.50
Current
(A)

9.00
8.50
8.00
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

0.520
Piping Pressure (MPa)

0.510
Gas Side

0.500
0.490
0.480
0.470
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

5.80
5.60
Capacity (kW)

5.40
Cooling

5.20
5.00
4.80
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

15.8
15.6
Temperature (ºC)

15.4
Outlet Air

15.2
15.0
14.8
14.6
14.4
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

68
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Outdoor temperature: 35/24°C

220V
8.80
8.70
8.60
8.50
Current

8.40
(A)

8.30
8.20
8.10
8.00
3 5 7 9 11 13 15 17 19 21 23 25

Piping Length (m)

Piping Pressure (MPa)

0.500
0.490
0.480
Gas Side

0.470
0.460
0.450
0.440
0.430
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

5.30
5.20
Capacity (kW)

5.10
Cooling

5.00
4.90
4.80
4.70
4.60
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

16.0
15.8
Temperature (ºC)

15.6
Outlet Air

15.4
15.2
15.0
14.8
14.6
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

69
17.2.5 CS-PC24KKQ CU-PC24KKQ
• Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Piping length: 5 m

220V
230V
14.50
14.00
13.50
Current

13.00
(A)

12.50
12.00
11.50
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

0.410
Piping Pressure (MPa)

0.400
0.390
Gas Side

0.380 (220V and 230V)

0.370
0.360
0.350
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

7.60
7.40
Capacity (kW)

7.20
Cooling

7.00 (220V and 230V)

6.80
6.60
6.40
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

13.6
13.4
Temperature (ºC)

13.2
Outlet Air

13.0
(220V and 230V)
12.8
12.6
12.4
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

70
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Outdoor temperature: 35/24°C

220V
230V
13.30
13.10
12.90
Current

12.70
(A)

12.50
12.30
12.10
11.90
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)
Piping Pressure (MPa)

0.390
0.380
0.370
Gas Side

0.360
(220V and 230V)
0.350
0.340
0.330
0.320
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

7.40
7.20
Capacity (kW)

7.00
Cooling

6.80 (220V and 230V)

6.60
6.40
6.20
6.00
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

13.8
13.6
Temperature (ºC)

13.4
Outlet Air

13.2
(220V and 230V)
13.0
12.8
12.6
12.4
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

71
17.2.6 CS-PC24KKQ-6 CU-PC24KKQ-6
• Cooling Characteristic
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Piping length: 5 m

220V
14.50
14.00
13.50
Current

13.00
(A)

12.50
12.00
11.50
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

0.410
Piping Pressure (MPa)

0.400
Gas Side

0.390
0.380
0.370
0.360
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

7.60
7.40
Capacity (kW)

7.20
Cooling

7.00
6.80
6.60
6.40
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

13.6
13.4
Temperature (ºC)

13.2
Outlet Air

13.0
12.8
12.6
12.4
30 31 32 33 34 35 36 37 38 39 40 41
Outside Air Temperature (ºC)

72
[Condition] Room temperature: 27°C (DBT), 19°C (WBT)
Cooling operation: At High fan
Outdoor temperature: 35/24°C

220V
13.30
13.10
12.90
Current

12.70
(A)

12.50
12.30
12.10
11.90
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)
Piping Pressure (MPa)

0.400
0.390
0.380
Gas Side

0.370
0.360
0.350
0.340
0.330
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

7.40
7.20
Capacity (kW)

7.00
Cooling

6.80
6.60
6.40
6.20
6.00
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

13.8
13.6
Temperature (ºC)

13.4
Outlet Air

13.2
13.0
12.8
12.6
12.4
3 5 7 9 11 13 15 17 19 21 23 25
Piping Length (m)

73
18. Exploded View and Replacement Parts List
18.1 Indoor Unit
18.1.1 CS-PC9KKQ CS-PC12KKQ

Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.

74
REF. CS-PC9KKQ CS-PC12KKQ
PART NAME & DESCRIPTION QTY REMARK
NO. Philippines
1 CHASSY COMPLETE 1 CWD50C1653 ←
2 FAN MOTOR 1 CWA921420 ← O
3 CROSS FLOW FAN COMPLETE 1 CWH02C1076 ←
4 SCREW - CROSS FLOW FAN 1 CWH551146 ←
5 BEARING ASS’Y 1 CWH64K007 ←
6 EVAPORATOR 1 CWB30C2968 CWB30C2970
7 FLARE NUT (LIQUID) 1 CWT251026 ←
8 FLARE NUT (GAS) 1 CWT251061 CWT251062
9 HOLDER SENSOR 1 CWH32143 ←
10 BACK COVER CHASSIS 1 CWD933019 ←
11 CONTROL BOARD CASING 1 CWH102370 ←
12 TERMINAL BOARD COMPLETE 1 CWA28C2356 ←
13 ELECTRONIC CONTROLLER - MAIN 1 CWA73C4175 CWA73C4176 O
14 ELECTRONIC CONTROLLER - POWER 1 CWA745849 ← O
15 ELECTRONIC CONTROLLER-RECEIVER 1 CWA745300 ← O
16 P.S. CORD CO. 1 CWA20C2875 ←
17 INDICATOR HOLDER 1 CWD933021 ←
18 SENSOR COMPLETE 1 CWA50C2401 ←
19 DISCHARGE GRILLE COMPLETE 1 CWE20C3084 ←
20 VERTICAL VANE 11 CWE241287 ←
21 CONNECTING BAR 1 CWE261152 ←
22 CONNECTING BAR 1 CWE261153 ←
23 CONNECTING BAR 1 CWE261154 ←
24 CONNECTING BAR 1 CWE261155 ←
25 AIR SWING MOTOR 1 CWA981240 ← O
26 HORIZONTAL VANE 1 CWE24C1268 ←
27 CAP - DRAIN TRAY 1 CWH521096 ←
28 CONTROL BOARD TOP COVER 1 CWH131350 ←
29 CONTROL BOARD FRONT COVER 1 CWH13C1183 ←
30 REMOTE CONTROL COMPLETE 1 CWA75C3623 ← O
31 FRONT GRILLE COMPLETE 1 CWE11C4250 ← O
32 INTAKE GRILLE COMPLETE 1 CWE22C1508 ← O
33 GRILLE DOOR 1 CWE14C1029 ←
34 E-ION FILTER 2 CWD001279 ←
35 SCREW - FRONT GRILLE 2 XTT4+16CFJ ←
36 CAP - FRONT GRILLE 2 CWH521194 ←
37 DRAIN HOSE 1 CWH851174 ←
38 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C1705 ←
39 INSTALLATION PLATE 1 CWH361097 ←
40 FULCRUM 1 CWH621102 ←
41 OPERATING INSTRUCTION 1 CWF567134 ←
42 INSTALLATION INSTRUCTION 1 CWF613792 ←
43 INSTALLATION INSTRUCTION 1 CWF613686 ←

(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
• “O” marked parts are recommended to be kept in stock.

75
18.1.2 CS-PC18KKQ CS-PC24KKQ CS-PC18KKH-6 CS-PC24KKQ-6

Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.

76
REF. CS-PC18KKQ CS-PC24KKQ
PART NAME & DESCRIPTION QTY REMARK
NO. Philippines
1 CHASSY COMPLETE 1 CWD50C1654 ←
2 FAN MOTOR 1 L6CBYYYL0037 L6CBYYYL0038 O
3 CROSS FLOW FAN COMPLETE 1 CWH02C1077 ←
4 SCREW - CROSS FLOW FAN 1 CWH551146 ←
5 BEARING ASS’Y 1 CWH64K007 ←
7 EVAPORATOR 1 CWB30C2550 CWB30C2773
8 FLARE NUT (LIQUID) 1 CWT251026 ←
9 FLARE NUT (GAS) 1 CWT251062 CWT251036
10 HOLDER SENSOR 1 CWH32143 ←
12 BACK COVER CHASSIS 1 CWD933031 ←
13 CONTROL BOARD CASING 1 CWH102370 ←
14 TERMINAL BOARD COMPLETE 1 CWA28C2393 CWA28C2394
15 POWER SUPPLY CORD-COMPLETE 1 CWA20C2851 CWA20C2853
16 ELECTRONIC CONTROLLER - MAIN 1 CWA73C4212 CWA73C4208 O
17 ELECTRONIC CONTROLLER - POWER 1 CWA745303 ← O
19 ELECTRONIC CONTROLLER-INDICATOR 1 CWA745300 ← O
24 INDICATOR HOLDER 1 CWD933021 ←
26 SENSOR COMPLETE 1 CWA50C2401 ←
33 DISCHARGE GRILLE COMPLETE 1 CWE20C3008 ←
34 VERTICAL VANE 15 CWE241289 ←
35 CONNECTING BAR 1 CWE261156 ←
36 CONNECTING BAR 1 CWE261158 ←
37 CONNECTING BAR 1 CWE261167 ←
38 CONNECTING BAR 1 CWE261159 ←
39 CONNECTING BAR 1 CWE261160 ←
40 A.S.MOTOR,DC SINGLE 12V 300OHM 1 CWA981241 ← O
43 HORIZONTAL VANE 1 CWE24C1295 ←
44 CAP - DRAIN TRAY 1 CWH521096 ←
45 CONTROL BOARD TOP COVER 1 CWH131350 ←
46 CONTROL BOARD FRONT COVER 1 CWH13C1183 ←
47 REMOTE CONTROL COMPLETE 1 CWA75C3623 ← O
48 FRONT GRILLE COMPLETE 1 CWE11C4261 ← O
49 INTAKE GRILLE COMPLETE 1 CWE22C1512 ← O
50 GRILLE DOOR 1 CWE14C1029 ←
51 E-ION FILTER 2 CWD001283 ←
52 SCREW - FRONT GRILLE 4 XTT4+16CFJ ←
53 CAP - FRONT GRILLE 3 CWH521194 ←
54 DRAIN HOSE 1 CWH851174 ←
55 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C1705 ←
56 INSTALLATION PLATE 1 CWH361098 ←
57 FULCRUM 2 CWH621103 ←
60 OPERATING INSTRUCTION 1 CWF567134 ←
61 INSTALLATION INSTRUCTION 1 CWF613792 ←
62 INSTALLATION INSTRUCTION 1 CWF613686 ←

(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.

77
REF. CS-PC18KKQ-6 CS-PC24KKQ-6
PART NAME & DESCRIPTION QTY REMARK
NO. Mexico
1 CHASSY COMPLETE 1 CWD50C1654 ←
2 FAN MOTOR 1 L6CBYYYL0037 L6CBYYYL0039 O
3 CROSS FLOW FAN COMPLETE 1 CWH02C1077 ←
4 SCREW - CROSS FLOW FAN 1 CWH551146 ←
5 BEARING ASS’Y 1 CWH64K007 ←
7 EVAPORATOR 1 CWB30C2550 CWB30C2773
8 FLARE NUT (LIQUID) 1 CWT251026 ←
9 FLARE NUT (GAS) 1 CWT251062 CWT251036
10 HOLDER SENSOR 1 CWH32143 ←
12 BACK COVER CHASSIS 1 CWD933031 ←
13 CONTROL BOARD CASING 1 CWH102370 ←
14 TERMINAL BOARD COMPLETE 1 CWA28C2356 ←
15 POWER SUPPLY CORD-COMPLETE 1 CWA20C2851 CWA20C2853
16 ELECTRONIC CONTROLLER - MAIN 1 CWA73C4212 CWA73C4208 O
17 ELECTRONIC CONTROLLER - POWER 1 CWA745303 ← O
19 ELECTRONIC CONTROLLER-INDICATOR 1 CWA745300 ← O
24 INDICATOR HOLDER 1 CWD933021 ←
26 SENSOR COMPLETE 1 CWA50C2401 ←
33 DISCHARGE GRILLE COMPLETE 1 CWE20C3008 ←
34 VERTICAL VANE 15 CWE241289 ←
35 CONNECTING BAR 1 CWE261156 ←
36 CONNECTING BAR 1 CWE261158 ←
37 CONNECTING BAR 1 CWE261167 ←
38 CONNECTING BAR 1 CWE261159 ←
39 CONNECTING BAR 1 CWE261160 ←
40 A.S.MOTOR,DC SINGLE 12V 300OHM 1 CWA981241 ← O
43 HORIZONTAL VANE 1 CWE24C1295 ←
44 CAP - DRAIN TRAY 1 CWH521096 ←
45 CONTROL BOARD TOP COVER 1 CWH131350 ←
46 CONTROL BOARD FRONT COVER 1 CWH13C1183 ←
47 REMOTE CONTROL COMPLETE 1 CWA75C3623 ← O
48 FRONT GRILLE COMPLETE 1 CWE11C4720 ← O
49 INTAKE GRILLE COMPLETE 1 CWE22C1512 ← O
50 GRILLE DOOR 1 CWE14C1029 ←
51 AIR FILTER 2 CWD001283 ←
52 SCREW - FRONT GRILLE 4 XTT4+16CFJ ←
53 CAP - FRONT GRILLE 3 CWH521194 ←
54 DRAIN HOSE 1 CWH851174 ←
55 BAG COMPLETE - INSTALLATION SCREW 1 CWH82C1705 ←
56 INSTALLATION PLATE 1 CWH361098 ←
57 FULCRUM 2 CWH621103 ←
60 OPERATING INSTRUCTION 1 CWF567134 ←
61 INSTALLATION INSTRUCTION 1 CWF613792 ←
62 INSTALLATION INSTRUCTION 1 CWF613686 ←

(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.

78
18.2 Outdoor Unit
18.2.1 CU-PC9KKQ

Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.

79
REF. CU-PC9KKQ
PART NAME & DESCRIPTION QTY REMARK
NO. Philippines
1 CHASSY ASS’Y 1 CWD50K2107
2 SOUND PROOF MATERIAL 1 CWG302403
3 FAN MOTOR BRACKET 1 CWD541075
4 SCREW - FAN MOTOR BRACKET 2 CWH551217
5 FAN MOTOR 1 CWA951562 O
6 SCREW - FAN MOTOR MOUNT 3 CWH55406J
7 PROPELLER FAN ASS’Y 1 CWH03K1020
8 NUT - PROPELLER FAN 1 CWH56053J
9 COMPRESSOR (50HZ, 220/240V) 1 2R13C236BSC O
10 ANTI - VIBRATION BUSHING 3 CWH50077
11 NUT - COMPRESSOR MOUNT 3 CWH56000J
12 CONDENSER 1 CWB32C2798
13 CAPILLARY TUBE ASS’Y 1 CWB15K1271
14 STRAINER 1 CWB11025
15 HOLDER COUPLING 1 CWH351047
16 2-WAY VALVE (LIQUID) 1 CWB021217 O
17 3-WAY VALVE (GAS) 1 CWB011257 O
18 OVERLOAD PROTECTOR WITH WIRE 1 CWA67C5701
19 HOLDER - O.L.P. 1 CWH7041200
20 TERMINAL COVER 1 CWH171011
21 NUT - TERMINAL COVER 1 CWH7080300J
22 SOUND PROOF BOARD 1 CWH151074
23 TERMINAL BOARD ASS’Y 1 CWA28K1064J O
24 CAPACITOR - COM. 1 DS371156CPNA O
25 HOLDER CAPACITOR 1 CWH301038
26 CAPACITOR - F.M 1 DS441205NPQA O
27 CABINET SIDE PLATE 1 CWE041205A
28 CABINET SIDE PLATE COMPLETE 1 CWE04C1079
29 CABINET FRONT PLATE ASS’Y 1 CWE06K1048
30 CABINET TOP PLATE 1 CWE031041A
31 CONTROL BOARD COVER COMP 1 CWH13C1099

(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
• “O” marked parts are recommended to be kept in stock.

80
18.2.2 CU-PC12KKQ CU-PC18KKQ CU-PC18KKQ-6

Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.

81
REF. CU-PC12KKQ CU-PC18KKQ CU-PC18KKQ-6
PART NAME & DESCRIPTION QTY REMARK
NO. Philippines Mexico
1 CHASSY ASS’Y 1 CWD50K2071 CWD50K2088 ←
2 SOUND PROOF MATERIAL 1 CWG302409 CWG302256 ←
3 FAN MOTOR BRACKET 1 CWD541030 ← ←
4 SCREW - FAN MOTOR BRACKET 2 CWH551217 ← ←
5 FAN MOTOR 1 CWA951329J ← ← O
6 SCREW - FAN MOTOR MOUNT 3 CWH55406J ← ←
7 PROPELLER FAN ASS’Y 1 CWH03K1006 ← ←
8 NUT - PROPELLER FAN 1 CWH56053J ← ←
9 COMPRESSOR (50HZ, 220/240V) 1 2P19S236A1L 2KS252F5AB04 ← O
10 ANTI - VIBRATION BUSHING 3 CWH50077 CWH50055 ←
11 NUT - COMPRESSOR MOUNT 3 CWH56000J CWH561049 ←
12 CONDENSER 1 CWB32C2797 CWB32C2794 ←
13 CAPILLARY TUBE ASS’Y 1 CWB15K1273 CWB15K1103 ←
14 STRAINER 1 CWB11025 CWB11004 ←
15 HOLDER COUPLING 1 CWH351023 CWH351046 ←
16 2-WAY VALVE (LIQUID) 1 CWB021362 CWB021242 ← O
17 3-WAY VALVE (GAS) 1 CWB011482 CWB011233 ← O
18 OVERLOAD PROTECTOR WITH WIRE 1 CWA67C7548 CWA67C7977 ←
19 HOLDER - O.L.P. 1 CW7041200 - ←
20 TERMINAL COVER 1 CWH171011 ← ←
21 NUT - TERMINAL COVER 1 CWH7080300J ← ←
22 SOUND PROOF BOARD 1 CWH151023 ← ←
23 TERMINAL BOARD ASS’Y 1 CWA28K1064J ← ← O
24 CAPACITOR - COM. 1 CWA312076 CWA312078 ← O
25 HOLDER CAPACITOR 1 CWH30057 CWH30060 ←
26 CAPACITOR - F.M 1 DS441205NPQA ← ← O
27 CABINET SIDE PLATE 1 CWE041031A ← ←
28 CABINET SIDE PLATE COMPLETE 1 CWE04C1100 CWE04C1121 ←
29 CABINET FRONT PLATE ASS’Y 1 CWE06K1034 ← ←
30 CABINET TOP PLATE 1 CWE031014A ← ←
31 CONTROL BOARD COVER COMP 1 CWH13C1064 ← ←
34 HANDLE 1 - CWE161010 ←

(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.

82
18.2.3 CU-PC24KKQ CU-PC24KKQ-6

Note
The above exploded view is for the purpose of parts disassembly and replacement.
The non-numbered parts are not kept as standard service parts.

83
REF. CU-PC24KKQ CU-PC24KKQ-6
PART NAME & DESCRIPTION QTY REMARK
NO. Philippines Mexico
1 CHASSY ASS’Y 1 CWD50K2100 ←
3 FAN MOTOR BRACKET 1 CWD541065 ←
4 SCREW - FAN MOTOR BRACKET 2 CWH551217 ←
5 FAN MOTOR 1 CWA951399J ← O
6 SCREW - FAN MOTOR MOUNT 3 CWH55252J ←
7 PROPELLER FAN ASS’Y 1 CWH03K1017 ←
8 NUT - PROPELLER FAN 1 CWH561038J ←
9 COMPRESSOR 1 2J39S236A1A ← O
10 PACKING 3 CWB81043 ←
11 ANTI - VIBRATION BUSHING 3 CWH50055 ←
12 NUT - COMPRESSOR MOUNT 3 CWH561049 ←
13 CONDENSER 1 CWB32C2692 ←
14 CAPILLARY TUBE ASS’Y 1 CWB15K1282 ←
15 STRAINER 1 CWB11025 ←
16 HOLDER COUPLING 1 CWH351036 ←
17 2-WAY VALVE (LIQUID) 1 CWB021175 ← O
18 3-WAY VALVE (GAS) 1 CWB011484 ← O
21 TERMINAL COVER 1 CWH171012 ←
22 NUT - TERMINAL COVER 1 CWH7080300J ←
23 SOUND PROOF BOARD 1 CWH151051 ←
24 TERMINAL BOARD ASS’Y 1 CWA28K1064J ← O
26 CAPACITOR - COM. 1 CWA312088 ← O
27 HOLDER CAPACITOR 1 CWH30071 ←
28 CAPACITOR - F.M 1 DS441355NPQA ← O
29 CABINET SIDE PLATE 1 CWE041254A ←
30 CABINET SIDE PLATE COMPLETE 1 CWE04C1101 ←
31 CABINET FRONT PLATE ASS’Y 1 CWE06K1043 ←
32 CABINET TOP PLATE 1 CWE03K1009A ←
33 CONTROL BOARD COVER COMP 1 CWH131168 ←
35 HANDLE 1 CWE161010 ←
36 CONTROL BOARD COVER(RIGHT-TOP) 1 CWH131169A ←
37 HANDLE 2 CWE16000E ←
38 THERMOSTAT 1 CWA151061 ←
43 SOUND PROOF MATERIAL 1 CWG302407 ←

(Note)
• All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.

Printed in Malaysia
SSTK0912-00

84
