VOLKSWAGEN Golf IV1.

8 (AGN) 1997 - 2001 August 27, 2024

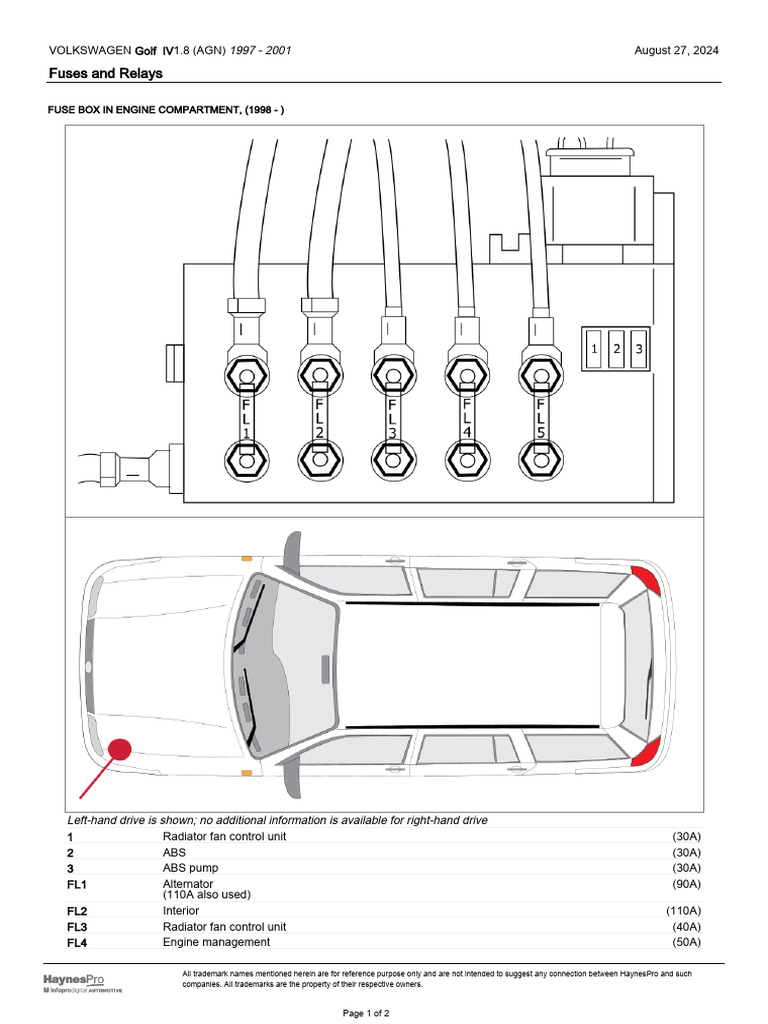

Fuses and Relays

FUSE BOX IN ENGINE COMPARTMENT, (1998 - )

Left-hand drive is shown; no additional information is available for right-hand drive


1 Radiator fan control unit (30A)
2 ABS (30A)
3 ABS pump (30A)
FL1 Alternator (90A)
(110A also used)
FL2 Interior (110A)
FL3 Radiator fan control unit (40A)
FL4 Engine management (50A)

All trademark names mentioned herein are for reference purpose only and are not intended to suggest any connection between HaynesPro and such
companies. All trademarks are the property of their respective owners.

Page 1 of 2
VOLKSWAGEN Golf IV1.8 (AGN) 1997 - 2001 August 27, 2024

Fuses and Relays

FL5 Coolant heater (50A)

All trademark names mentioned herein are for reference purpose only and are not intended to suggest any connection between HaynesPro and such
companies. All trademarks are the property of their respective owners.

Page 2 of 2
