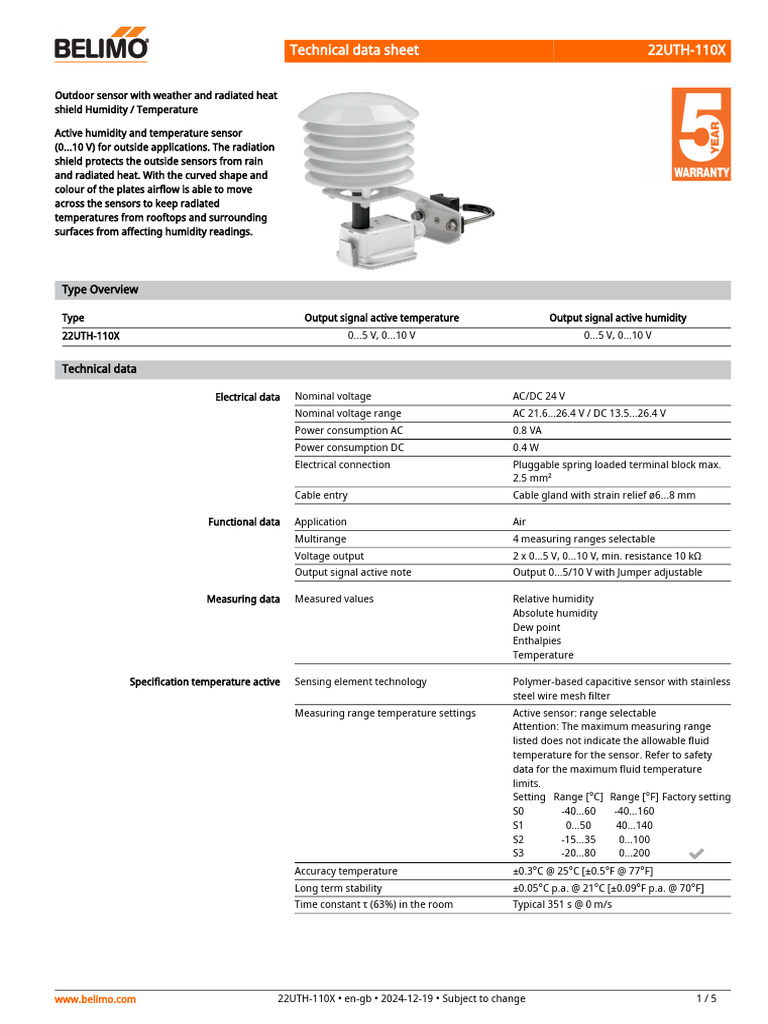

Technical data sheet 22UTH-110X
Outdoor sensor with weather and radiated heat
shield Humidity / Temperature
Active humidity and temperature sensor
(0...10 V) for outside applications. The radiation
shield protects the outside sensors from rain
and radiated heat. With the curved shape and
colour of the plates airflow is able to move
across the sensors to keep radiated
temperatures from rooftops and surrounding
surfaces from affecting humidity readings.
Type Overview
Type Output signal active temperature Output signal active humidity
22UTH-110X 0...5 V, 0...10 V 0...5 V, 0...10 V
Technical data
Electrical data Nominal voltage AC/DC 24 V
Nominal voltage range AC 21.6...26.4 V / DC 13.5...26.4 V
Power consumption AC 0.8 VA
Power consumption DC 0.4 W
Electrical connection Pluggable spring loaded terminal block max.
2.5 mm²
Cable entry Cable gland with strain relief ø6...8 mm
Functional data Application Air
Multirange 4 measuring ranges selectable
Voltage output 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
Output signal active note Output 0...5/10 V with Jumper adjustable
Measuring data Measured values Relative humidity
Absolute humidity
Dew point
Enthalpies
Temperature
Specification temperature active Sensing element technology Polymer-based capacitive sensor with stainless
steel wire mesh filter
Measuring range temperature settings Active sensor: range selectable
Attention: The maximum measuring range
listed does not indicate the allowable fluid
temperature for the sensor. Refer to safety
data for the maximum fluid temperature
limits.
Setting Range [°C] Range [°F] Factory setting
S0 -40...60 -40...160
S1 0...50 40...140
S2 -15...35 0...100
S3 -20...80 0...200
Accuracy temperature ±0.3°C @ 25°C [±0.5°F @ 77°F]
Long term stability ±0.05°C p.a. @ 21°C [±0.09°F p.a. @ 70°F]
Time constant τ (63%) in the room Typical 351 s @ 0 m/s
www.belimo.com 22UTH-110X • en-gb • 2024-12-19 • Subject to change 1/5
Technical data sheet 22UTH-110X
Technical data
Specification Humidity Sensing element technology Polymer-based capacitive sensor with stainless
steel wire mesh filter
Measuring range 0...100% RH non-condensing
Measuring range absolute humidity adjustable at the transducer:
0...50 g/m³ (default setting)
0...80 g/m³
Measuring range enthalpy 0...85 kJ/kg
Measuring range dew point adjustable at the transducer:
0...50°C [40...140°F] (default setting)
-20...80°C [0...200°F]
Accuracy ±2% between 0...80% RH @ 25°C
Long term stability ±0.3% RH p.a. @ 21°C @ 50% RH
Time constant τ (63%) in the room Typical 16 s @ 0 m/s
Safety data Protection class IEC/EN III, Safety Extra-Low Voltage (SELV)
Power source UL Class 2 Supply
Degree of protection IEC/EN IP65
Degree of protection NEMA/UL NEMA 4X
Housing UL Enclosure Type 4X
EU Conformity CE Marking
Certification IEC/EN IEC/EN 60730-1
Quality Standard ISO 9001
Type of action Type 1
Rated impulse voltage supply 0.8 kV
Pollution degree 3
Ambient humidity Short-term condensation permitted
Ambient temperature -35...50°C [-30...120°F]
Fluid humidity Short-term condensation permitted
Fluid temperature -35...50°C [-30...122°F]
Operating condition airflow max. 12 m/s
Materials Housing Cover: PC, white
Bottom: PC, white
Seal: NBR70, black
UV resistant
Cable gland PA6, white
Safety notes
This device has been designed for use in stationary heating, ventilation and air-conditioning
systems and must not be used outside the specified field of application. Unauthorised
modifications are prohibited. The product must not be used in relation with any equipment
that in case of a failure may threaten humans, animals or assets.
Ensure all power is disconnected before installing. Do not connect to live/operating
equipment.
Only authorised specialists may carry out installation. All applicable legal or institutional
installation regulations must be complied with during installation.
The device contains electrical and electronic components and must not be disposed of as
household refuse. All locally valid regulations and requirements must be observed.
www.belimo.com 22UTH-110X • en-gb • 2024-12-19 • Subject to change 2/5
Technical data sheet 22UTH-110X
Remarks
General remarks concerning sensors When using lengthy connection wires (depending on the cross section used) the measuring
result might be falsified due to a voltage drop at the common GND-wire (caused by the
voltage current and the line resistance). In this case, 2 GND-wires must be wired to the sensor
- one for supply voltage and one for the measuring current.
Sensing devices with a transducer should always be operated in the middle of the measuring
range to avoid deviations at the measuring end points. The ambient temperature of
transducer electronics should be kept constant. The transducers must be operated at a
constant supply voltage (±0.2 V). When switching the supply voltage on/off, onsite power
surges must be avoided.
Remark: Occurring draft leads to a better carrying-off of dissipative power at the sensor. Thus
temporally limited fluctuations might occur upon temperature measurement.
Build-up of self-heating by electrical Temperature sensors with electronic components always have a dissipative power which
dissipative power affects the temperature measurement of the ambient air. The dissipation in active
temperature sensors shows a linear increase with rising operating voltage. The dissipative
power should be taken into account when measuring temperature.
In case of a fixed operating voltage (±0.2 V), this is normally done by adding or reducing a
constant offset value. As Belimo transducers work with a variable operating voltage, for
reasons of production engineering only one operating voltage can be taken into
consideration. Transducers 0...10 V / 4...20 mA have a standard setting at an operating
voltage of DC 24 V. This means that at this voltage, the expected measuring error of the
output signal will be the least. For other operating voltages, the offset error will be increased
by a changing power loss of the sensor electronics.
If a readjustment directly at the active sensor should be necessary during later operation, this
can be done with the following adjustment methods.
- For sensors with NFC or dongle with the corresponding Belimo app
- For sensors with a trimming potentiometer on the sensor board
- For bus sensors via bus interface with a corresponding software variable
Application notice for humidity sensors The humidity sensor is extremely sensitive. Touching the sensor element or exposing it to
aggressive substances like chlorine, ozone, ammonia, hydrogen peroxide or ethanol (i.e. as a
cleaning agent) may affect the measurement accuracy.
Long term operation outside the recommended conditions (5…60°C and 20…80% RH) can
result in a temporary offset. After returning into the recommended range, this effect
disappears.
Parts included
Dowels
Screws
Accessories
Optional accessories Description Type
Replacement filter sensor probe tip, wire mesh, Stainless steel A-22D-A06
www.belimo.com 22UTH-110X • en-gb • 2024-12-19 • Subject to change 3/5
Technical data sheet 22UTH-110X
Wiring diagram
① Status LED
RH Relative humidity
absH Absolute humidity
EntH Enthalpy
TPkt/Dew Dew point
(Measured value
available on output AOU1)
The following measuring ranges can be adjusted through the jumper settings:
Setting Range [°C] Range [°F] Factory setting
S0 -40...60 -40...160
S1 0...50 40...140
S2 -15...35 0...100
S3 -20...80 0...200
www.belimo.com 22UTH-110X • en-gb • 2024-12-19 • Subject to change 4/5
Technical data sheet 22UTH-110X
Dimensions
Type Weight
22UTH-110X 0.54 kg
Further documentation
• Installation instructions
