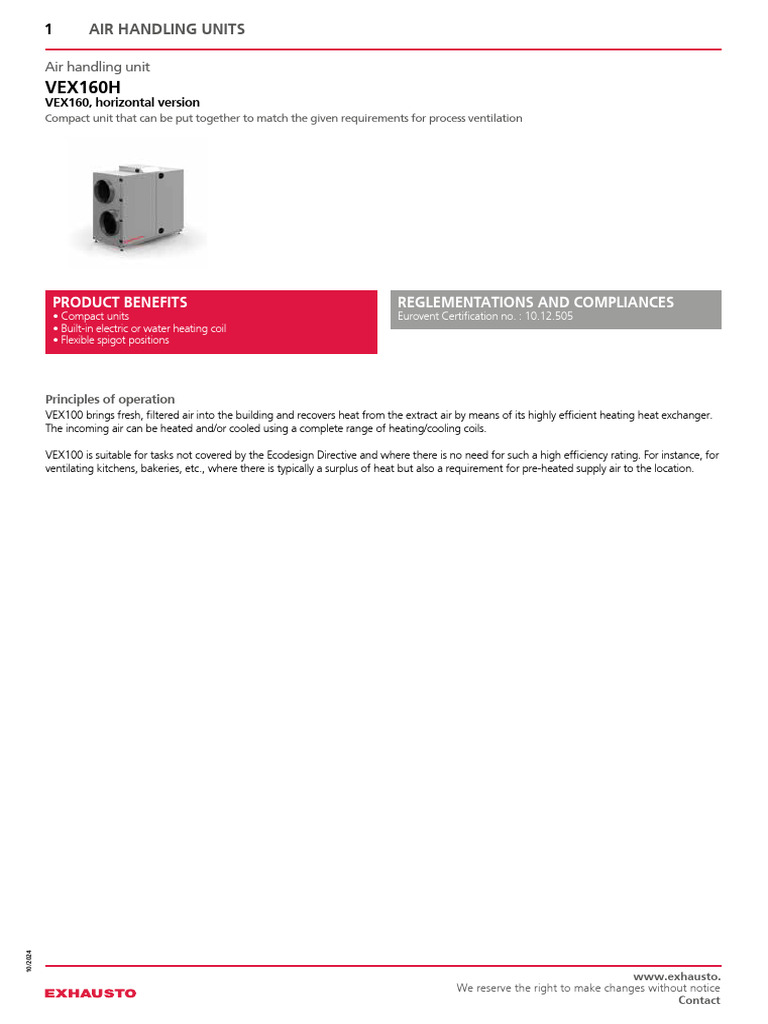

1 AIR HANDLING UNITS
Air handling unit
VEX160H
VEX160, horizontal version
Compact unit that can be put together to match the given requirements for process ventilation
PRODUCT BENEFITS REGLEMENTATIONS AND COMPLIANCES
• Compact units Eurovent Certification no.: 10.12.505
• Built-in electric or water heating coil
• Flexible spigot positions
Principles of operation
VEX100 brings fresh, filtered air into the building and recovers heat from the extract air by means of its highly efficient heating heat exchanger.
The incoming air can be heated and/or cooled using a complete range of heating/cooling coils.
VEX100 is suitable for tasks not covered by the Ecodesign Directive and where there is no need for such a high efficiency rating. For instance, for
ventilating kitchens, bakeries, etc., where there is typically a surplus of heat but also a requirement for pre-heated supply air to the location.
10/2024
www.exhausto.
We reserve the right to make changes without notice
Contact
2 AIR HANDLING UNITS
Air handling unit
VEX160H
VEX160, horizontal version
Product description
VEX100 range
VEX140, 150 and 160 can be ordered in either a Horizontal or Vertical version, whereas VEX170 can only be ordered in Horizontal.
This is a very flexible range of air handling units, which can be ordered as LEFT or RIGHT versions and with spigot locations in the side, top or
bottom.
In principle, EXHAUSTO VEX units are designed for use in comfort ventilation - i.e. under ordinary operating conditions.
Accessories
Désignations Variants
VEX160OD VEX160OD
Closing damper LS Ø500 24V LS50024
SIPHONUP
SR1K1 SIPHONUP
SR1K3
Syphon heating electric heating wire, 2 metres SIPHONHE02
Closing damper LS Ø500 24V for outdoor LS50024OD
Closing damper with spring-return Ø500 24V LSR50024
Closing damper with spring return, Ø500 24V for outdoor LSR50024OD
Base for VEX160H and VEX160CFH MSV160H
Base for VEX160V MSV160V
Motion sensor for override at comfort level (MIO) PIRB-AS
Motion sensor for override at comfort level (Modbus) MIOPIR
HW050X08002U0UL MIOTSROOM
Temperature sensor for duct incl. modbus communications module MIOTSDUCT
CO2 sensor – room (MIO) MIOCO2ROOM
CO2 sensor duct (MIO) MIOCO2DUCT
RH sensor, room (MIO RH-ROOM) MIORHROOM
Touch panel 3.5 MHI2-350-TOUCH
Pressure sensor for constant pressure regulation MPTDUCT
CO2 room sensor analogue 0–10 V (can be reprogrammed) CO2ROOM
CO2 room sensor analogue 0–10 V RCO2
HW050X08002U0UL RCO21000
CO2 duct sensor analogue 0–10 V (reprogrammable) CO2DUCT
CO2 duct sensor analogue 0–10 V KCO2
HW050X08002U0UL KCO21000
Air quality sensor - excl. MIO RLQ
MIO2 module MIO2-MODUL
Motion sensor - digital - excl. MIO PIR
RH sensor for room - analogue 0-10 V (0-100 % RH) RFF
Syphon water trap, overpressure SIPHONOP
Condensation drain for VEX100CF V100CFCONTUBE
Manual override to comfort mode excl. MIO - incl. cable TIMERBUTTON3
Filters
Désignations Variants
Panel filter for VEX160/-CF – ePM1 55% FP1602F7
Panel filter for VEX160/-CF – Coarse 85% FP1602M5
General data
Motor class in accordance with IEC TS 60034-30-2 IE5 (Ultra Premium Efficiency)
Voltage input 1 x 230 V
Variable via motor control
Regulation
(MC)
Control signal with control system Modbus
Control signal with third party control system 0-10 V DC
www.exhausto.
10/2024
We reserve the right to make changes without notice
Contact
3 AIR HANDLING UNITS
Air handling unit
VEX160H
VEX160, horizontal version
Fan data
Max. Total efficiency (A-D) (%) 57,1
Efficiency level requirements 62N (2015)
ECO efficiency level during optimal operating
67,2N
point
Overload protection Built-in
Dimensional data
A (mm) 1820
B (mm) 1495
C (mm) 940
Ø connection (fresh air or exhaust) (mm) 500
Ø connection (discharge or air supply) (mm) 500
> with cross-flow heat
exchanger type A: 360 kg >
Weight (kg)
with standard cross-flow heat
exchanger: 355 kg
202 kg (excl. doors, heat
Weight for transport
exchanger and fan sections)
2,2,A 1,2,A 1,2,B 2,1,B
2,2,B 1,2,B 2,1,A
1,2,A
B
A
2,2,A
1,1,A
1,1,B 2,1,B
RD13418-01
RD13419-01
2,1,A 2,2,B
C B
A
Dimensional drawings for VEX100H = horizontal version and VEX100V– vertical version respectively – both shown with round ducts.
Airflow data
Minimum airflow 600
Max. airflow (m³/h) 4480
Débit minimum (l/s) 167
Débit max (l/s) 1245
Electrical datas
Frequency (Hz) 50
Max. power of electrical coil 1 (kW) 14,4
Max. electrical output of unit (kW) 4,8
Voltage (V) 3x400
Max. power of electrical coil 2 21,6
Maximum current - unit (A) 15,5
Maximum current - first coil (A) 36,5
Maximum current - second coil (A) 46,7
Power consumption (kW) 2,359
Max current of zero (A) 23,5
www.exhausto.
10/2024
We reserve the right to make changes without notice
Contact
4 AIR HANDLING UNITS
Air handling unit
VEX160H
VEX160, horizontal version
Installation
AHU N°: 10.12.505
Range: VEX100 / VEX200 / VEX310-370
MEKANISK YDEEVNE: In accordance with ds/en 1886 The cabinets are made of Aluzinc AZ185 class C4 The motor sections are mounted in vibration dampers,
and certified by Eurovent according to EN/ISO 12 944-2 and insulated with 50 which means less noise and vibration in the ducts,
In accordance with ds/en 1886 and certified by mm mineral wool. This results in a low noise level to and there is no need to install flexible connections
Eurovent: the surroundings/setup room. between the unit and the duct system.
> Strength of unit housing: D1 (M) The panel construction minimizes the formation of The motor sections are retractable for easier service.
> Tightness at negative pressure of -400 Pa: L1 (M) thermal bridges in the unit. The motors are EC type with very high efficiency,
> Tightness at positive pressure of +700 Pa: L1 (M) meeting the requirements of the EcoDesign directive.
> Filter bypass leakage: F9 at negative and positive
pressure
> Thermal transmittance: T2 (M)
> Thermal bridging factor: TB3
Filter control for Filter control for
outdoor air (PDS2) extraction (PDS1)
Cable incl. plug
for extra
DISPLAY panel Measurement
during service socket for airflow
procedures measurement
and regulation:
Supply
Extraction
LON-terminals
EON-terminals
Other terminals
Alarm
The aggregate is equipped with EXHAUSTO’s The easily accessible connection box with built-in The filter panels are easy to replace and can be
EXstream impeller, one of the market’s leading supply isolator and circuit breakers ensures easy access ordered as filter class Coarse 85% (M5) or ePM1 55%
impellers in terms of low energy consumption and low for connection and adjustment. (F7) according to ISO 16890.
noise level.
VEX100-serien leveres med integreret eftervarmeflade, VEX140 - VEX160:
enten til vand eller el Montagesokkel med fødder, der kan justeres i højden
- 130 - 160 mm.
Montagesoklen er standard for VEX170.
www.exhausto.
10/2024
We reserve the right to make changes without notice
Contact
5 AIR HANDLING UNITS
Air handling unit
VEX160H
VEX160, horizontal version
RD11418-01
VEX100 IS AVAILABLE AS A SPLIT VERSION.
With some projects, limited space means that internal
transport of the air handling unit is difficult or
impossible. This is why the VEX100 is available as a
split version. It means that the air handling unit can
be assembled and tested at the factory as normal
– just without sealant. The air handling unit can
therefore be easily taken apart at the installation site,
transported as single sections, assembled, sealed and
commissioned.
The table below shows the dimensions of the largest
section (crossflow heat exchanger) and largest cabinet
section, so that it can easily be determined whether
there is sufficient space to allow internal transport.
Cross-flow heat exchanger in aluminium with The combination of modern EC motors and the An energy label that states the energy class of the
moderate pressure drop and high temperature EXHAUSTO motor controller delivers extremely low air handling unit in relation to defined operating
efficiency. The crossflow heat exchanger ensures full energy consumption and with the EXstream impeller, conditions is available via our product calculation
separation of airways, preventing transfer of odours or a high output is achieved. programs.
pollutants to the supply air.
The crossflow heat exchanger makes the unit suitable
for process ventilation, though not in a corrosive
environment.
