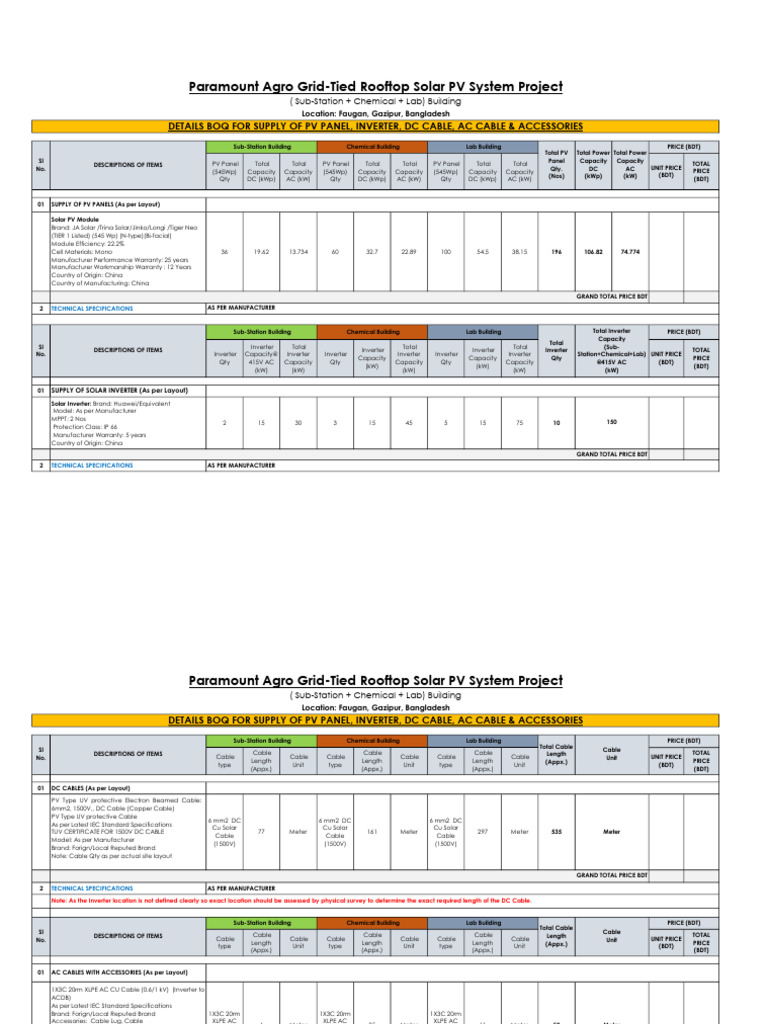

Paramount Agro Grid-Tied Rooftop Solar PV System Project
( Sub-Station + Chemical + Lab) Building
Location: Faugan, Gazipur, Bangladesh
DETAILS BOQ FOR SUPPLY OF PV PANEL, INVERTER, DC CABLE, AC CABLE & ACCESSORIES
Sub-Station Building Chemical Building Lab Building PRICE (BDT)
Total PV Total Power Total Power
Sl PV Panel Total Total PV Panel Total Total PV Panel Total Total Panel Capacity Capacity TOTAL
DESCRIPTIONS OF ITEMS UNIT PRICE
No. (545Wp) Capacity Capacity (545Wp) Capacity Capacity (545Wp) Capacity Capacity Qty. DC AC PRICE
(Nos) (kWp) (kW) (BDT)
Qty DC (kWp) AC (kW) Qty DC (kWp) AC (kW) Qty DC (kWp) AC (kW) (BDT)
01 SUPPLY OF PV PANELS (As per Layout)
Solar PV Module
Brand: JA Solar /Trina Solar/Jinko/Longi /Tiger Neo
(TIER 1 Listed) (545 Wp) (N-type)(Bi-facial)
Module Efficiency: 22.2%
Cell Materials: Mono 36 19.62 13.734 60 32.7 22.89 100 54.5 38.15 196 106.82 74.774
Manufacturer Performance Warranty: 25 years
Manufacturer Workmanship Warranty : 12 Years
Country of Origin: China
Country of Manufacturing: China
GRAND TOTAL PRICE BDT
2 TECHNICAL SPECIFICATIONS AS PER MANUFACTURER
Sub-Station Building Chemical Building Lab Building Total Inverter PRICE (BDT)
Capacity
Total
Sl Inverter Total Total Total (Sub-
DESCRIPTIONS OF ITEMS Inverter Inverter Inverter TOTAL
No. Inverter Capacity@ Inverter Inverter Inverter Inverter Inverter Station+Chemical+Lab) UNIT PRICE
Capacity Capacity Qty PRICE
Qty 415V AC Capacity Qty Capacity Qty Capacity @415V AC (BDT)
(kW) (kW) (BDT)
(kW) (kW) (kW) (kW) (kW)
01 SUPPLY OF SOLAR INVERTER (As per Layout)
Solar Inverter: Brand: Huawei/Equivalent
Model: As per Manufacturer
MPPT: 2 Nos
2 15 30 3 15 45 5 15 75 10 150
Protection Class: IP 66
Manufacturer Warranty: 5 years
Country of Origin: China
GRAND TOTAL PRICE BDT
2 TECHNICAL SPECIFICATIONS AS PER MANUFACTURER
Paramount Agro Grid-Tied Rooftop Solar PV System Project
( Sub-Station + Chemical + Lab) Building
Location: Faugan, Gazipur, Bangladesh
DETAILS BOQ FOR SUPPLY OF PV PANEL, INVERTER, DC CABLE, AC CABLE & ACCESSORIES
Sub-Station Building Chemical Building Lab Building PRICE (BDT)
Total Cable
Sl Cable Cable Cable Cable TOTAL
DESCRIPTIONS OF ITEMS Cable Cable Cable Cable Cable Cable Length UNIT PRICE
No. Length Length Length Unit PRICE
type Unit type Unit type Unit (Appx.) (BDT)
(Appx.) (Appx.) (Appx.) (BDT)
01 DC CABLES (As per Layout)
PV Type UV protective Electron Beamed Cable:
6mm2, 1500V,, DC Cable (Copper Cable)
PV Type UV protective Cable
6 mm2 DC 6 mm2 DC 6 mm2 DC
As per Latest IEC Standard Specifications
Cu Solar Cu Solar Cu Solar
TUV CERTIFICATE FOR 1500V DC CABLE 77 Meter 161 Meter 297 Meter 535 Meter
Cable Cable Cable
Model: As per Manufacturer
(1500V) (1500V) (1500V)
Brand: Forign/Local Reputed Brand
Note: Cable Qty as per actual site layout
GRAND TOTAL PRICE BDT
2 TECHNICAL SPECIFICATIONS AS PER MANUFACTURER
Note: As the Inverter location is not defined clearly so exact location should be assessed by physical survey to determine the exact required length of the DC Cable.
Sub-Station Building Chemical Building Lab Building PRICE (BDT)
Total Cable
Sl Cable Cable Cable Cable TOTAL
DESCRIPTIONS OF ITEMS Cable Cable Cable Cable Cable Cable Length UNIT PRICE
No. Length Length Length Unit PRICE
type Unit type Unit type Unit (Appx.) (BDT)
(Appx.) (Appx.) (Appx.) (BDT)
01 AC CABLES WITH ACCESSORIES (As per Layout)
1X3C 20rm XLPE AC CU Cable (0.6/1 kV) (Inverter to
ACDB)
As per Latest IEC Standard Specifications
Brand: Forign/Local Reputed Brand 1X3C 20rm 1X3C 20rm 1X3C 20rm
Accessories: Cable Lug, Cable XLPE AC XLPE AC XLPE AC
6 Meter 35 Meter 11 Meter 52 Meter
Shoe, PVC Pipe etc. and Connectors, CU Cable CU Cable CU Cable
Country of Origin: (0.6/1 kV) (0.6/1 kV) (0.6/1 kV)
** For AC Cable Feeding Point will be nearest
MDB/DB
Note: Cable Qty as per actual site layout
GRAND TOTAL PRICE BDT
2 TECHNICAL SPECIFICATIONS AS PER MANUFACTURER
Note: As the LT Panel location is not defined clearly so exact location should be assessed by physical survey to determine the exact required length of the AC Cable.
Paramount Agro Grid-Tied Rooftop Solar PV System Project
( Sub-Station + Chemical + Lab) Building
Location: Faugan, Gazipur, Bangladesh
BOQ FOR 106.82 kWp ROOFTOP SOLAR ON-GRID SYSTEM
Unit Price
Sl Items Description Quantity Unit Total Price (BDT)
(BDT)
Solar PV Module
Brand: JA Solar /Trina Solar/Jinko/Longi /Tiger Neo (TIER 1 Listed) (545
Wp) (N-type)(Bi-facial)
Module Efficiency: 22.2%
1 Solar PV Module Cell Materials: Mono 106820 Wp
Manufacturer Performance Warranty: 25 years
Manufacturer Workmanship Warranty : 12 Years
Country of Origin: China
Country of Manufacturing: China
Structure with all Necessary Accessories
Module Mounting
Type: C Channel With Hot Deep Galvanized
2 Structures 106820 Wp
Brand: Solar Rack/Antai/Equivalent
(MS structure HDG)
Warranty:10 years
Solar Inverter: Brand: Huawei/Equivalent
Solar Grid Model: As per Manufacturer
connected Inverter MPPT: 2 Nos
5 10 Nos
with SPD & Fuse Protection Class: IP 66
(15 kW) Manufacturer Warranty: 5 years
Country of Origin: China
Online Monitoring:
Dongle Model : As per Manufacturer
6 Monitoring Warranty : 1 Year 3 Nos
Brand: Huawei/Equivalent
Origin : China
PV Type UV protective Electron Beamed Cable:
6mm2, 1500V,, DC Cable (Copper Cable)
PV Type UV protective Cable
As per Latest IEC Standard Specifications
DC Cable and
7 TUV CERTIFICATE FOR 1500V DC CABLE 106820 Wp
Connectors
Model: As per Manufacturer
Brand: Forign/Local Reputed Brand
Note: Cable Qty as per actual site layout
Accessories of
8 Mounting Kit, TS4 Connectors etc 3 Nos
Inverter
Energy Meter:
C.T. Type meter, C.T., 400VAC, Three phase,
3 Phase Energy Ethernet Communication Enabled
9 3 Nos
Meter Warranty: 2 Years
Class: 1
Brand: ABB/Siemens(EU)/Equivalent
AC Combiner Box: Customized
Parts Brand: ABB/Siemens/Equivalent,
Country of Origin (Parts): Cheque Republic/ Italy
10 Combiner Box 3 Lot
Box Material - Maximum 18 Gauge Steel,
All Busbar with pure Copper, copper
Assembly:
Transportation,
11 Transportation, Installation & Others. 1 Lot
Installation, Others.
1X3C 20rm XLPE AC CU Cable (0.6/1 kV) (Inverter to ACDB)
As per Latest IEC Standard Specifications
Brand: Foreign/Local Reputed Brand
12 AC Cable Accessories: Cable Lug, Cable Shoe, PVC Pipe etc. and Connectors 1 Lot
Country of Origin:
** For AC Cable Feeding Point will be nearest MDB/DB
Note: Cable Qty as per actual site layout
Pipeline for water network, As per the design, Delivery Pipe, Hi-
Cleaning speed nosel, pressure pump(if required)
13 3 Lot
Mechanism Country of Origin: Bangladesh
Water source will be from the top floor.
14 Earthing Earthing: For AC DB, Inverter and Solar array grounding 3 Lot
15 Cable Tray Aluminium Cable Tarys for AC & DC Cable 3 Lot
Total (Excluding VAT, TAX as per NBR Policy): BDT BDT
VAT: 0% BDT
Total (Including VAT, TAX as per NBR Policy): BDT BDT
Cost Per Watt peak BDT
