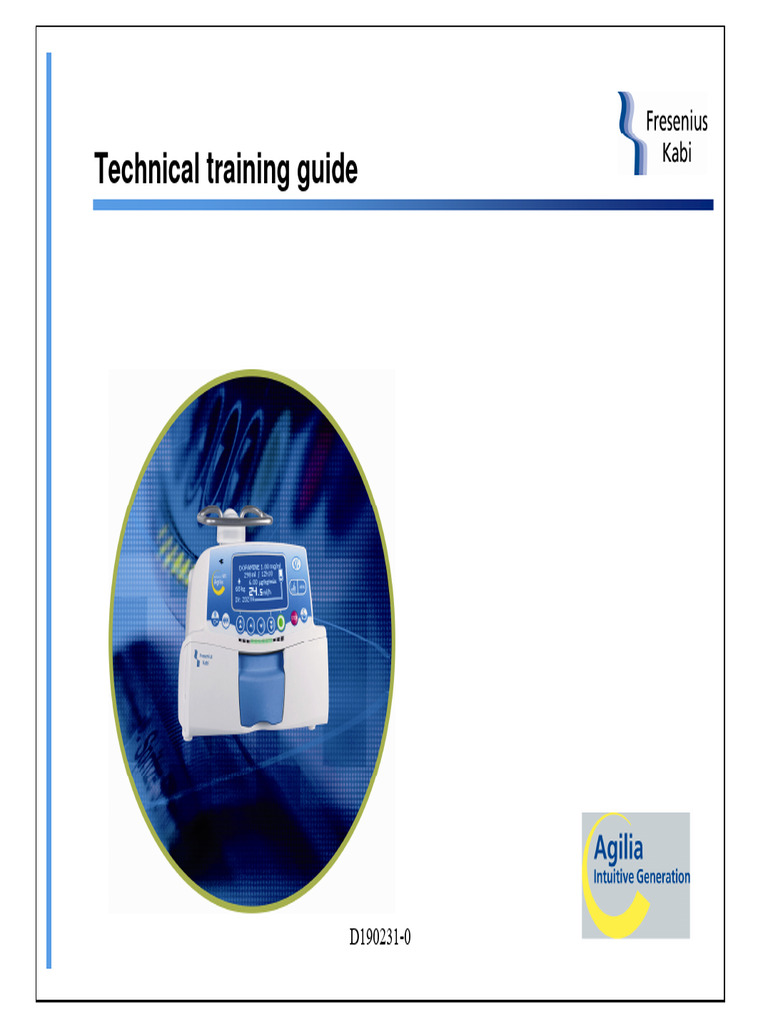

Technical training guide

D190231-0
Training program for

Volumat Agilia

 Presentation

 Usage exercise

 Safety features

 Disassembling procedures

 Tests and Calibration

 Kits presentation

D190231-0
Training program for

Partner Agilia service software

 Connecting a device

 Performing a complete configuration

 Calibration

 Detailed history reading

 Other functions

D190231-0
Introduction

Volumat Agilia / Volumat MC Agilia:

 Up to 1500 events are recorded

 A large display for "at a glance“ monitoring

 Compatible with Vigilant central infusion monitoring

 Internal battery 2.2Ah / 7.4 Volt ( LI-ion )


8 hours autonomy at 125 ml/h
 External power 9 Volt CC, power 15 Watt

 Swing lock pole / rail clamp

D190231-0
Front panel

D190231-0
General view

D190231-0
Front housing

3 Safety features
 Medium position calibration of the door, to detect
in minimum distance if the door is open or closed
to avoid a free flow.

 A OCS “ Occlusivity Control System” when the


pump is used without a drop detector, the system
starts to detect if the pump is occlusive or not
before running the infusion procedure and avoid
any free flow.

 A dedicated set including an automatic clamp


driven by a specific motor to open or close clamp
when it removed from the pump. To avoid a free
flow.
D190231-0
Volumat Agilia start up

 Auto-test

 OCS system starts

 The programming mode displays

 Confirmation or modification of infusion mode


 Without Drop detector => Volume limit / Time limit are mandatory
 With Drop detector => limit volume or time are not mandatory
 Press bolus key to prime the line if this option is
activated

 Validate the selection to start the infusion

D190231-0
OCS System

Tube clamp

Mobile clamp zone A

Mobile
clamp zone
D

OCS finger pressure


zone

Mobile clamp
zone C

Mobile clamp
α° zone B

D190231-0
OCS System

Motor clamp design

D190231-0
OCS System

Obturator / sensors
Two Optical switches identifies 4 positions for the OCS finger

D190231-0
OCS System

Position 1: Clamp absent

 The linear actuator is back to its maximum


 The fixed mechanical part is back to its maximum (position 0)
 The mobile mechanical part is on position 1
 The OCS finger is out the housing for 2 mm

No clamp, position 1 : state opto1 = 0, state opto2 = 1

The presence and the absence of the clamp should be detected

D190231-0
OCS System
Position 0: Clamp present and closed
 The linear actuator is back to its maximum
 The fixed mechanical part is back to its maximum (position 0)
 The mobile mechanical part is also back to its maximum ( position 0)
 The OCS finger in the limit surface of the housing
Clamp detected and closed, position 0 : state opto1 = 1, state opto2 = 1
The presence and the absence of the clamp should be detected
Closing angle α° should permit to detect that the clamp is in the close position (with the
OCS finger). α°

D190231-0
OCS System
Position 3: Clamp open, OCS finger out of the housing at its maximum
 The linear actuator is out at its maximum
 The fixed mechanical part is out to its maximum (position 3)
 The mobile mechanical part is also out to its maximum ( position 3)
Clamp open, finger left to the maximum, position 3: state opto1 = 1,
state opto2 = 0

D190231-0
OCS System
Position 2: Finger in intermediary position
 The linear actuator is in intermediary position
 The fixed mechanical part is in intermediary position (position 2)
 The mobile mechanical part is also in intermediary (position 2)

Clamp open, finger in intermediary position; position 2: state opto1 = 0,


state opto2 = 0

D190231-0
OCS System

Clamp damage
 The linear actuator is in unknown position
 The fixed mechanical part is in unknown position
 The mobile mechanical part is in the back to its maximum (position 0)

Blown mechanical fuse: state opto1 = 1,state opto2 = 1


The OCS electro-mechanical mechanism system fails when closing and opening the door, That should not
damage the tube or the device

D190231-0
OCS System

Summary

Optical switch status according the actuator position

OCS System Position Optical switch 1 status Optical switch 2 status

Clamp present and 0 1 1


closed

Clamp absent 1 0 1

Finger in intermediary 2 0 0
position

Clamp open, OCS finger 3 1 0


out of the housing at its
maximum

Damage clamp 0 1 1

D190231-0
OCS System

Actuator position according to the OCS system function

Position W/O clamp With clamp With clamp OCS Sequences


Before OCS After OCS
starts
0 X

1 X X

2  ±

3 °

D190231-0
Pumping system

D190231-0
Air bubble detector

D190231-0
Pump rework
Modification Version Reasons Old part New part Starting since s/n:
number number
All except:
19830250 => 19830253
19830255 => 19830259
Soft CPU / power 19830261 => 19830268
1.1a / 1.2a 19830270
supply
19830272
19830274
19860340 => 19860343

Soft CPU OCS failure + the membrane


material could be damaged in
1.1c contact with the silicone
20103343
tube.
A drift of the pressure on
upstream and downstream
Door lever with over ???? 20042276 => 20042287
moulded magnet 20042714 => 20042714
20134572
Air bubble board Gain improvement of the 179004 179004
20012133
sensor
Membrane (1) OCS failure: New membrane 179055 179069 20227436

(1) More details concerning this modification is available on the product Maintenance
protocol PM0194:
Soft rework to 1.1e with a replacement of the membrane

D190231-0
Disassembling procedure

D190231-0
Disassembling procedure

Remark : Disconnect the battery before starting any


disassembling procedure.
• Unscrew the 2 fixing screws ( marker 1) holding the battery cover
• Remove the battery cover ( marker 2 ).

D190231-0
Disassembling procedure

Disconnect J4 and disconnect the battery ( marker 3).

D190231-0
Disassembling procedure

Turn the device upside down.


Unscrew the 3 Torx screws ( marker 1) and remove them.

D190231-0
Disassembling procedure

Remove the angle bracket( marker 2) being careful not to


pull the CPU board flat cable.
Disconnect the flat cable connecting the CPU board to the
power supply board at J1.

D190231-0
Disassembling procedure

Remove the RJ45 cap (marker 3).


Unscrew the 2 screws (marker4) holding the upper case
(marker 5) to the base.

D190231-0
Disassembling procedure

Remove the Upper case (marker 5)


Disconnect the flat cable connecting the CPU Board and the
display board

D190231-0
Disassembling procedure

Disconnect the flat cable connected to the CPU board on J2


and J13

D190231-0
Disassembling procedure

Disconnect the flat cable connected to the CPU board on J7,


J3 and J10

D190231-0
Disassembling procedure

Disconnect the flat cable connected to the CPU board on J4,


and J12

D190231-0
Disassembling procedure

Disconnect the flat cable connected to the CPU board on J1.


Remove the whole CPU board being careful to pull the flat
cable inside.

D190231-0
Disassembling procedure

Unscrew the button screw (marker 7) and pull it out. Push


the button and turn it to the left and remove it.
Pull out the spring.
Unscrew the screw (marker 8) holding the left flange.

D190231-0
Disassembling procedure

Pivot the device on its front.


Unscrew the Torx screw (marker 9) positioned on the base.
Remove the pumping plate (marker 10).
Unscrew the screw (marker 11) positioned under the base.

D190231-0
Disassembling procedure

Remove the left flange (marker 12)

D190231-0
Disassembling procedure

Remove the pumping system

D190231-0
Disassembling procedure

Unscrew the upstream and downstream sensor screws


(marker 13 and 14)

D190231-0
Disassembling procedure

Pull out the sensors

D190231-0
Disassembling procedure

Unscrew the 2 screws (marker 6) of the air detector


board (marker 7)

D190231-0
Disassembling procedure

Remove the board being careful not to pull the flat cable.
Disconnect the flat cable connected to the board at

D190231-0
Disassembling procedure

Unscrew the 2 fixing screws (marker 6) holding the


motor clamp to the right flange

D190231-0
Disassembling procedure

Using a small screwdriver, apply a light pressure in


order to disengage the motor positioning spigot
(marker 7)

D190231-0
Reassembling procedure

Perform the reassembling procedure

D190231-0
Service test

D190231-0
Calibration procedure

D190231-0
Calibration procedure

ScreenCap.exe.lnk

D190231-0
Partner Agilia maintenance software
