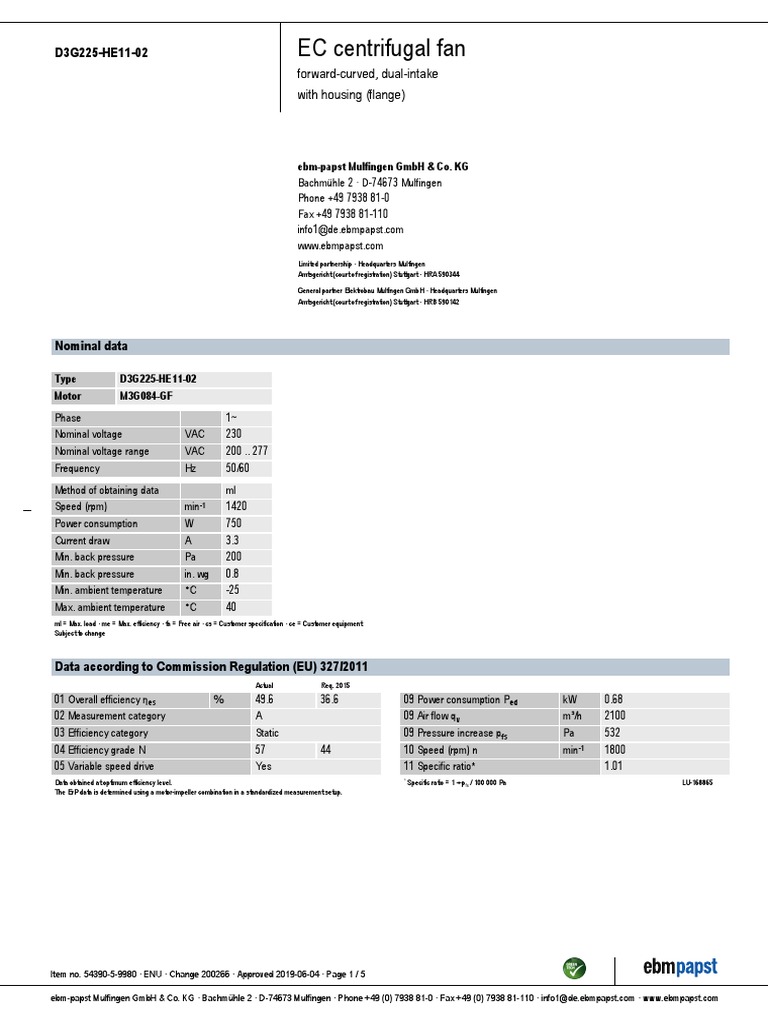

D3G225-HE11-02 EC centrifugal fan
forward-curved, dual-intake
with housing (flange)
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2 · D-74673 Mulfingen
Phone +49 7938 81-0
Fax +49 7938 81-110
[email protected] www.ebmpapst.com
Limited partnership · Headquarters Mulfingen
Amtsgericht (court of registration) Stuttgart · HRA 590344
General partner Elektrobau Mulfingen GmbH · Headquarters Mulfingen
Amtsgericht (court of registration) Stuttgart · HRB 590142
Nominal data
Type D3G225-HE11-02
Motor M3G084-GF
Phase 1~
Nominal voltage VAC 230
Nominal voltage range VAC 200 .. 277
Frequency Hz 50/60
Method of obtaining data ml
Speed (rpm) min-1 1420
Power consumption W 750
Current draw A 3.3
Min. back pressure Pa 200
Min. back pressure in. wg 0.8
Min. ambient temperature °C -25
Max. ambient temperature °C 40
ml = Max. load · me = Max. efficiency · fa = Free air · cs = Customer specification · ce = Customer equipment
Subject to change
Data according to Commission Regulation (EU) 327/2011
Actual Req. 2015
01 Overall efficiency ηes % 49.6 36.6 09 Power consumption Ped kW 0.68
02 Measurement category A 09 Air flow qv m³/h 2100
03 Efficiency category Static 09 Pressure increase pfs Pa 532
04 Efficiency grade N 57 44 10 Speed (rpm) n min-1 1800
05 Variable speed drive Yes 11 Specific ratio* 1.01
*
Data obtained at optimum efficiency level. Specific ratio = 1 + pfs / 100 000 Pa LU-168865
The ErP data is determined using a motor-impeller combination in a standardized measurement setup.
Item no. 54390-5-9980 · ENU · Change 200266 · Approved 2019-06-04 · Page 1 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · [email protected] · www.ebmpapst.com
D3G225-HE11-02 EC centrifugal fan
forward-curved, dual-intake
with housing (flange)
Technical description
Weight 12.5 kg
Size 225 mm
Motor size 84
Rotor surface Painted black
Impeller material Sheet steel, galvanized
Housing material Sheet steel, galvanized
Motor suspension Motor mounted on brackets for one-sided vibration damping
Direction of rotation Counterclockwise, viewed toward rotor
Degree of protection IP54
Insulation class "F"
Moisture (F) / Environmental (H) H1
protection class
Max. permitted ambient temp. +85 °C
for motor (transport/storage)
Min. permitted ambient temp. for -40 °C
motor (transport/storage)
Installation position Shaft horizontal
Condensation drainage holes On rotor side
Mode S1
Motor bearing Ball bearing
Technical features - Output 10 VDC, max. 10 mA
- Operation and alarm display
- Tach output
- Alarm relay
- Integrated PID controller
- Power limiter
- Motor current limitation
- PFC, active
- RS-485 MODBUS-RTU
- Soft start
- Control input 0-10 VDC / PWM
- Control interface with SELV potential safely disconnected from the mains
- Thermal overload protection for electronics/motor
- Line undervoltage / phase failure detection
EMC immunity to interference According to EN 61000-6-2 (industrial environment)
EMC circuit feedback According to EN 61000-3-2/3
EMC interference emission According to EN 61000-6-3 (household environment)
Touch current according to IEC <= 3.5 mA
60990 (measuring circuit Fig. 4,
TN system)
Electrical hookup Plug
Motor protection Thermal overload protector (TOP) internally connected
With cable Variable
Pollution degree 2
Protection class I (with customer connection of protective earth)
Conformity with standards EN 60335-1; EN 61800-5-1; CE
Item no. 54390-5-9980 · ENU · Change 200266 · Approved 2019-06-04 · Page 2 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · [email protected] · www.ebmpapst.com
D3G225-HE11-02 EC centrifugal fan
forward-curved, dual-intake
with housing (flange)
Product drawing
1 Terminal 1
1.1 PE
1.2 L
1.3 N
1.4 NC
1.5 COM
2 Terminal 2
2.1 0-10 V
2.2 +10 V
2.3 GND
2.4 RSA
2.5 RSB
2.6 Tach
3 Tightening torque 3 ± 0.5 Nm
4 Cable diameter min. 6 mm, max. 10 mm, tightening torque 1.8±0.3 Nm
Cable diameter min. 8 mm, max. 12 mm, tightening torque 1.8±0.3 Nm (use must be made of seal provided)
Item no. 54390-5-9980 · ENU · Change 200266 · Approved 2019-06-04 · Page 3 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · [email protected] · www.ebmpapst.com
D3G225-HE11-02 EC centrifugal fan
forward-curved, dual-intake
with housing (flange)
Connection diagram
No. Conn. Designation Function/assignment
KL1 1 PE Protective earth
KL2 2 L Power supply, phase, 50/60 Hz
KL2 3 N Power supply, neutral conductor, 50/60 Hz
KL2 4 NC Status relay, floating status contact, break for failure, contact rating 250 VAC/2 A (AC1) min. 10 mA,
basic insulation on supply side and reinforced insulation on control interface side
KL2 5 COM Status relay, floating status contact, common connection, contact rating 250 VAC / 2 A (AC1) / min. 10
mA; basic insulation on supply side and reinforced insulation on control interface side
KL3 1 0-10 V Analog input (set value), 0-10 V, Ri = 100 kΩ, adjustable curve, SELV
KL3 2 +10 V Fixed voltage output 10 VDC, SELV
KL3 3 GND Reference ground for control interface, SELV
KL3 4 RSA RS485 interface for MODBUS, RSA; SELV
KL3 5 RSB RS485 interface for MODBUS, RSB; SELV
KL3 6 Tacho Tach output, open collector, 1 pulse per revolution, Isink max = 10 mA, SELV
Item no. 54390-5-9980 · ENU · Change 200266 · Approved 2019-06-04 · Page 4 / 5
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone +49 (0) 7938 81-0 · Fax +49 (0) 7938 81-110 · [email protected] · www.ebmpapst.com
D3G225-HE11-02 EC centrifugal fan
forward-curved, dual-intake
with housing (flange)
Curves: Air performance 50 Hz
in wg
Pa
700
ρ = 1.15 kg/m³ ± 2 %
2.5
600
Measurement: LU-168865-1
Air performance measured according to ISO
4 5801 installation category A. For detailed
500 information on the measurement setup,
2
contact ebm-papst. Intake sound level:
Sound power level according to ISO 13347 /
sound pressure level measured at 1 m
distance from fan axis. The values given are
3 valid under the specified measuring
400 conditions and may vary due to conditions of
installation. For deviations from the standard
1.5
configuration, the parameters have to be
checked on the installed unit.
8 2
300 7
6
1
200 51
12 11
10
0.5
100 9
0 400 800 1200 1600 cfm
Pfs
qv 500 1000 1500 2000 2500 3000 m³/h
Measured values
Wired U f n Ped I LpAin LwAin qV pfs qV pfs
V Hz min-1 W A dB(A) dB(A) m3/h Pa cfm in. wg
1 Y 230 50 1420 750 3.30 67 80 3275 200 1930 0.80
2 Y 230 50 1550 750 3.30 67 79 2925 320 1720 1.28
3 Y 230 50 1665 750 3.30 67 79 2625 420 1545 1.69
4 Y 230 50 1785 713 3.13 67 79 2205 520 1295 2.09
5 Y 230 50 1400 737 3.23 67 80 3225 197 1900 0.79
6 Y 230 50 1400 557 2.44 64 76 2640 261 1555 1.05
7 Y 230 50 1400 450 1.97 63 75 2205 299 1295 1.20
8 Y 230 50 1400 343 1.51 61 73 1725 319 1015 1.28
9 Y 230 50 1000 269 1.18 58 71 2305 100 1355 0.40
10 Y 230 50 1000 203 0.89 55 68 1885 133 1110 0.53
11 Y 230 50 1000 164 0.72 54 66 1575 152 925 0.61
12 Y 230 50 1000 125 0.55 52 64 1235 163 725 0.65
Wired = Wiring · U = Voltage · f = Frequency · n = Speed (rpm) · Ped = Power consumption · I = Current draw · LpAin = Sound pressure level intake side · LwAin = Sound power level intake side
qV = Air flow · pfs = Pressure increase
