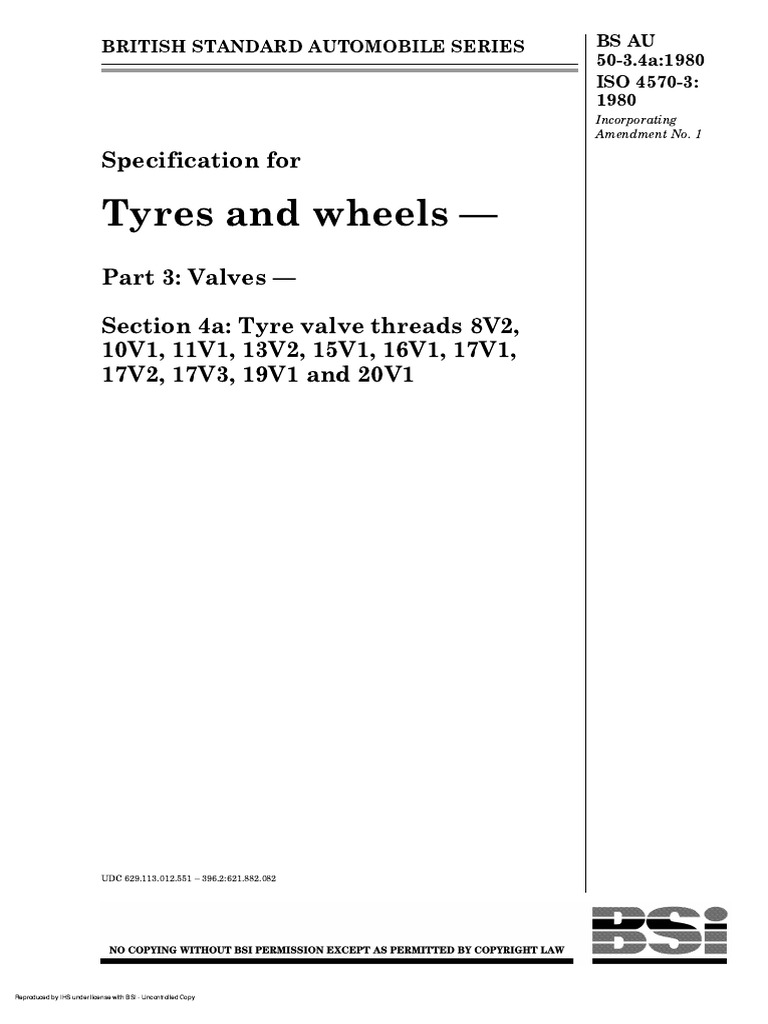

BS AU

BRITIS H S TAND ARD AUTO MO BILE S E RIE S

5 0 -3 . 4 a: 1 980

IS O 4 5 70 -3 :

1 980

Incorp orating

Am endm ent No. 1

Specification for

Tyres and wheels —

Part 3 : Valves —

Section 4 a: Tyre valve threads 8V2 ,

1 0 V1 , 1 1 V1 , 1 3 V2 , 1 5 V1 , 1 6V1 , 1 7V1 ,

1 7V2 , 1 7V3 , 1 9V1 and 2 0 V1

UD C 62 9 . 1 1 3 . 0 1 2 . 5 5 1 – 3 9 6. 2 : 62 1 . 882 . 0 82

Reprodu ced by I H S u n d er l i cen se wi th BSI - U n con trol l ed Copy

 BS AU 5 0-3.4a:1 980

This Britis h S tandard, having

b een p rep ared under the

direction of the Automob ile

S tandards C ommittee, was

p ub lis hed under the authority

of the E xecutive Board and Amendments issued since publication

comes into effect on

2 9 Augus t 1 980
Amd. No. D ate of is s ue C omments

© BS I 0 2 - 2 0 00
41 2 2 Novemb er Indicated b y a s ideline in the margin

1 982

The following BS I references

relate to the work on this

s tandard:

C omm ittee reference AUE /4

D raft for com ment 7 9/72 7 87 D C

ISBN 0 5 80 1 1 5 74 7

Reprodu ced by I H S u n d er l i cen se wi th BSI - U n con trol l ed Copy

 BS AU 5 0-3.4a:1 980

Contents

Page

National foreword ii

1 Scope and field of application 1

2 References 1

3 D esignation 1

4 Profile 2

5 Thread gauging 2

Tab le 1 — D esignation 1

Tab le 2 — Limit dimensions 2

Tab le 2 — Limiting dimensions 3

© BSI 02 - 2 000 i
Reprodu ced by I H S u n d er l i cen se wi th BSI - U n con trol l ed Copy
 BS AU 5 0-3.4a:1 980

National foreword

This Section of this Part of BS AU 50, prepared under the direction of the
Automobile Standards Committee, is identical with ISO 4570- 3: 1 980 “Tyre v alv e

threads — Part 3: Threads 8V2, 1 0V1 , 1 1 V1 , 1 3V2, 1 5V1 , 1 6V1 , 1 7V1 , 1 7V2,

1 7V3, 1 9V1 , 20V1 ” published by the International Organization for

Standardization (ISO). Sections 1 , 2 and 3 of this Part deal with valve
dimensions. Other Parts of the standard are:

— Part 1 : Tyres;

— Part 2: Wheels and rim s.

ISO 4570- 3: 1 980 (E)/Erratum was implemented as Amendment No. 1 to this

standard.

Terminology and conventions. The text of the International Standard has

been approved as suitable for publication, without deviation, as a
British Standard. Some terminology and certain conventions are not identical
with those used in British Standards; attention is especially drawn to the
following.

Where the words “International Standard” appear, referring to this standard,

they should be read as “British Standard”.

The comma has been used throughout as a decimal marker. In British Standards
it is current practice to use a full point on the baseline as the decimal marker.

Cross-reference

International Standard C orresponding British Standard

ISO 1 502: 1 978 BS 91 9 Screw gauge lim its and tolerances

Part 3: 1 968 Gauges for ISO m etric screw threads

(Technically equivalent)

The corresponding British Standard for ANSI Standard B1 . 2 is BS 91 9 “Screw

gauge lim its and tolerances ” Part 4: 1 964 “Lim its of size fo r gauges for screw

threads o f Unified form , diam eters ! in and larger ”. It is technically equivalent

to the ANSI Standard.

A British Standard does not purport to include all the necessary provisions of a
contract. Users of British Standards are responsible for their correct application.

Compliance with a British Standard does not of itself confer immunity

from legal obligations.

Summary of pages

This document comprises a front cover, an inside front cover, pages i and ii,
pages 1 to 3 and a back cover.

This standard has been updated (see copyright date) and may have had
amendments incorporated. This will be indicated in the amendment table on the
inside front cover.

© BSI 02- 2000

ii
Reprodu ced by I H S u n d er l i cen se wi th BSI - U n con trol l ed Copy
 BS AU 5 0 -3 . 4a: 1 980

1 Scop e and field of application

This International S tandard s p ecifies limit dimensions and tolerances for tyre valve

threads 8V2 , 1 0 V1 , 1 1 V1 , 1 3 V2 , 1 5 V1 , 1 6V1 , 1 7 V1 , 1 7V2 , 1 7 V3 , 1 9V1 et 2 0 V1 .

2 References

IS O 1 5 02 , ISO general p urp ose m etric threads — Gauging.

ANS I B1 . 2 , Gauges and gauging for unified inch s crew threads.

3 D esignation

The des ignations s hall b e as given in Tab le 1 .

Tab le 1 — D e signation

Nominal dime nsion, m m D e signation

7, 9 × 1 , 05 8 8V2

9, 6 × 1 , 00 1 0 V1

11,1 × 1 , 270 1 1 V1

12,7 × 0, 79 4 1 3 V2

15 × 1 , 00 1 5 V1

1 5, 8 × 0, 941 1 6V1

17 × 1 , 00 1 7 V1

1 7, 5 × 1 , 05 8 1 7 V2

1 7, 5 × 1 , 5 88 1 7 V3

19 × 1 , 5 88 1 9 V1

20, 5 × 1 , 00 2 0 V1

© BS I 0 2 - 2 00 0 1

Reprodu ced by I H S u n d er l i cen se wi th BSI - U n con trol l ed Copy

 BS AU 5 0-3.4a:1 980

4 Profile

Table 2 — Limit dimensions (see Table 2)

5 Thread gauging

5 .1 Threads 1 0V1 , 1 5V1 , 1 7V1 and 20V1 should be verified according to the specifications given below.

The minimum and maximum values have been calculated to make it possible to apply the limit gauge
inspection principles specified in ISO 1 502 to the threads 1 0V1 , 1 5V1 , 1 7V1 and 20V1 .

For the elaboration of the gauges, the following tolerances extracted from ISO 1 502 have been chosen:

— pitch diameter of external thread (d) 2 24 4m < Td 2

< 50 4m
— outside diameter of external thread (d) 36 4m < T d < 85 4m

— pitch diameter of internal thread (D ) 2

24 T
4m < D2 < 50 4m
— inside diameter of internal thread (D ) 1
38 4m < T D1 < 1 00 4m
5 .2 Threads 8V2, 1 1 V1 , 1 3V2, 1 6V1 , 1 7V2, 1 7V3, 1 9V1 , should be verified according ANSI B1 . 2.

© BSI 02- 2000

2
Reprodu ced by I H S u n d er l i cen se wi th BSI - U n con trol l ed Copy
 Table 2 — Limiting dimensions

D imens ions in m illimetres

Screw Nut

© BS I 0 2 - 2 00 0
Maj or diameter Pitch diameter Minor Maj or Pitch diameter Minor diameter
Nominal
diameter diameter
dimensions
Designation
2 1 2 1
D iameter
d d d D D D
× p itch
Tolerance Tolerance Tolerance Tolerance

max. min. max. min. max. min. max. min. m ax. min.
d D D
T d
T 2
T 2
T 1

8V2 7, 9 × 1 , 058 7 , 909 0, 1 82 7, 7 2 7 7, 2 2 1 0 , 09 3 7, 1 2 8 6, 61 1 7, 9 3 8 7, 3 71 0, 1 2 1 7, 2 5 0 7, 0 3 5 0, 2 5 3 6, 782

1 0V1 9, 6 × 1 , 00 9 , 65 0 0, 1 00 9, 5 5 0 9, 3 1 0 0, 1 00 9, 21 0 8, 5 5 2 9, 800 9, 480 0, 1 00 9, 3 80 8, 9 00 0, 1 5 0 8, 75 0

1 1 V1 11,1 × 1 , 270 1 1 , 07 9 0, 2 05 1 0 , 874 1 0, 2 54 0, 1 07 1 0 , 1 47 9, 5 2 2 11,113 1 0, 42 4 0, 1 37 1 0, 2 87 1 0, 033 0, 3 04 9, 72 9

1 3 V2 12,7 × 0, 79 4 1 2 , 67 4 0, 1 5 1 1 2, 523 1 2 , 1 59 0 , 089 1 2 , 070 1 1 , 7 01 1 2 , 7 00 1 2 , 2 98 0, 1 1 3 1 2 , 1 85 1 2 , 039 0, 2 02 1 1 , 83 7

1 5 V1 15 × 1 , 00 1 4, 90 0 0, 1 05 1 4, 7 95 1 4, 3 1 0 0, 1 05 1 4, 2 05 1 3, 552 1 5, 1 37 1 4, 485 0, 1 05 1 4, 3 80 1 3, 950 0, 2 00 1 3 , 75 0

1 6V1 1 5, 8 × 0, 941 1 5 , 847 0, 1 70 1 5 , 677 1 5, 2 35 0 , 09 7 1 5, 1 38 1 4, 694 1 5 , 875 1 5 , 3 89 0, 1 2 6 1 5 , 2 63 1 5 , 0 88 0, 2 2 9 1 4, 85 9

1 7V1 17 × 1 , 00 1 6, 90 0 0, 1 05 1 6, 7 95 1 6, 3 1 0 0, 1 05 1 6, 2 05 1 5, 552 1 7, 1 37 1 6, 485 0, 1 05 1 6, 3 80 1 5, 950 0, 2 00 1 5 , 75 0

1 7V2 1 7, 5 × 1 , 05 8 1 7, 43 2 0, 1 82 1 7, 2 50 1 6, 7 43 0, 1 00 1 6, 643 1 6, 1 3 4 1 7 , 463 1 6, 906 0, 1 31 1 6, 7 75 1 6, 5 60 0, 2 5 3 1 6, 3 0 7

1 7V3 1 7, 5 × 1 , 5 88 1 7, 42 6 0, 2 3 7 1 7 , 1 89 1 6, 3 95 0, 1 2 1 1 6, 2 74 1 5 , 478 1 7 , 463 1 6, 5 88 0, 1 56 1 6, 43 2 1 6, 1 03 0, 3 5 5 1 5 , 748

1 9V1 19 × 1 , 5 88 1 9, 01 1 0, 2 3 7 1 8, 7 74 1 7 , 9 80 0, 1 2 6 1 7 , 85 4 1 7 , 0 63 1 9, 050 1 8, 1 83 0 , 1 64 1 8, 0 1 9 1 7 , 678 0, 3 5 5 1 7, 3 2 3

2 0V1 20, 5 × 1 , 00 2 0, 40 0 0, 1 1 0 2 0 , 2 90 1 9 , 81 0 0, 1 1 0 1 9 , 700 1 9, 052 2 0 , 642 1 9, 995 0, 1 1 0 1 9, 885 1 9 , 45 0 0, 2 00 1 9, 2 5 0

BS AU 50-3.4a:1 980

3
